To who cares. pix of what im doin.. just new thread



Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1583
Registered: Jun-07
i put the subs in with just a few screws to make sure my front baffle would fit over them ok.

front baffle
Upload

with out front baffle
Upload

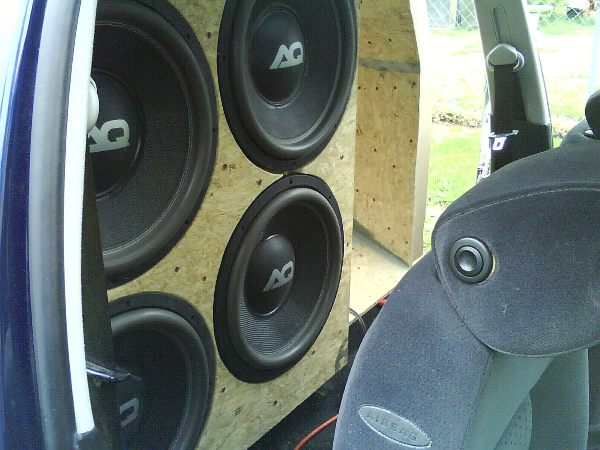

wit front baffle on
Upload


so its 3 layers thick now. i am going to make one more layer that goes on the inside. and im also thinking about doing an other one over the front baffle i just made. idk if that would look cool or stupid


Bronze Member
Username: Mpinto19k

Dallas/Fort Hood, Tx

Post Number: 97
Registered: Feb-09
Looks loud!

Looking good though.


Bronze Member
Username: Andrew35

Post Number: 26
Registered: Oct-08
that looks pretty awesome as of now


Silver Member
Username: Prozack52

Cincinnati, 2-audio puls...

Post Number: 526
Registered: Feb-08
sex to the face!!!!


Gold Member
Username: Drant19

DUB-C, TX

Post Number: 1549
Registered: Aug-07
BLK,

nice job man really!! you got the motivation and seems like you got the right idea goin for ya.

whats you front stage consist of?


Gold Member
Username: Goodie_goop

Mid town, Texas U.S.

Post Number: 1157
Registered: Oct-06
I don't know about you but having the subs spaced different amounts from each other would bug the sh!t out of me...like how you had to cut in one place because they are so close then left the other...I can't stop looking at the picture and its driving me crazy


Gold Member
Username: Drant19

DUB-C, TX

Post Number: 1550
Registered: Aug-07
^X2

lol goodie, i noticed that too!


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1587
Registered: Jun-07
hahaha. i really thought i was going to have to cut all the places like that! haha
if u really want when i go over it with the fiberglass ill make it look like it goes all threw.

up front i got a nine 2x amp powering some 6.5 M6s for the mids and aluminum cdt tweeters for my highs


Gold Member
Username: Jkidder

Worlds gunna end, In 2012

Post Number: 4055
Registered: Nov-05
sick man!!!

nice frontstage too.


Gold Member
Username: Goodie_goop

Mid town, Texas U.S.

Post Number: 1159
Registered: Oct-06
please do


Platinum Member
Username: Rovin

1 15 = 149.5 DBs ...Trinidad & T...

Post Number: 14906
Registered: Jul-05
i think ur making a damn good effort ...


Gold Member
Username: Big_edge_head

Milwaukee, WI

Post Number: 3787
Registered: Mar-07
Looks good.


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 3089
Registered: May-07
I don't see a problem with the offset sub placement.. I see what you are talking about, but they are not just individually or randomly spaced.. It is just 2 subs slightly offset from the other two... Looking good thus far. 155.6 still my guess on that power and that is IF you get it all just right. good luck on the goal.


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 3090
Registered: May-07
are you doing any threaded rod?


Gold Member
Username: Jkidder

Worlds gunna end, In 2012

Post Number: 4057
Registered: Nov-05
what amps and imp. also charging. ill make a guess once i get the real info. also what frequency will yoube burping at and what type of vehicle is that.


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 3092
Registered: May-07
IIRC 2-1750's strapped @ 2 ohm
200 amp alt. a few kenitics . again this is coming from my memory.

VW Golf.


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 6434
Registered: Nov-05
why at 2 ohm :-)


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 3093
Registered: May-07
lol i'm strictly guessing since he has 2- 1750 and 4- dual 4 ohm subs.


Gold Member
Username: Basebalz13

Moneta, Va Usa

Post Number: 1476
Registered: Aug-07
ummm, i still dont see a 155+ on 4000 rms...

how ever he does have some cone area


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 6435
Registered: Nov-05
hmmmm


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 6436
Registered: Nov-05
can you say .25ohm per amp fur a burp :-)


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 3094
Registered: May-07
trying to figure out how to get 2 dvc 4 ohm subs below 1 ohm per amp.... explain or send a diagram... thanks...


Diamond Member
Username: Wingmanalive

Www.stainles... .ecrater.com

Post Number: 20348
Registered: Jun-06
Like I said b4. He's motivated.


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 6437
Registered: Nov-05
2? hes running 4..


Gold Member
Username: Basebalz13

Moneta, Va Usa

Post Number: 1477
Registered: Aug-07
each one wire down to 2 ohms each, then all 4 of those 2 ohms wire down to .5 total

.5 total load on 2 1750.1's strapped = .25 per amp :D


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 6438
Registered: Nov-05
:-)


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1592
Registered: Jun-07
for burps it will be .25 ohm!


this thing is going to have a lot of threaded rod going in for braces!
i have a few other pix i think ill post in a sec


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1593
Registered: Jun-07
Upload

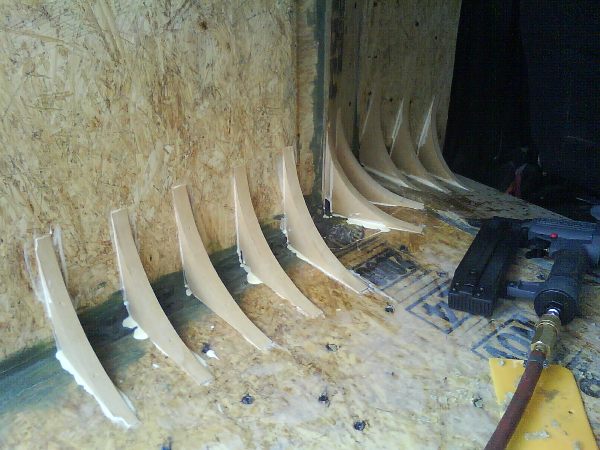

i am leaving those braces like that for now. i might add on to them later. we will see. i am running out of time

jk! u ask what hz ill burp at???? is there any way to even know what will be loudest? my last had a hit note of 50Hz and the box was tuned to 40Hz.

this wall is going to have a back baffle that slides back and forward so the volume of the box will change. i will also have 2 back baffles that are different shapes. so ill be able to change the volume and tuning to find what is loudest. plus! ill make a few ports so i can cut on that also. i have no idea what volume it will end up being or what it will be tuned too. less that 30 cuft and between 40 and 80 Hz???? thats my guess


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 3096
Registered: May-07
i get that you wire all sub vc in parallel to get .5.

I under stand that .25 ohm/amp equals .5 ohm strapped for burbs, but daily? i figured 2 ohm would be more sense able when not competing. But I see now that we were talking about JK guessing his score and that would be for the competition.



Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 3097
Registered: May-07
Sh!t, I need to hire dBLK to do my wall.. I guarantee that he will have putmore time and dedication in his. then I would if I did it all myself. Props


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2561
Registered: May-07
Looking good!


Gold Member
Username: Basebalz13

Moneta, Va Usa

Post Number: 1479
Registered: Aug-07
nice, ya got dedication...

now for the braces ya coulda gained more cubic foot with different style bracing...


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 6441
Registered: Nov-05
wow you went through all the trouble not even knowing your note first? fail :-(

should have been the first step..


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1595
Registered: Jun-07
ya... d money u might be right. i don't think i would make it any wider. maybe ill show u y with some pix but i don't want to explain it.

jack! what would be the point in finding out my hit note then building a 30cuft wall??? by the time i have all this in my car the not will not even be close to the same.


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1596
Registered: Jun-07
i do have a small problem. when i drive down the highway the top of the wall is moving back and forth about 1/8 inch. its not much but after i take time to seal it off i don't want it to come unsealed. i was thinking about taking some threaded rod going threw the box and screw into the back doors. i was also thinking about spraying that expanding foam between the doors and box. but i have never used expanding foam. that might just make everything a mess and get over everything.

any ideas?


Gold Member
Username: Hdubb

Team Revolution

Post Number: 4111
Registered: Nov-04
uif you use expanding foam, lay down like black trash bags (heavy duty) or carborad. something like that, that the expanding foam will stick too, seal, and be removable later, so you have no mess. if you box is swaying...i think id find out why its doing that, and fix the enclosure, instead of finding a quick fix.


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1599
Registered: Jun-07
its swaying so little that im not sure if it is a problem with how it sets. idk! ill check it out tomo!


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 6446
Registered: Nov-05
"
jack! what would be the point in finding out my hit note then building a 30cuft wall??? by the time i have all this in my car the not will not even be close to the same."

You never heard of the 1/4 wave have you :-)


Platinum Member
Username: Insearchofbass

Post Number: 11394
Registered: Jun-04
If I remember right those amps wired to .25 each is going to throw amp efficiency out the window but you have the battery bank to handle it.


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1601
Registered: Jun-07
"You never heard of the 1/4 wave have you"

yes i have. looked it up before i started. but i still don't understand y knowing my hit note before building would help. temp changes the wavlengh so it will change depending on the day. and like i said after building the wall the note will change. i don't think it is posible to find out what the best note will be before i build.
i know that a 50Hz note was like 28 feet at 70 degrees outside. so going off that i think my tuning should be around 55 to 60 Hz. which i will be changing my Hz for testing anyways

if im missing something please tell me.




sean...... i only have a pair of 800 kinetics......................... i have a good alt... but i might be in trouble in that area.. might be time to spend some more money


Gold Member
Username: Zacdavis

Beloit, Wi

Post Number: 1746
Registered: Dec-03
I like this thread:-)


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1606
Registered: Jun-07
ya... i go to work in about 6 hours... so today is my day to work on it... the only thing is its raining...... again! everyday i don't have school or work it rains!!!!!!! i have not got to work on it that last 3 days i have had free because of rain!!! i would be almost done by now! its driving my crazy


Bronze Member
Username: Lms

Post Number: 39
Registered: May-08
This thread inspires me to try an spl setup...

Great going Blk.


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1607
Registered: Jun-07
thanks every one! jack i really want to know what ur thinking with knowin the note before i build! i don't want to miss anything big! post post post!


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1608
Registered: Jun-07
thanks every one! jack i really want to know what ur thinking with knowin the note before i build! i don't want to miss anything big! post post post!


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1610
Registered: Jun-07
Upload
Upload
Upload


it has been raining all freakin day!!!! now i have mud all over in my car along with everything else. o well! hahaha. im waiting for this to dry then ill smooth the edges and start the fiberglass over it all.


Gold Member
Username: Big_edge_head

Milwaukee, WI

Post Number: 3792
Registered: Mar-07
Nice. Looks like there's been some changes to the forum.


Gold Member
Username: Hdubb

Team Revolution

Post Number: 4113
Registered: Nov-04
did you fill behind the cardboard with something? or plan on it. i know glassing it will add strength but also filling it will help


Silver Member
Username: Kingandsons07

TEAM REVOLUTION Lincoln,NE

Post Number: 530
Registered: Aug-08
i'm the one textin u lol


Gold Member
Username: Jkidder

Worlds gunna end, In 2012

Post Number: 4063
Registered: Nov-05
dblk, how far is your port from the windshield. go measure


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1612
Registered: Jun-07
i was going to just fiberglass 3 layers over it and not fill it.... i guess i could fill it with expanding foam... that crossed my mind but i didn't know if it was over kill. the wood is prrtty close togather


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1613
Registered: Jun-07
hey jk! its raining! i don't want to go out in the rain. i think its 3 inches. or something like that. but its about flush with the beam


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7426
Registered: Mar-04
I see about 15 things that are going to KILL your #'s.

A major one being all those fukt up angles in the box.


Who the hell did u say was helping you on this build?
Who told you to build it like this???


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1618
Registered: Jun-07
rick told me the angles. and lee said he didn't know what it would do if anything. jermy L told me to place the subs and port like this

15 things??? please make a list! and post it! if i agree with any of them ill change it now. and i would like to change now other than wait until its painted and looking pretty


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1619
Registered: Jun-07
canaan i think when u see what i have planned for my back baffle ur going to hate it more than anything....


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7427
Registered: Mar-04
-every joint in the box seems weak.
-not properly mounted to the vehicle (the wobble you were talking about).
-minimal to no actually cross-tied brasing (all braces seem independent, no support from each other)
-the 500 jagged corners will obstruct airflow
-3layer baffle actually has VERY little support, (look at getting some threaded rod at least)
-sloped floor at the base of the port side will make your tuning all nutty.
-particle board???


Should I go on?


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 6451
Registered: Nov-05
when it comes to a wall.. simple is better

structural support and simplicity is what you want


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1621
Registered: Jun-07
canaan-

how do my joints seem weak?
its mounted in the car very well.. or will be when i get that far,
im not done with my front baffle. it will be 4 layers thick with fiberglass and have many threaded rods for bracing.
ITS NOT PARTICLE BOARD! ITS ADVANTECH!

can u explain the corners? if it is what i am thinking about it is were i am rounding them off.

the sloped floor has had me wondering. if u saw the early pix of the build it was different. but i had to have one side sloped and the middle sloped some so the subs would fit.
do u think i should try to take the slop away? look at how my subs set and tell me what u think. i do konw that i should prolly do something about that.


canaan i don't mean to sound like i think i know everything. u have done a lot more walls than me! but i think everything u have said i already had planed to fix im just not that far into it yet. other than the front slop. what would u do on that part?


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1622
Registered: Jun-07
i see what u mean on the edges too i guess..
ill just glass over all that i guess............ i hate doing fiberglass


Gold Member
Username: Jkidder

Worlds gunna end, In 2012

Post Number: 4064
Registered: Nov-05
lmao your port is not 3 inchs from the windshield... unless your total body is only >3 inches in depth. skinny mofo


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1624
Registered: Jun-07
O my bad! i was thinking from the side window. i think its like 5 and a half feet. ill have to measure it again


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1660
Registered: Jun-07
it didn't rain today. i have had lots of home work. but i smoothed this out and got some foam in it

Upload


Gold Member
Username: Basebalz13

Moneta, Va Usa

Post Number: 1530
Registered: Aug-07
nice...

canaan dont even bother we have tried to explaining that this wall is not good but he will not listen...


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1662
Registered: Jun-07
i listen. but i don't understand whats not good other than the front angel


Gold Member
Username: Hdubb

Team Revolution

Post Number: 4114
Registered: Nov-04
yeah....those front angels....damn angels


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 3152
Registered: May-07
he is kinda too far too start over without even trying it..


Bronze Member
Username: Andrew35

Post Number: 29
Registered: Oct-08
good grief leave the man alone. he's doing something a lot of people could never do. PROPS DUDE


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1667
Registered: Jun-07
i have to ask! have any of u actually tried angels like this??


Bronze Member
Username: Andrew35

Post Number: 30
Registered: Oct-08
i havent. but with things like this you'll just learn how to do it better.


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1669
Registered: Jun-07
well if no one has tried it maybe it will be even better.
i mean no one on this forum has used this kind of wood either. so i guess it is a big test in a lot of areas


Gold Member
Username: Hdubb

Team Revolution

Post Number: 4115
Registered: Nov-04
ive tried angles.....lol....but no angels. haha


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1670
Registered: Jun-07
ya hunter... after my mission trip i thought it would be much better if i could give my box wings


Platinum Member
Username: Rovin

1 15 = 149.5 DBs ...Trinidad & T...

Post Number: 14924
Registered: Jul-05
i bet u found out that foam is some messy sh1t to deal with ...


i agree with andrew - this guy aint steve meade & im sure steve didnt do it right the 1st few times

im sure its a great learning experience & he will learn far more from trying this in real than reading what some person online did

go strong bro ...


Bronze Member
Username: Andrew35

Post Number: 31
Registered: Oct-08
there ya go. he explained what i mean ha.


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1671
Registered: Jun-07
ya. if it doesn't work ill learn from it


it was the first time i used foam... it wasn't bad... then i came out an hour later and it GREW! haha. i thought it was done but it just kept getting bigger. it is great for what im using it for. but next time i wont use a full can for one corner


Bronze Member
Username: Andrew35

Post Number: 32
Registered: Oct-08
haha next time he'll learn to not convert our vehicle into a growing blob :-)


Gold Member
Username: Snowball123

West Allis, WI

Post Number: 2664
Registered: Oct-07
so when's the estimated time this will get metered.


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1673
Registered: Jun-07
i am hoping the end of this month. ill show pix of everything when finished and let people guess numbers


Gold Member
Username: Tatonka

-[Team Audible Insanity]-

Post Number: 2922
Registered: Mar-07
I hope you at least get a 154 after all this work man. I just wish you would have listened to us about a few things for an overall better final product.


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1676
Registered: Jun-07
well i sure hope i get a 154. my last box sucked and keep in mind i was over 150 with it. and now i have 3 times the power.
my last box was single layer mdf. it had some flex! and it was not all the way sealed from the front.

i don't think that one angle is going to make it be off that much ! and in the place its in i really had no choice. it was either that or make the port a lot smaller


New member
Username: Gwm5225

Post Number: 3
Registered: May-09
Thats gonna hit hard!
« Previous Thread | Next Thread »

Facebook

Shop Related Deals

Directory

Main Forums

Today's Posts

Forum Help

Follow Us
