P.rick's build log 18 BTL



Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1692
Registered: Mar-07

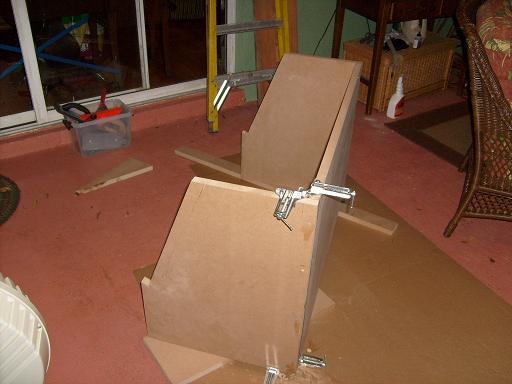

Finally began the build for the new box on paper it will be 6cuft after displacements with 2 6in aeroports tuned to 33hz more to come tomorrow......


Upload
Upload
Upload
Upload
Upload


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1357
Registered: Jun-07
seems like every one on this forum has small ports


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1358
Registered: Jun-07
ps. looks like its going good


Silver Member
Username: Turnmat

Racine, Wi

Post Number: 913
Registered: Feb-07
looks good so far. cant wait to see it when it gets done


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1694
Registered: Mar-07
fi rec 12-16 sqin of port per cuft 6x12 is 72 so this is a lil small but i just had a huge port 130sqin for a 4.5cuft box so i wanna try something diff i can always add more ports


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 1360
Registered: Jun-07
how thick is the wood at the bottom? looks thicker than 3/4


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1695
Registered: Mar-07
its all 1 in mdf


Platinum Member
Username: Rovin

1 15 = 149.5 DBs ...Trinidad & T...

Post Number: 14757
Registered: Jul-05
looking good so far

what amp will be powering it

im guessing ports will be firing up right ? ...


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1696
Registered: Mar-07
still gonna use my kx2500.1 to power it for now and im torn between firing them up and downfiring them as well opinions?


Gold Member
Username: Basebalz13

Moneta, Va Usa

Post Number: 1132
Registered: Aug-07
sub forward, port up across the back :-)


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1702
Registered: Mar-07
the sub is gonna downfire i just had sub forward port up i wanted to try something new but y would you put the ports up instead of downfiring them too? i may have to downfire them in order to have them the length i need will it cause any probs?


Gold Member
Username: Basebalz13

Moneta, Va Usa

Post Number: 1134
Registered: Aug-07
ohhh didnt see that subs down part yeah subs down port down,

had a teammate when i first met him had 2 JL w7 13.5 with 1000/1 doing a 150.6 at the headrest


Gold Member
Username: Basebalz13

Moneta, Va Usa

Post Number: 1135
Registered: Aug-07
2000 s10 xtreme

hmmm i think u might wanna block off where ur amp is and have sub on the driver side and port in the middle against where u block off for the amp... if u get what im sayin lol


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1707
Registered: Mar-07

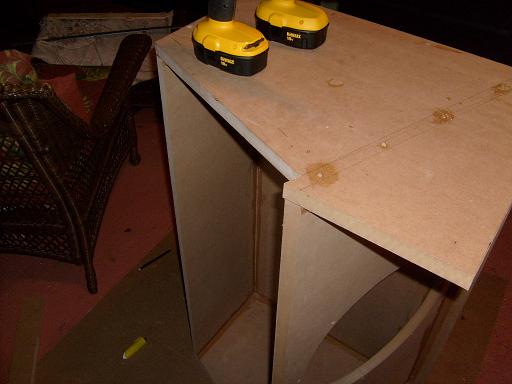

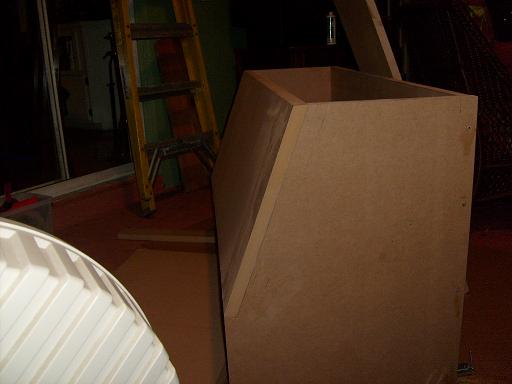

well end of day two i have a pinched nerve or bad disc in my back so its too painful to work i have a fun doc appt tomorrow but got the last 3 cuts made today and laid one of them on there to give you an idea of where its at. Tomorrow i will do the cut out for the sub and mount two of the last three pieces, and if time allows begin bracing.

Upload


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1708
Registered: Mar-07
im building a platform for it to downfire on thats what u see in the first few pics


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1709
Registered: Mar-07

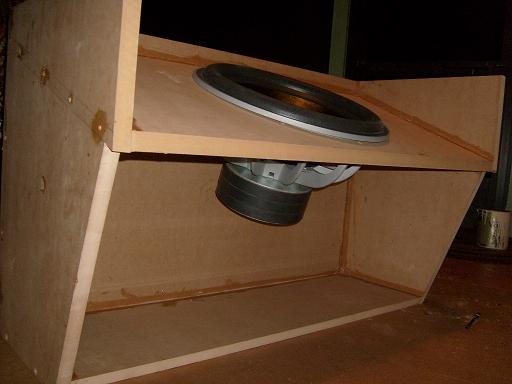

this is a preview of how the sub will be mounted its angled of course this is not to scale lol

Upload


Diamond Member
Username: Wingmanalive

Www.stainles... .ecrater.com

Post Number: 20027
Registered: Jun-06
Not bad at all man. Nice clean cuts.

Must suck to build in the living room though. Sunroom?


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1711
Registered: Mar-07
thanks. we actually just glue it together there because its clean we have a workshop out back.


Diamond Member
Username: Wingmanalive

Www.stainles... .ecrater.com

Post Number: 20031
Registered: Jun-06
I have s@x in my workshop. Sometimes my girl joins me.


Silver Member
Username: Wickedbass

Nashville, Tn

Post Number: 433
Registered: Jan-08
^lawl.

Lookin' good man.


Gold Member
Username: Andrew571

Stillwater/Edmond, Oklahoma USA

Post Number: 2287
Registered: Oct-05
Finish this alrdy.


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1713
Registered: Mar-07
lol i wish being hurt is slowing production plus the ports dont arrive til friday and knowing ups they will be late and/or broken...... i should have it in my truck by sat then have my customs shop trim it in next week


Gold Member
Username: Basssquared

Kansas

Post Number: 2491
Registered: Nov-06
looking good Pat nice clean work like always hope you heal soon bud


Gold Member
Username: Loc_out

Team RE XXX

Post Number: 2750
Registered: Feb-05
Can't wait to see the finish product. Keep up the good work.


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1715
Registered: Mar-07

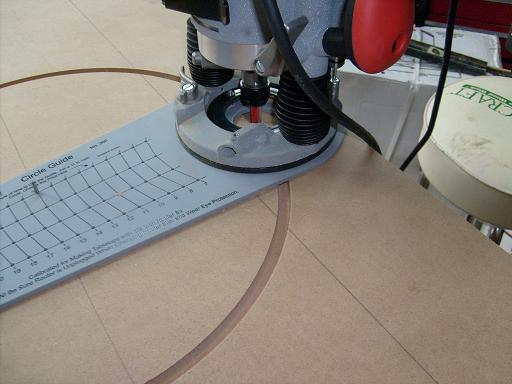

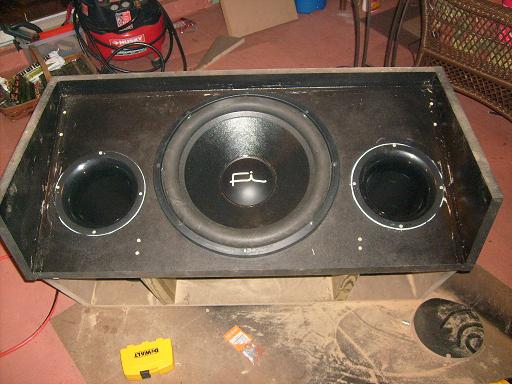

well heres end day 3 got the sub hole cut out and the top and bottom mounted caulked the box (tube broke thats y its such a mess) and checked the mount thank god its gonna fit.

Upload
Upload
Upload
Upload
Upload
Upload
Upload


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1717
Registered: Mar-07

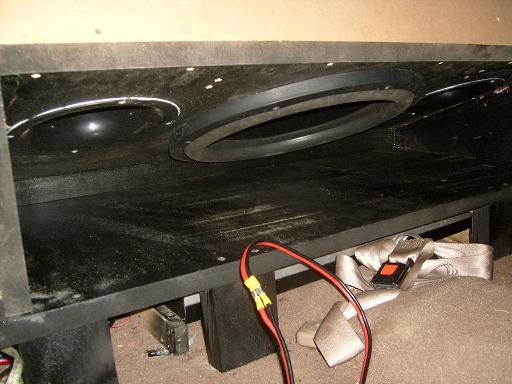

heres the finished platform i also painted the bottom of the box forgot to take a pic...... the amp placement is not final it will be moved.

Upload
Upload


Gold Member
Username: Mendonmafia

USA

Post Number: 1750
Registered: Aug-06
damn! thats gonna be LOUD.

im jealous


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1719
Registered: Mar-07
i hope so lol


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1723
Registered: Mar-07
so i got to ups.com to check my ports and status is "train derailment" WTF FML


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 2766
Registered: May-07
glad you got the ports in. Train Derailment. WOW! lmao P.Rick gettin' all fancy smancy with the sub cutout..

<----yeah, Jealous


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1735
Registered: Mar-07
its nice having a dad that does wood work as a hobby he has all sorts of cool wood tools not that a router is abnormal or anything but other stuff


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1736
Registered: Mar-07

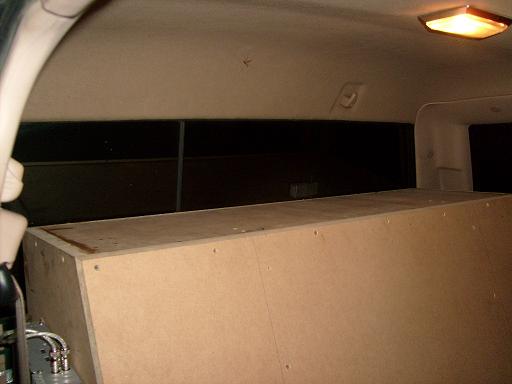

FINALLY DONE!!!!! got it in my truck bigger box and lower tuning it slams the lows. Sq is vastly improved i did notice a 2 db loss testing to the same songs i used b4 but all of the spl is blocked by the seats....... so who knows the sq improvement makes it all worth it. Trim plates soon to come....

Upload
Upload
Upload
Upload


Gold Member
Username: Basssquared

Kansas

Post Number: 2498
Registered: Nov-06
that looks sick as fu<K bro and yeah i bet it murders the lows with that tunning

Mr. Ferguson FTW


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1739
Registered: Mar-07
haha thanks i have school, doc, then work but ill try to find time for a vid


Gold Member
Username: Bonhamd

Traverse City, MI

Post Number: 1809
Registered: Nov-07
good stuff man

get the vids up as soon as possible


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1770
Registered: Mar-07

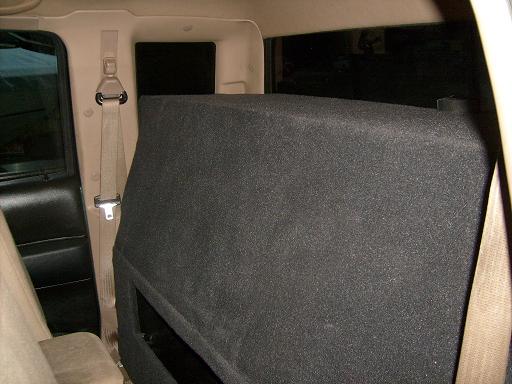

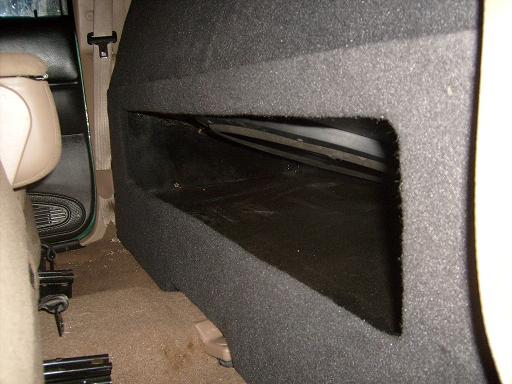

and the trim plates......

Upload
Upload
Upload

It looks a lot better but also sounds better the back window doesnt bang anymore, no more rattles, and all of the sound comes forward now worth every penny


Gold Member
Username: Bonhamd

Traverse City, MI

Post Number: 1853
Registered: Nov-07
looks sick - get some vids up bro


Gold Member
Username: Snowball123

West Allis, WI

Post Number: 2538
Registered: Oct-07
how far are those aero's off the back wall? looks pretty close. looks nice with that trim panel though. good job.


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1771
Registered: Mar-07
its the angle there is a 2-3 in gap


Diamond Member
Username: Wingmanalive

Www.stainles... .ecrater.com

Post Number: 20165
Registered: Jun-06
Veddy nice man!





Upload


Gold Member
Username: Snowball123

West Allis, WI

Post Number: 2539
Registered: Oct-07
and those are 6" aero's? I thought the rule was to have 6" or however big the dimaeter of the aero was, off the back wall.


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1772
Registered: Mar-07
idk that may be true but sounds fine


Gold Member
Username: Snowball123

West Allis, WI

Post Number: 2540
Registered: Oct-07
only thing it would affect would be the tuning.


Silver Member
Username: M0nstar

Toledo, OH U.S.

Post Number: 203
Registered: Dec-08
omgsh! have you metered it yet?

i still haven't made a box for my BL18 cz im waiting to get a new car, but gosh, this looks just dandy.


Silver Member
Username: Wickedbass

Nashville, Tn

Post Number: 480
Registered: Jan-08
Looks good man!




Vids!!!!!!!!!!


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1773
Registered: Mar-07
lost about 3dbs or so but i also lowered the tuning a lot and thats with all of the sound pressure being blocked by bench seating. i built this as more as and sql setup rather than higher numbers sounding like crap like my last box


Gold Member
Username: Loc_out

Team RE XXX

Post Number: 2792
Registered: Feb-05
P.rick you got down bro.
