Wiring...Please help

Casey Elkins New member Username: Cmack111 Post Number: 1 Registered: Feb-09	Posted on Sunday, February 22, 2009 - 20:51 GMT I have a Kenwood amp that runs 2 OHM at 500x1 I have 2 JBL Dual voice coil 8 inch subs with 200 rms And a capacitor I need to know how to wire the whole things so that it runs at 2 ohms Please help...If you have a diagram that would be killer
Stavenmist316 Gold Member Username: Big_edge_head Milwaukee, WI Post Number: 3489 Registered: Mar-07	Posted on Sunday, February 22, 2009 - 21:05 GMT This is if your subs are D2. Ditch the cap.
Casey Elkins New member Username: Cmack111 Post Number: 2 Registered: Feb-09	Posted on Sunday, February 22, 2009 - 21:25 GMT Yea they are Dual Voice Coil Why no Cap??
will Bronze Member Username: Will4992 NC Post Number: 55 Registered: Mar-08	Posted on Sunday, February 22, 2009 - 21:28 GMT Are the 2 ohm DVC's though? The cap is not necessary.
Casey Elkins New member Username: Cmack111 Post Number: 4 Registered: Feb-09	Posted on Sunday, February 22, 2009 - 21:32 GMT yea they are Dual Voice Coil
will Bronze Member Username: Will4992 NC Post Number: 56 Registered: Mar-08	Posted on Sunday, February 22, 2009 - 21:38 GMT I know, we've already established that they are dual voice coil subwoofers. what I need to know is what impedance the coils are. Are they dual 4 ohm coils or dual 2 ohm coils. If they are dual 4, then they can not be wired to 2 ohms.
Casey Elkins New member Username: Cmack111 Post Number: 6 Registered: Feb-09	Posted on Sunday, February 22, 2009 - 21:42 GMT Ooooo...My bad they are single 4 ohm

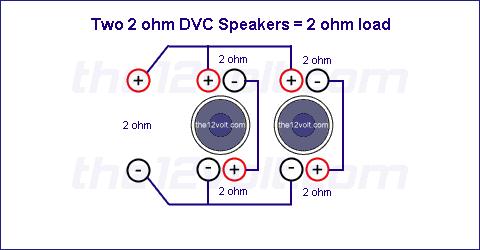

will Bronze Member Username: Will4992 NC Post Number: 57 Registered: Mar-08	Posted on Sunday, February 22, 2009 - 21:47 GMT then wire them like this
Casey Elkins New member Username: Cmack111 Post Number: 7 Registered: Feb-09	Posted on Sunday, February 22, 2009 - 21:48 GMT That will run them at 2 OHM?
Stavenmist316 Gold Member Username: Big_edge_head Milwaukee, WI Post Number: 3490 Registered: Mar-07	Posted on Sunday, February 22, 2009 - 21:53 GMT yes.
Brian Bronze Member Username: Blkbville04 Monclova, Ohio US Post Number: 64 Registered: Oct-08	Posted on Sunday, February 22, 2009 - 22:37 GMT ditch the cap, with 500 watts your stock electrical will be able to handle it up to about 1200 watts
Casey Elkins New member Username: Cmack111 Post Number: 8 Registered: Feb-09	Posted on Monday, February 23, 2009 - 02:23 GMT So with the 2nd wiring diagram how do I wire the other two wire hookups on my subs? They are DVC.
Stavenmist316 Gold Member Username: Big_edge_head Milwaukee, WI Post Number: 3496 Registered: Mar-07	Posted on Monday, February 23, 2009 - 02:55 GMT quote: Ooooo...My bad they are single 4 ohm What the hell are they
Casey Elkins New member Username: Cmack111 Post Number: 9 Registered: Feb-09	Posted on Monday, February 23, 2009 - 03:59 GMT go to the link...it has all the details http://www.sonicelectronix.com/item_7443_JBL+GTO804.html
M.S. Gold Member Username: Nd4spd18 Philadelphia, PA Post Number: 9910 Registered: Jul-06	Posted on Monday, February 23, 2009 - 04:29 GMT WTF????? The picture shows 2 sets of terminals on the sub, but the specs say single 4 ohm. Somethin ain't right here.
Casey Elkins New member Username: Cmack111 Post Number: 10 Registered: Feb-09	Posted on Monday, February 23, 2009 - 04:38 GMT Yea. I looked at the site and it doesn't have the exact speaker listed as the picture. They are single voice coil 4 OHM subs. Can I wire those at 2 OHM?
Stavenmist316 Gold Member Username: Big_edge_head Milwaukee, WI Post Number: 3497 Registered: Mar-07	Posted on Monday, February 23, 2009 - 05:44 GMT Yeah just like this picture and the one above it.
M.S. Gold Member Username: Nd4spd18 Philadelphia, PA Post Number: 9915 Registered: Jul-06	Posted on Monday, February 23, 2009 - 07:04 GMT If they are single 4 ohm then there will only be one set of terminals per sub. Just wire them like that diagram.
