8" Sub Questions,,,



Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2722
Registered: Dec-06
Alright, I'm going to try to kill two birds with one stone.

1) My buddy has a DD1508 that stopped working on him. It was only getting like 300RMS, so I would think it would have been hard to fry it. Do I need to just take a DMM to the coils, or what do I do to check this thing out? It doesn't smell burnt, but I can't see the leads as they are woven underneath. (Basically, if the thing is fried, he'll be getting rid of it. If that's the case, let me know if you're interested in it)

2) I need some 8" sub suggestions for the same kid (in the case that it's fried). He is looking to run two subs, running 700ish RMS or less, spend maybe $100 each. I've run RL-i and 1508, but don't know many others.

Thanks for the help, as always, fellas!
Ben


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1613
Registered: Mar-07
re re8's?
yes dmm to each coil will tell you


Platinum Member
Username: Insearchofbass

Post Number: 11163
Registered: Jun-04
Get the dd 8 reconed.


Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2723
Registered: Dec-06
Underneath the back seat is not a good place to have the DD. Sealed does not work well and he wants two subs.


Platinum Member
Username: Insearchofbass

Post Number: 11165
Registered: Jun-04
How much does he want for the dd 8?


Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2724
Registered: Dec-06
Not a clue. I need to see what's wrong with it first. Offer up, I mean, I have no idea what a blown one is worth. It's in great physical condition.


Silver Member
Username: Basebalz13

Moneta, Va Usa

Post Number: 852
Registered: Aug-07
sundown E8


Gold Member
Username: Jtown

Texas

Post Number: 3433
Registered: Mar-07
woofercooker still has many of those reconed E8s for sale on CA


Silver Member
Username: Denim

SoundSolutionsAudio.com, MD USA

Post Number: 836
Registered: Nov-06
SoundSplinter has those Orphan8's. They are meant for tiny boxes. But are SVC 6ohm.


Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2725
Registered: Dec-06
Thieves I was definitely considering those.

Denim, are those available on the site? I guess I haven't seen them?


Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2726
Registered: Dec-06
Denim I can't access the SSA site. I've had this issue before and I don't know what happens. Anyways, can you get me some info on price/specs/etc?


Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2727
Registered: Dec-06
Bump for Denim


Gold Member
Username: Jtown

Texas

Post Number: 3436
Registered: Mar-07
BCS he said the SOUNDSPLINTER orhpans, which are NOT SSA product


Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2728
Registered: Dec-06
I understand that. They don't have them on the SS site and doing a google search showed SSA as having them. like I said, the issue I am having is for some reason I can't access that site thru Firefox or explorer.


Silver Member
Username: Denim

SoundSolutionsAudio.com, MD USA

Post Number: 837
Registered: Nov-06
The site is loading for me in Chrome, IE, FF and Maxthon. Maybe try clearing your cookies and see if that helps. But specs you asked:

T/S Parameters for the Orphan 8 Single 6 Ohm:
Qts - 0.405
Qes - 0.442
Qms - 4.778
Fs - 34.289 Hz
Re - 5.25 Ohm
Ls - 12.16mH
Lp - 4.053 mH
Rp - 25.46 Ohm
Vas - 5.031 L
Mms - 214.1 g
Cms - 100.6 m/N
Bl - 23.39 T*m
Sensitivity - 78.44 dB
17mm Xmax

I believe rms is the same as the RL-i, so right in the range of 300-500 each is plenty. They are tiny box drivers, so you could fit more if you wanted to.

SoundSplinter Orphan8


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7209
Registered: Mar-04
what vehicle?


Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2729
Registered: Dec-06
2004 Chevy ext. cab 1500. He wants everything to fit under the back bench seat.


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7212
Registered: Mar-04
Email me...i have a box design you might like :-)
Works great w/ 1-10" or 2-8's.
I actually designed it for a single DD2510 originally. Even leaves room on the passenger side to mount an amp.

audible.insanity@gmail.com


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 2191
Registered: May-07
canaan, A guy came to my office to bond a buddy out. We started talking about car audio.. He said he had a 4- 12" type-R setup in a trunk(ported).. Iasked him if the box was built to specs.. He then stated the it was built for him in Monroe. At a Pawn Shop. I then informed him that it was all good. He was suprised that I knew of you. Was kinda cool.

sorry for thread jack


Gold Member
Username: Mgbcs

Maple Grove, Minnesota

Post Number: 2730
Registered: Dec-06
I love you Canaan!

No h0m0

Email Sent!


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7213
Registered: Mar-04
Mark,
Yea...I remember that guy. He had and RF 4ch, 2 RF bd1000's and 4 R's in a chitty single chambered sealed box. The amps were not even strapped and it was all run off a single run of FAKE 4ga!

I built an 8cuft box w/ 3 6" flares tuned to 38hz on paper, strapped the amps, mounted the batt was was rolling around in the trunk, slapped a quick mount-board up in the corner for the 4ch (was mounted on the old box) and totally rewired it all w/ 1/0ga. The low end from that Grand Marques (iirc) was nice after all that :-)
His buddy came to pick it up and couldn't believe the guy didn't buy a single piece of new equipment. Said the whole thing sounded like a totally new system.

Its a small world.


BCS,
I'll email you the sketchup file tomorrow. It is on the shop computer.



ps...
feg


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7214
Registered: Mar-04
Mark,

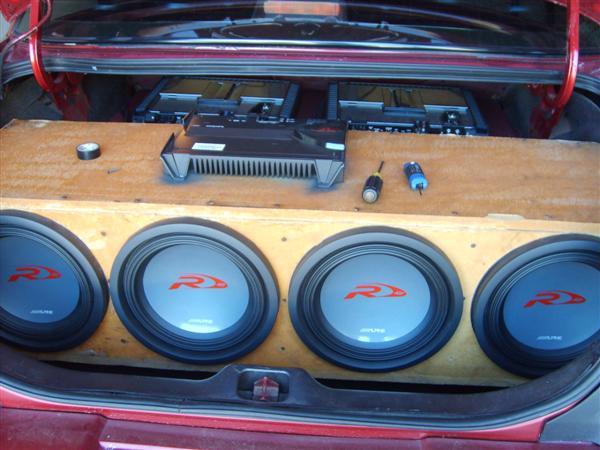

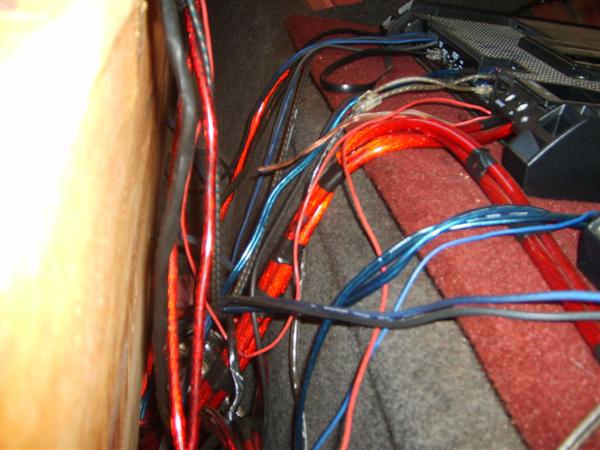

Here is what it looked like before I got ahold of it:

Upload
Upload
Upload

cant find any after pics though.


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 2207
Registered: May-07
didnt get to see it... He wasn't in the Marquis.. But tat is the setup.. IIRC he is a barber.
