DD9512g Smells Funny



New member
Username: Harrypm82

Post Number: 1
Registered: Nov-08
Hi Guys I am new here. I recently got a dd9512g with the composite cone running off a z2 amplifier.I run it at two ohms Cause I am not sure if I have enough power in the car to run it properly yet. I don't do spl, just pissing about over town listening to loud music. When I turn the sub up, the bass will be clean but after about two songs, I will get a smell similar to wood burning. Doesn't smell electric at all. It def comes from the sub cause I can smell it in the port vent. Also will the z2 amplifier cut out if it doesn't get enough power?Both are brand new. Thanks in advance

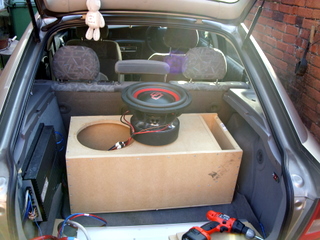

Upload


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 18833
Registered: Jun-06
Gains, bass boost. Sounds like the coil frying.

Holy moly do the screws in your box need spaced out more evenly lol.

Nice stuff though.


New member
Username: Harrypm82

Post Number: 3
Registered: Nov-08
Thanks lol. I had four hours of daylight to build the box and install the stuff and it was pretty much touch and go for a 250 mile trip home after that. I am seeking some box designs as I am only using this one for testing purposes, thus no acoustic carpet and bad wiring. I am planning to rip the bottom of the boot out and replacing it with 3/4" mdf and work from there. Thanks for the reply though


New member
Username: Harrypm82

Post Number: 4
Registered: Nov-08

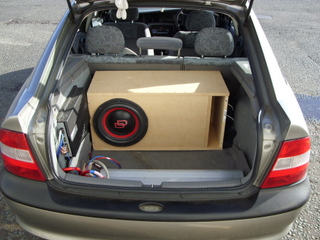

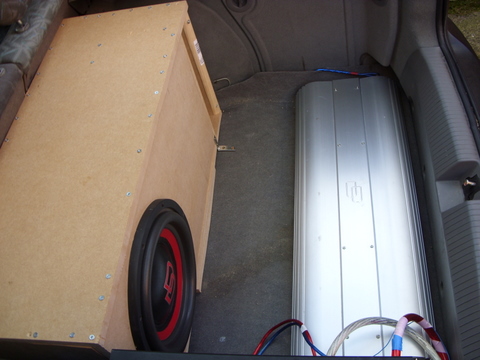

Upload
Upload
Upload


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7022
Registered: Mar-04
What kind of charging system do you have?
Batts/alt?


New member
Username: Harrypm82

Post Number: 5
Registered: Nov-08
At the moment it's just the stock 70a alternator and 45a bat. I had a nsb90 but gave it to a friend just before i got these! Need to do an upgrade on the big 3 as well.


Gold Member
Username: Talon01

Team Revolution , Pa Usa

Post Number: 1746
Registered: Jun-07
that is way to much power for stock electrical. also to much power for the sub daily. that z2 does 4400wa at 2ohm


Gold Member
Username: Andrew571

Stillwater/Edmond, Oklahoma USA

Post Number: 2103
Registered: Oct-05
you are ruining a very sexy sub....


Gold Member
Username: Nd4spd18

Philadelphia, PA

Post Number: 8884
Registered: Jul-06
Set gain right and make sure bass boost is off......


And yeah that electical systems only about 100x too small for that amp lol.


Gold Member
Username: Nd4spd18

Philadelphia, PA

Post Number: 8885
Registered: Jul-06
Set gain right and make sure bass boost is off......


And yeah that electical systems only about 100x too small for that amp lol.

If you smell anything turn it down immedietly, it's already damaging the sub at that point


Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 5876
Registered: Nov-05
if the sub is brand new it could just be burning off excess glue


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7027
Registered: Mar-04
check you voltage and see how far it is dropping.

It its getting below 10v, you are clipping the fu}k out of that amp.


New member
Username: Harrypm82

Post Number: 6
Registered: Nov-08
The minimum it reads at the back is 10.34 volts and that is when I play it over the volume I normally listen to. At the same volume, the front jumps between 11.60 and 12.60 volts. I obviously need to do my big 3 and do a few more 0 gauge runs to the back. What do you think?


Silver Member
Username: Kingandsons07

TEAM REVOLUTION Lincoln,NE

Post Number: 269
Registered: Aug-08
really nice setup need better electical systems asap


Gold Member
Username: Redliner

Wilmington, Ma

Post Number: 4588
Registered: Jun-05
ya you def need new alt, batts, big 3, and what not or you will ruin that very very nice and pricy setup. It is nice though


New member
Username: Harrypm82

Post Number: 7
Registered: Nov-08
will a 120a alternator be sufficient?


Gold Member
Username: Nd4spd18

Philadelphia, PA

Post Number: 8890
Registered: Jul-06
Haha hell no

200+ amps and a new battery


Gold Member
Username: Stateprop486

PA

Post Number: 1705
Registered: Jan-08
if you had money to spend on that nice equipment you should have money to spend on a good alt and battery. lol


New member
Username: Harrypm82

Post Number: 8
Registered: Nov-08
Cheeky. I actually traded it for 2 atomic apxx subs.


Gold Member
Username: Redliner

Wilmington, Ma

Post Number: 4591
Registered: Jun-05
ya u def need 200-300 amps for a alt. Then you need to grab 1-2 batts


Gold Member
Username: Renegadesrun

Lafayette, IN US

Post Number: 1014
Registered: Oct-04
Wow.

Next thread prediction.

"My car burnt to the ground, what should i buy next?"
