Started the enclosure for the 18's



Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1113
Registered: May-07
I didn't take to many pics.But I do have a few for the 1st day of this sub enclosure build and sub swap..

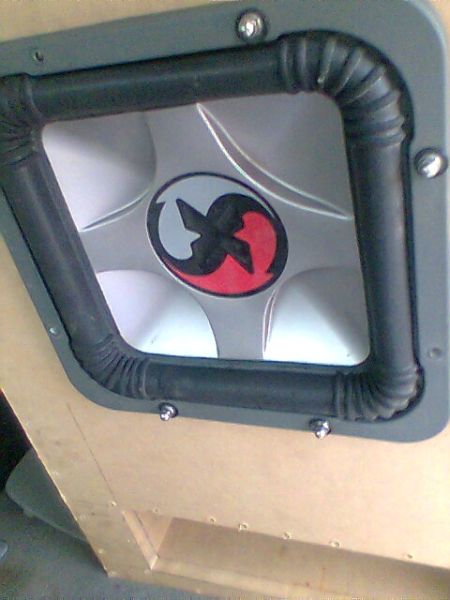

Taking out both Solo X 12's..
out with the old
Upload
Upload

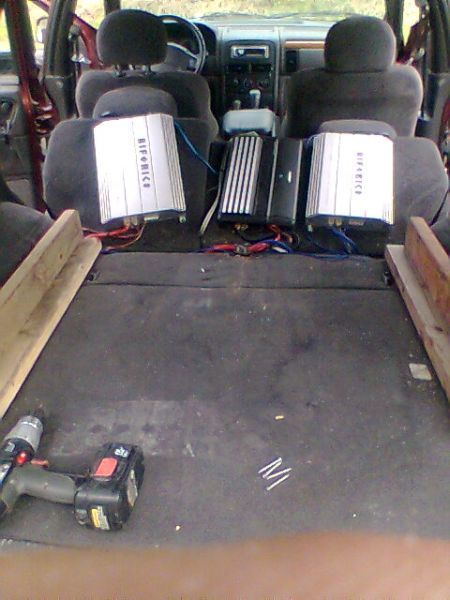

strarting to frame out the artificial floor
(box needed to be raised enough to clear fender wells"
Upload

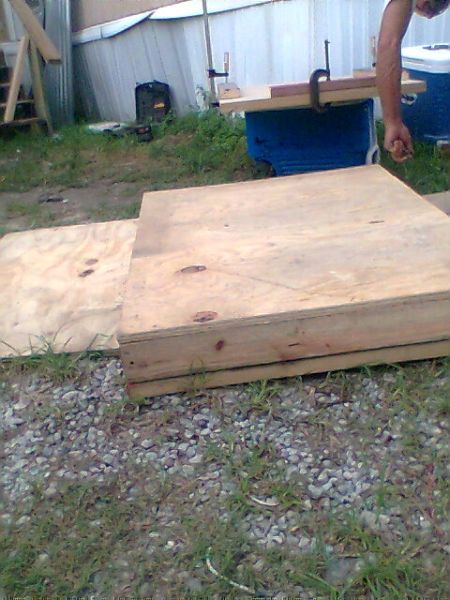

finished floor (without carpet) outside of the vehicle.
Upload

Starting on the Baffle
Upload

early into the box build
Upload

some random pics
Upload
Upload
Upload



I do have the art. floor in vehicle.
have 2 more cuts left.
Port is complete
Need to still install the all-thread, nuts, and washers. 45's for the corners and cut mounting holes for the subs.

Probably wont be carpeted anytime this week.

Will get pics of these HUGE subs on next round!

Just thought I would share.

subs: 2- 18" RD Alpha's V.2 D2
enclosure: 11.75^3 ft., common chamber, 80^2 in. port., tuned to 35 Hz.


Silver Member
Username: Waresgaragestereo

Fort Valley, GA

Post Number: 330
Registered: Mar-08
sweet. cant wait to see it done


Gold Member
Username: Pitbullguy

The Chicago area

Post Number: 3464
Registered: Oct-06
Mark we have the same car :-)

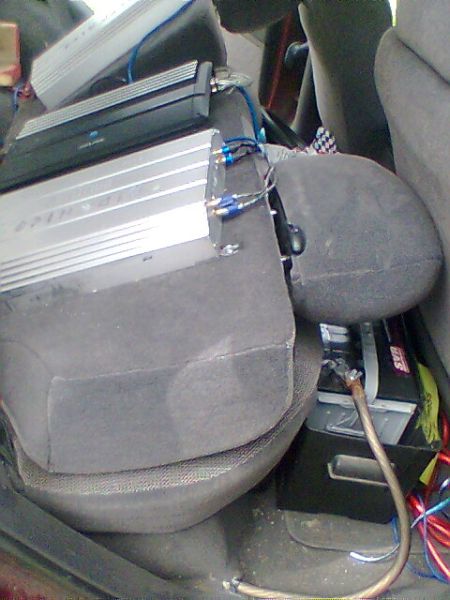

Was it a pain in the as$ to mount the amps to the back seat? Never got around to doing mine.


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1114
Registered: May-07
it was untill i got the right tools... kicked my azz at first... they have been there a while.


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1115
Registered: May-07
is your the laredo 4X4? color?


Gold Member
Username: Pitbullguy

The Chicago area

Post Number: 3465
Registered: Oct-06
"the right tools"

elaborate?


Gold Member
Username: Pitbullguy

The Chicago area

Post Number: 3466
Registered: Oct-06
Yes it's the 4x4, but with leather:-). And it's the same color as yours, which I'm not crazy about.


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1116
Registered: May-07
cordless drill wouldn't work for me... needed an air drill.. one of the lil ones to really put some pressure on the bit(s).. broke more than one, lol... sh!t(back of seat) must be made of diamonds.


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1117
Registered: May-07
4.0L? or V8? Not a fan of the burgandy either


Gold Member
Username: Pitbullguy

The Chicago area

Post Number: 3467
Registered: Oct-06
v8. thanks for the tip.


Platinum Member
Username: Insearchofbass

Post Number: 10296
Registered: Jun-04
Im looking forward to seeing the finished results Mark. How much power are you going to be feeding these subs?


Gold Member
Username: Talon01

Team Revolution , Pa Usa

Post Number: 1549
Registered: Jun-07
i have a 300amp iraggi alt that will fit that jeep if interested mark


Gold Member
Username: Goodie_goop

Mid town, Texas U.S.

Post Number: 1005
Registered: Oct-06
isnt that a little shy on port area?


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1118
Registered: May-07
@ Sean- same power that I had on the solo x's
2-bxi2005's.. They pounded the solo's.. These amps are closer to the rms of the Alphas than the Solo's...
I have a deal in the works for a 5750 from Steve...

@ scott- Thought you said that it was for the v6.. I have the 4.0L inline 6... If you would send detailed pics and I will compare to my 132 amp alt.. thanks.

@ goodie-- Geez.. I hope not... The box design came from Steve Miller. He used A JGC to make the measurements.

thanks for the replies..


Gold Member
Username: Goodie_goop

Mid town, Texas U.S.

Post Number: 1006
Registered: Oct-06
i dont know much about boxes it just sounded a little small to me...if steve came up with it im sure your good


Gold Member
Username: Theweasel

2 12 FI SSD, Colorado U.S. of A

Post Number: 1235
Registered: Mar-06
rule of thumb is 12-16 sq inches of port for every cubic feet of the box. and usually 18's want at least 80-90 to breathe


Silver Member
Username: Teamrevolution

ATLANTA, GA USA

Post Number: 379
Registered: May-07
Most 18" do need alot of port. The Alpha 18" really like around 40 per sub for daily applications and aroun 6 cubes total per driver.

The sonance 18" do best in only 4.5-5 cubes with around 35 sq of port.

If you wanted a SPL box for the alphas you could run them in 7 cubes with 60-80sq of port.


Gold Member
Username: Talon01

Team Revolution , Pa Usa

Post Number: 1550
Registered: Jun-07
sorry mark i meant to say ehren and it will fit the 4.7 v8


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 17918
Registered: Jun-06
We'll be watching. Looks good thus far.


I have several of those bar clamps myself. Affordable and work well.


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1119
Registered: May-07
"I have several of those bar clamps myself. Affordable and work well."

They were $3.00 a piece.... I bought 6..They worked quite nicely.

Am getting close to being done with the install... Hopefully I will have it completed today... Carpet and all.. Really curious to see if they are gonna be louder than the 2-12" solo x's... They should be.. I will upload some pics this evening if I get it done...
If not, it will be tommorrow for sure..


quick question... The subs are D2 ohm... All the V.C.'s read 2.7 ohm... As did my Solo X's.. Is that normal? why? thanks again guys..


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1132
Registered: May-07
DAY 2
}

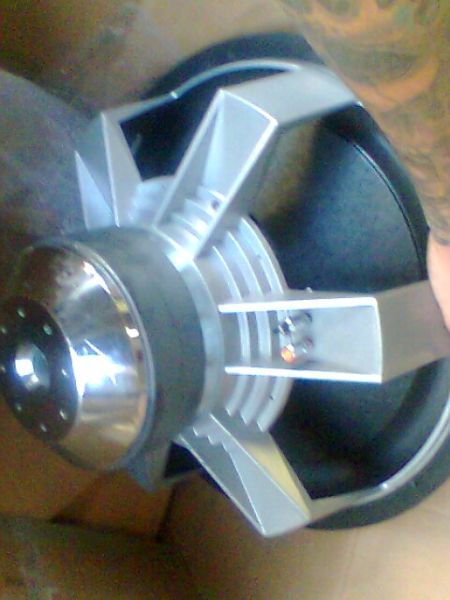

A few pics of the sub:
Upload
Upload
Upload

almost done and ready for carpeting:
Upload

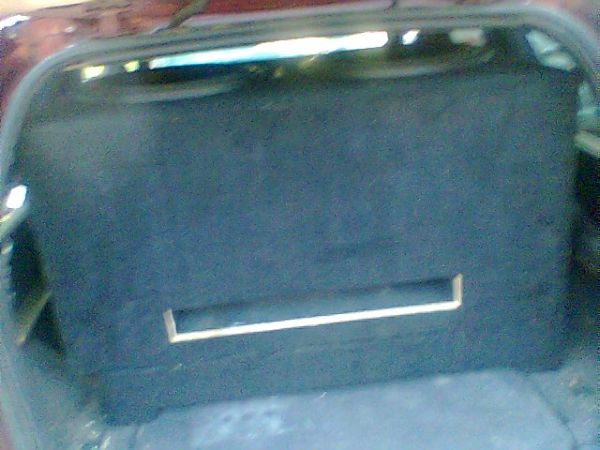

Carpeting done.. Just showing the Double baffle and the all thread.

Upload

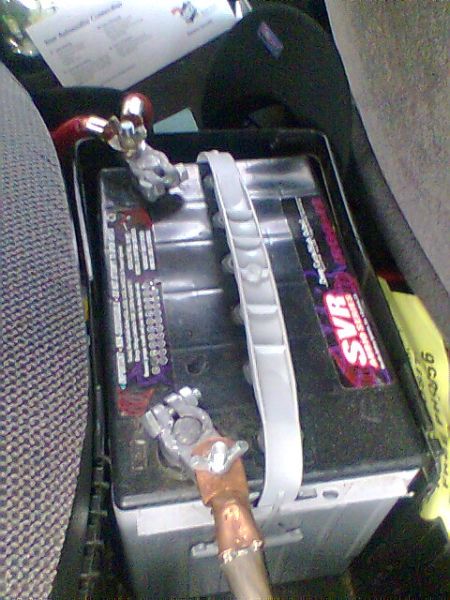

Everything installed... used 8 Ga. wire for the speakers

Upload
Upload
Upload
Upload


Vid coming soon.. likely tomorrow. when I can use my good camera. The Canon SD750 handles the bass with ease. By far the best Bass video camera I have ever seen.

Review)

I found the res. Freq. of my jeep... I can't tell you the exact Hz. but The song "I Run This" Lil Wayne and Birdman has that particular Freq. most of the way through it. It makes my Jeep sound like the high pitched thunder.
The lowest bass part on the song "I put on" - Jeezy Is hit with ease and really make the air move.... The Solo X's wouldn't hit it because of the box tuning (45 hz.)

I can say for sure that my TL #'s have improved drastically over the Solo X's with the same power... Likely because the amps I am running are closer to the RMS wattage of the Alpha's as compared to the Solo X's. And Cone area as well! The increase is obvious to the ear to anybody who has heard both systems.. These subs hit the upper Freq's nicely and can hit all of the subsonic notes in the song "Bass, I love You" without any problems.. I can tell that the 2 hifonics BXI-2005D's do a nice job pushing these monsters. But they could handle more... Which scares the sh!t outta me.. Playing the song"Six- Twelves- Webbie" makes my gas cap lid open up... Never happen before.. Over all It's pretty fu(kin' sick!! I have a local show here in Lake Charles, La. On Sept. 6th and will get it TL'ed(w/ pics.).. It is a Usaci event. I wanna know what this system is doing before Canaan's Sound-Off in Late Sept.. I really have no chance as I will be in the most powerful class.. Kinda sux! But I really wanna meet He and Nick V. and the rest of their team. Maybe knock a few back at HOOTERS or somewhere like that the night b4 the Comp. If work will let me.. Thanks for taking the time to read all this sh!t!


I would also like to thank Steve Miller for the box design and the inexpensive price on the Alpha's($490-shipped) WOW. He gave me a great quote on a RD5750.1 that I am considering... Wish me luck.


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 17932
Registered: Jun-06
Upload




That box looks like it almost won't come out.


Gold Member
Username: Southernrebel

Monroe, Louisiana 3 DD3515s, 2...

Post Number: 6667
Registered: Mar-04
You better bring your azz to Monroe

I want these locals w/ mainstream stuff to be blown away.


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1134
Registered: May-07
you would not belive how tight of a fit it is... I decided to double baffle the bottom as well(3/4"&1/2") and almost couldn't get it in there,lol


Gold Member
Username: Bonhamd

Post Number: 1004
Registered: Nov-07
i think the subs read that way because of your DMM

touch the leads together on the DMM and see what it reads and then subtract that from your VC reading

great review - i wish i could have my 15 inch alphas in as fast as you have your 18s in

looks good mark

VIDS ASAP


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1135
Registered: May-07
Canaan, I'm try! fosho.
Me and another Bondsman/relative (the guy with the 1999 Bourbon with 2-cvx'15's on 2000 wrms) are gonna try to get that weekend off!


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1136
Registered: May-07
Thanks Daniel! U can... Just do it lol


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1185
Registered: Mar-07
dam that box is huge for your truck bet those 18s slam


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1138
Registered: May-07
It wont budge,lol. It is fu(kin' heavy as h3ll.


Gold Member
Username: Killerzracing71

Post Number: 2283
Registered: Aug-05
18s FTW where the Vids mayne

VIDEOS asap lol


Silver Member
Username: Wolf_hound

Phoenix, AZ

Post Number: 648
Registered: Sep-05
Came out great, good job, looking forward to the vids.


Gold Member
Username: Th3pwn3r

I compensate...

Post Number: 8626
Registered: Jul-06
Mark, you're a tatted up piece of trailor trash! Just kidding man.Do you have full sleeves? Nice progress so far and nice subs, that should slam.


Gold Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 1143
Registered: May-07
lol... Both arms are half sleeves. Thanks
