Been working on these for a while now.
These are for CDT m6 and a CDT hd-3"
ALright so first of all Thanks to Berny for 1) The CDT HD-62-m6 and 2) for all the fiberglass help.
Thanks to Exige Audio for the hd-3"s
Thanks to Steve and Nick V for thier Fiberglass help as well.
Thanks to epicenter designs on fiberglass forums for the speaker rings.
Also thanks to Brad Warren for IRfanview because otherwise you would all be looking at photobucket links.

Ok here we go.

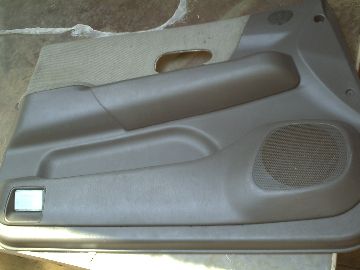

First heres the door. the bottom panel was removed.
Upload

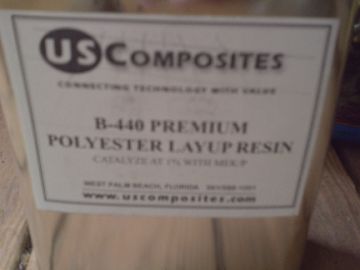

Resin
Upload
Mat
Upload

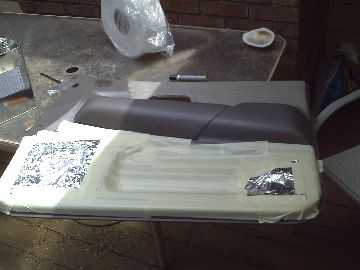

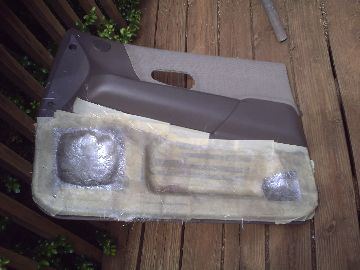

Door taped off. I made a recess to add more airspace for the M6(large foil part).
Upload

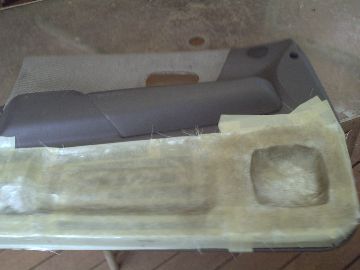

First layer of mat.
Upload
Upload
There a blue tint to this because i believe i didnt use enough hardener on this door. There's about 2 1/2 layers here.
Upload
Driver's side
Upload

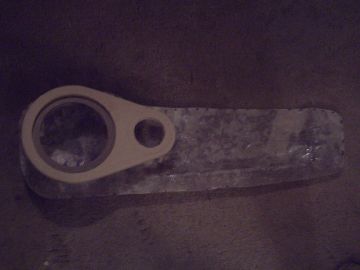

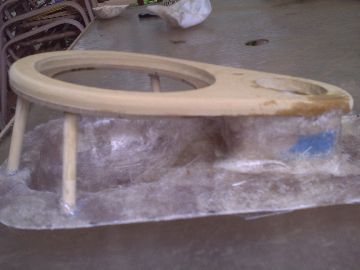

Speaker ring mounted
Upload

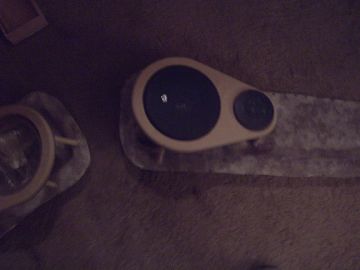

Speakers dropped in.
Upload
Test Wrapped
Upload

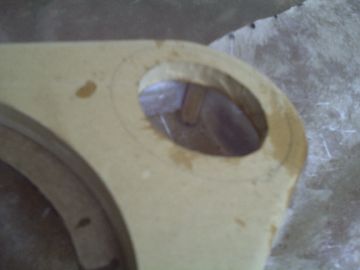

I thought of this idea while Working on them. Both the M6 and HD-3" have higher than normal Xmaxes for thier size. So i wanted to keep them from effecting each other's performance. So i glassed the area around the HD-3" to seal it off from the M6
Upload

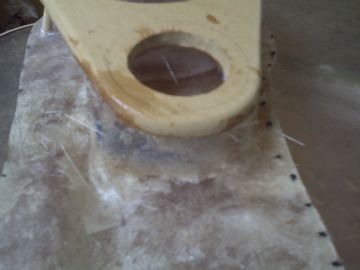

Another pic of HD-3" sealed off
Upload
And another
Upload
Inside shot
Upload

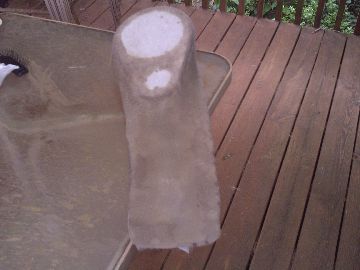

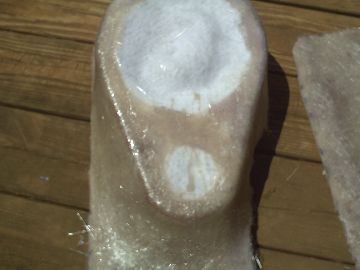

Wrapped and soaked in resin. With this you want a material that is absorbant but not too absorbant and streches. the soaked fleece isn't the strength of the pod the mat is. The fleece just provides a sturdy place to lay more mat.
Upload
Saoked
Upload
First layer of mat
Upload
Another shot
Upload
And another
Upload

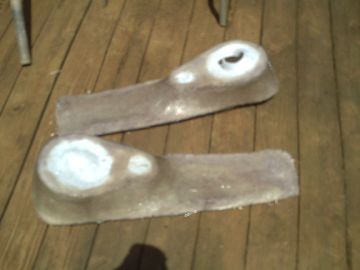

There's 1 1/2 to 2 layers on the outside of the pods
Upload

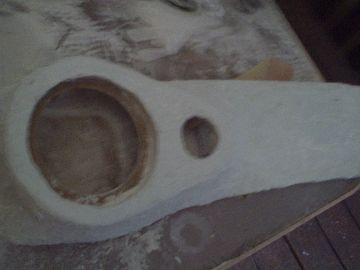

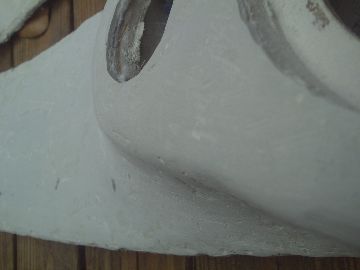

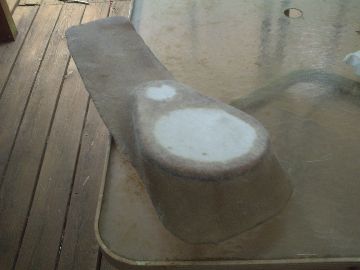

Rage filler layed down and sanded
Upload
another
Upload
and another
Upload
one more
Upload
Uno mas
Upload

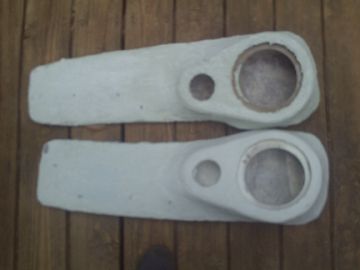

And this is where we stand today. I still have alot of sanding and touching up to do and still have to wrap it, but we're getting there.
Upload

:-)


Gold Member
Username: Big_edge_head

Milwaukee, Wisconsin

Post Number: 2489
Registered: Mar-07
They're coming along great, Phil. I can't wait to see the end product.Upload


Silver Member
Username: Cozce

Post Number: 148
Registered: Mar-08
x2


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 2699
Registered: Mar-06
lookin good man.
Ive been waiting about 3 months on my paint guy to paint mine. I think Im about to just get them back and wrap them in vinyl to match my interior


Gold Member
Username: Andrew571

Stillwater/Edmond, Oklahoma USA

Post Number: 1921
Registered: Oct-05
wow phil that looks great. nice work man!

more pics!


Gold Member
Username: Insearchofbass

Post Number: 9956
Registered: Jun-04
Nice work Phil.


Diamond Member
Username: Bestmankind

Post Number: 21834
Registered: Oct-05
nice phil.


Platinum Member
Username: Nyyfan13

15 Mag USA

Post Number: 10081
Registered: Jul-06
Good job Phil. Real good bud.


Gold Member
Username: Bernymac

Cambodia

Post Number: 4147
Registered: Sep-04
chill out with the body filler phil lol. Take it easy. Don't use more hardener than you need too. Looks good. Hope you finish them soon.


Gold Member
Username: Philly306

James Carrol is the re...

Post Number: 1225
Registered: Apr-07
Yea berny as soon as i layed down the filler i knew i put way too much, but it hardened before i could do anything about it. The second pod has alot less on it but still has too much.
I actually put less hardener than what was recomended since it didn't stay in a gel state for very long.

I'll just have to sand........ALOT. lol


Silver Member
Username: Evildoughboy08

Toledo, OH US and A

Post Number: 107
Registered: Jun-08
awesome job phil


Bronze Member
Username: Snacks

Quincy, Florida USA

Post Number: 33
Registered: Jul-08
looks good


Silver Member
Username: Hittin1

Lake Charles, La. United States

Post Number: 804
Registered: May-07
sweet


Silver Member
Username: Exige

CDT, Audiopulse Dealer

Post Number: 547
Registered: Nov-07
Nice work Phil!


Gold Member
Username: Joebruce

TC Sounds/DLS

Post Number: 2255
Registered: May-04
Lookin good Phildoe!
