Who wants to design a box for me?
|
Gold Member Username: JakeyplaysbassSt. Louis, MO / ASU Post Number: 2877 Registered: Jul-05 | Need the designs by friday for a single 15 ported. If interested lemme know and ill give you more info. |
|
Gold Member Username: Van_manBoston South, MA Post Number: 4071 Registered: Mar-06 | post some sub specs and some size, tuning you want to work with. |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO / ASU Post Number: 2878 Registered: Jul-05 | Must be 44wide by 19 or 20 high. Depth doesnt matter. ~70sqin of port tuned to 32-33hz. ~3.5cuft after displacement. Also name what program you use because I dont want REs or anything like that. It needs to be very accurate. |
|
Gold Member Username: Van_manBoston South, MA Post Number: 4073 Registered: Mar-06 | aj vented diseniger. |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO / ASU Post Number: 2880 Registered: Jul-05 | This is what i found to be the best on REs site... tell me what you think.  |
|
Gold Member Username: Van_manBoston South, MA Post Number: 4074 Registered: Mar-06 | try to dl this program. I hear that re aint to accurate. get the vented one. third down, and compare it to the re one specs. http://www.ajdesigner.com/speaker/index.php |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO / ASU Post Number: 2883 Registered: Jul-05 | Doesnt work for mac... If you wanna do it for me youll be my best friend. |
|

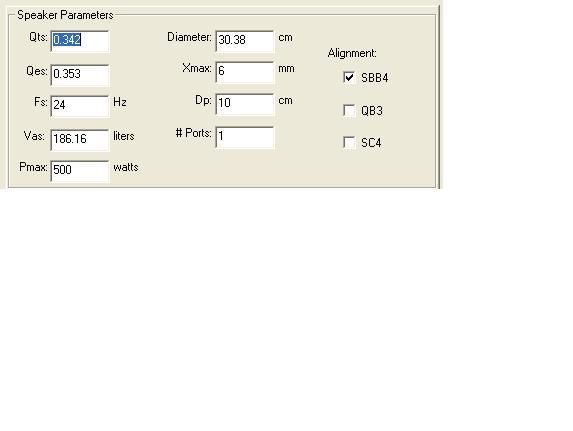

Gold Member Username: Van_manBoston South, MA Post Number: 4076 Registered: Mar-06 | well, this is what i need.  |
|
Gold Member Username: Van_manBoston South, MA Post Number: 4077 Registered: Mar-06 | The following Theile Small speaker parameters are user defined inputs. These values should be inputted by user preference. Alignment: Choose desired alignment SBB4: Good response, Large enclosure, Low tuning frequency QB3: Slightly degraded response, Small enclosure, Lower F3 SC4: Degraded response, Large enclosure, Low tuning frequency NOTES: IMPORTANT: MAKE SURE THE UNITS MATCH (e.g. Vas is in liters not cubic feet). Pmax, Diameter, and Xmax are not required for box calculation. They are used to determine the power response curve. Vb, Fb, F3, and Lp will still be valid. Vented designs require tuning. Vented Designer should give a good approximation of box parameters. -------------------------------------------------------------------------------- Calculated Parameters The following speaker/box parameters are calculated: Vb - Volume of box (one to be built) in liters Fb - Box resonance in Hz F3 - Half power frequency in Hz Lp - Length of port in cm NOTES: F3 is the most important parameter. The lower the F3 the lower the bass. A F3 below 50 Hz should be suitable. Vb is the volume of the box. Generally, the lower the bass the bigger the box. For Box Calculator instructions go here. |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO / ASU Post Number: 2884 Registered: Jul-05 | Thanks marc...i think i can get it from here. |
|
Gold Member Username: Van_manBoston South, MA Post Number: 4078 Registered: Mar-06 | ok, good luck. Check that woodlawn thread, lol, its pretty much the box your after. Maybe phil can tweek it for you. |
