Wiring colors



New member
Username: Chex36

Post Number: 8
Registered: May-08
I have a 1995 Pontiac Bonneville. the previous owner cut the plug connections when he installed a new radio. I want to put the factory radio back in but I don't know the wire color codes. Can someone help me?!


Gold Member
Username: Kpa2727

Old Bridge, NJ USA !

Post Number: 1318
Registered: May-07
dmn man way to change radios on two rides.

1989-1990 And Newer
AS VIEWED FROM MATING END OF CONNECTOR
A B C D E F G H I J
K L M N
Typical GM Factory Typical New Radio
Pin What It Is In Dash Wire Color Equivalent Wire Color
A Left Front Spkr (-) Light Gray White w/ Black Stripe
B Left Front Spkr (+) Tan White
C Right Front Spkr (-) Light Green Gray w/ Black Stripe
D Right Front Spkr (+) Dark Green Gray
E Ground Wire Black Black
F Not Used
G Headlight Dimmer Wire Gray Orange (if available)
H Power Antenna Turn On Pink (if available) Blue
I +12 Volt Ignition Wire Yellow Red
J +12 Volt Battery Wire Orange Yellow
K Right Rear Spkr (-) Light Blue Purple w/ Black Stripe
L Right Rear Spkr (+) Dark Blue Purple
M Left Rear Spkr (-) Yellow Green w/ Black Stripe
N Left Rear Spkr (+) Brown Green


New member
Username: Chex36

Post Number: 9
Registered: May-08
Hello. I have a 1992 Ford Explorer and I need the color codes for the factory stereo and amplifier. Thanks in advance!


Gold Member
Username: The_image_dynamic

San Diego, California

Post Number: 4119
Registered: Dec-06

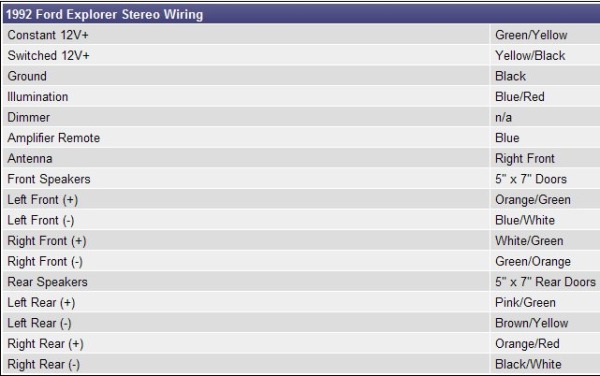

Upload


New member
Username: Chex36

Post Number: 10
Registered: May-08
Thanks Keith! Keeping busy. mine and my wife's car.


Gold Member
Username: Kpa2727

Old Bridge, NJ USA !

Post Number: 1371
Registered: May-07
acctually thats brad u need to thank for that one, so Thanks Brad !.


New member
Username: Peteracer

Post Number: 1
Registered: Jul-08
i have a 2004 grand am with the monsoon upgrade. i need to know how to put in a 4 channel line converter. i replaced all speakers and ran new wires to the amps in the trunk.
