What does Clipping sound like...



Gold Member
Username: Dakangofkrunk16

Boca Raton, Florida

Post Number: 1609
Registered: May-07
I think my friends system is clipping he dunno what it means i try to explain he doesn't believe me he wants em to turn gain all the way up.. someone explain in depth what it sounds like so he can see this and will understand..

Thanks


Gold Member
Username: Denali_on_22s

I get Bucks like Milwa...

Post Number: 5561
Registered: Feb-06
the sub or components or whatever is being clipped normally just cut in and out. its not really a distinct sound, but you should know when it's happening.


Silver Member
Username: Ducka

Shelby Township, MI United States

Post Number: 269
Registered: Jan-08
From what I know/ have heard, clipping is when the bass goes past what the sub can handle and the sub just kind of playes a flat line at the peak of what it can handle. The best way I can describe what it sounds like is just bad... since bass is a sine wave it "clips" the peak of the wave off. From my experience it is prett difficult to tell unless it is clipping badly(it will sound very Sh1tty)

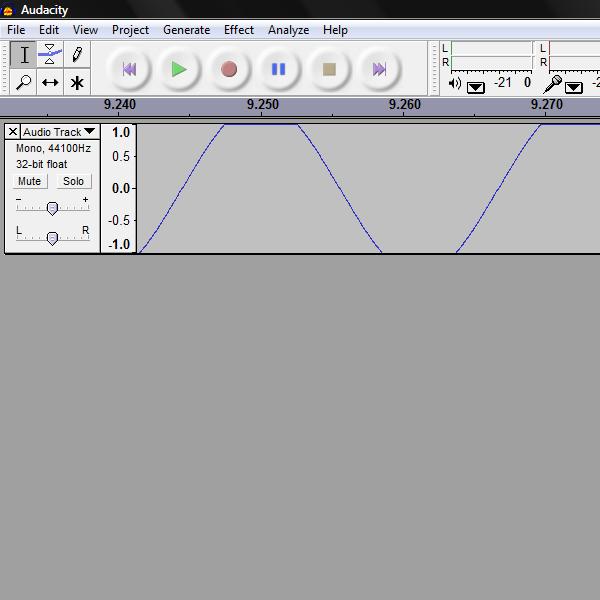

This is what clipping looks like.
Upload

The best way(IMO) to set the gain so that it does not clip is to use a multimeter and figure out how many volts should be produced for how many watts the system produces... My friend has a website that can calculate all of this for you, but unfortunately he is not online right now. I will get the link for you as soon as I can though.

Hope that this helps.

p.s. clipping is bad lol, but it sounds like you already know that.


Silver Member
Username: Ducka

Shelby Township, MI United States

Post Number: 270
Registered: Jan-08
http://www.subwoofertools.com/forum/setgain.asp

^thats the link for setting the gain


Silver Member
Username: Gh0st_31

USF, FL USA

Post Number: 763
Registered: May-06
Kevin you hit it right on the nose


Gold Member
Username: Big_edge_head

Milwaukee, Wisconsin

Post Number: 2008
Registered: Mar-07
http://www.icixsound.com/iv/view_video.php?viewkey=c13838ff95ccfa94cebd&page=1&v iewtype=&category=mv

That video might help your friend a little.


Silver Member
Username: Ducka

Shelby Township, MI United States

Post Number: 272
Registered: Jan-08
Hip Hip Hooray for me! lol


Diamond Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 20556
Registered: Oct-05


Gold Member
Username: Loc_out

Santa Ana, Ca Resonant Eng...

Post Number: 2002
Registered: Feb-05
thanks for the vid


Gold Member
Username: •cam•

BC Canada

Post Number: 2441
Registered: Nov-06
I imagine a sub that was bottoming out really hard could clip but usually it's the amplifier that produces a clipped signal.


Gold Member
Username: Bernymac

Cambodia

Post Number: 3902
Registered: Sep-04
Kevin ftmfw, great explaination.


Gold Member
Username: Dakangofkrunk16

Boca Raton, Florida

Post Number: 1610
Registered: May-07
yeai know about subwoofer tools.... he wasnt letting me use that sht until now.. thanx for explaining it.. know i can set his sht right


Bronze Member
Username: Peakohm

Post Number: 19
Registered: Apr-08
good post kevin. in real life for me it reminds me of a "scratchy, cracking up" kind of sound.


Silver Member
Username: Ducka

Shelby Township, MI United States

Post Number: 273
Registered: Jan-08
Im so proud of myself haha


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 16269
Registered: Jun-06
It sounds like:



Clip clip clip clip......









When it sounds like the signal is cut short or distorted you should stop. Some azzholes think this is music.


Platinum Member
Username: Chaunb3400

All he does is catch t..., Alabama U.S.

Post Number: 14188
Registered: Jul-05
Good Info Kevin but I never use a dmm to set my gain...I set it by ear...


Gold Member
Username: Cblaze

Rock island, Tenesssee Us

Post Number: 2051
Registered: Sep-07
clippin=distortion and u can not hear it clippin till its clipping pretty hard.even at 5% its not supposed to be audiauble


Gold Member
Username: Cblaze

Rock island, Tenesssee Us

Post Number: 2052
Registered: Sep-07
thats for class d .class a/b its easier to hear clippin.or supposed to be


Bronze Member
Username: Peakohm

Post Number: 22
Registered: Apr-08
well chauncey we don't all have l33t skillz like you to get it perfect


Gold Member
Username: Philly306

James Carrol is the re...

Post Number: 1075
Registered: Apr-07
this is what clipping sounds like
http://youtube.com/watch?v=v_enYxIftwE


Gold Member
Username: Nyyfan13

15 MAG USA

Post Number: 9436
Registered: Jul-06
And this is how a person would react when "hearing" a sub clip
http://youtube.com/watch?v=W1l-_cAXAVE&feature=related


Btw Phil, lmao at your "city"


Gold Member
Username: Big_edge_head

Milwaukee, Wisconsin

Post Number: 2016
Registered: Mar-07
sad panda:-(


Gold Member
Username: Denali_on_22s

I get Bucks like Milwa...

Post Number: 5579
Registered: Feb-06
lmao phil, at bpth your city (mainly) and the funny baby... BING!


Gold Member
Username: Tejcurrent

Post Number: 1311
Registered: Apr-07
If you can find a shop with an oscilliscope they can help you actually look at the wave and make sure it has no clipping.

Kevin D put it in a nut shell I guess. Clipping will cause your subs to become warm or hot (or even mess them up) depending on the severety of the clipping, and can damage your amp as well.

There's so much more detail I really wish I could add in here to clarify what I'm saying, I'm just too tired tonight.
