Could someone please help with an enclosure design
|
Silver Member Username: Hittin1LakeCharles LA., La Post Number: 150 Registered: May-07 | Alrioght... I have 2 12" solo x's in a huge ported box... I have decided to move them outta my pontiac montana and into my 1999 jeep charokee.Instead of having them in 1 box...I want to build two indentical boxes that will fit into cargo space of jeep while staying below window line. I want to run only one sub full time and both only for competition. When not in use the other will likely stay in van... According to my calculation I have a tad bit over 14^3 to work with. Anyone have an idea for what size and tuning would be optimal for 1- 12"solo x in a spl setup? the enclosure can be no wider than 22 in. no taller than 19 in. no longer than 30 in. I will build them myself.. I just need a design that would work for my subs and vehicle. Any help would be awfully nice... Since there will be 2 seperate enclosures port and sub placement will be inportant.. The two setups that I can think to be optimal for this would be 1- sub up ,port back 2- sub back, port up I am open to other ideas... of course. again... thanks in advance! sub specs are... Model: s12x/2 dual 2 ohm VC Nominal Impedance [Zn], ohm [per coil] (2) Resonance Frequency [fs], Hz (37.81) Sensitivity [SPLo], dB @ 1W, 1m (87.55) Effective Piston Area [Sd], in2 (106.8) Power Handling Watts, Peak (RMS) 5000 (2500) Effective Excursion [EXmax], in (mm) .906 (23) DC Resistance [Re], ohm (2Ω model) [coils in series] 7.17 (4.09) Voice Coil Inductance [Le], mH (4.654) Mechanical Q-Factor [Qms] (10.076) Electrical Q-Factor [Qes] (.458) Total Q-Factor [Qts] (.438) Force Factor [BL], Tm (27.6444) Moving Mass [Mms], g (361) Equivalent Volume [Vas], ft3 (1.1696) Equivalent Volume [Vas], L (33.1245) Net Displacement, in3 (cc)328.32 (5380) Mounting Depth, in (cm)8 9/16 (21.7) Weight, lb (47) |
|
Silver Member Username: Hittin1LakeCharles LA., La Post Number: 154 Registered: May-07 | bump for help...... PLEASE!!!!! |
|
Platinum Member Username: Th3pwn3rPost Number:... Post Number: 7714 Registered: Jul-06 | You should build boxes with interchangeable ports. |
|
Silver Member Username: Hittin1LakeCharles LA., La Post Number: 181 Registered: May-07 | I'll pay if needed(and reasonable).. ummmm hello... I'm ready to cut some MDF!!!!! P.P.P.P.PLEEEEEAAAASE!!!!!!!! |
|
Silver Member Username: Hittin1LakeCharles LA., La Post Number: 186 Registered: May-07 | bump |
|
Platinum Member Username: •cam•BC Canada Post Number: 2393 Registered: Nov-06 | If you're willing to pay, talk to Pete Kulicki. I don't believe there is a more knowledgeable and experienced designer whose services you can enlist. http://Hexibase.com |
|
Platinum Member Username: Th3pwn3rPost Number:... Post Number: 7773 Registered: Jul-06 | I would advise you to make enclosures that use Aero ports for what you want to do. |
|
Platinum Member Username: Th3pwn3rPost Number:... Post Number: 7775 Registered: Jul-06 | I would advise you to make enclosures that use Aero ports for what you want to do. This way you can change to your "daily" tuning when you need to. |
|

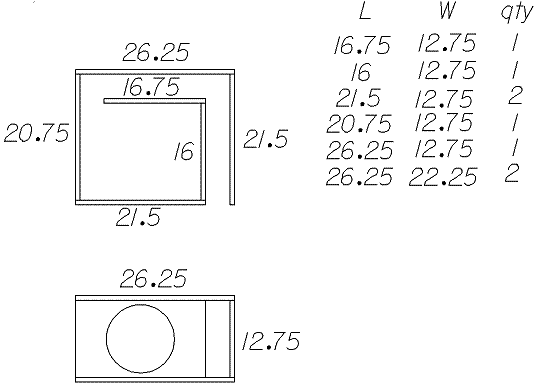

Platinum Member Username: DrivingrecklessDD 9515f, 148.2 db Mov... Post Number: 5751 Registered: Apr-06 | have you tryed editing your posts ROB? or is post whoring fun?? NOTE: it is wider then 22"s 2.5 cubes gross 34hz 50 sq inches of port.. and old design of mine that might help you  |
|

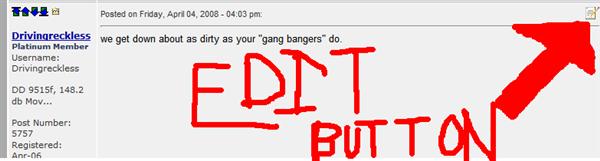

Platinum Member Username: Th3pwn3rPost Number:... Post Number: 7812 Registered: Jul-06 | "have you tryed editing your posts ROB? or is post whoring fun?? " Yes, I've TRIED editing but it takes way too long, it's faster to make another post and yes, post whoring IS fun. Have you tried not being so ugly or is looking like a monkey fun? Does your family tree look like it lived in a tree? |
|
Platinum Member Username: DrivingrecklessDD 9515f, 148.2 db Mov... Post Number: 5753 Registered: Apr-06 | maybe you and chad should go up in a tree and butt f0ck each other in the a55 till you both start to bleed... |
|
Platinum Member Username: Th3pwn3rPost Number:... Post Number: 7814 Registered: Jul-06 | "maybe you and chad so go up in a tree and butt f0ck each other in the a55 till you both start to bleed..." Lol, you'd like that wouldn't you David? Where do you kids come up with these ideas  |
|
Platinum Member Username: DrivingrecklessDD 9515f, 148.2 db Mov... Post Number: 5754 Registered: Apr-06 | yes i would...video tape it too....Google |
|
Platinum Member Username: Th3pwn3rPost Number:... Post Number: 7816 Registered: Jul-06 | I knew you would. I'm sorry to inform you of this but I can't help you with your homoerotic s3xual fantasies. I'm not sure how you and your Florida home boys get down over there but here I'm as straight as an arrow. Sorry bro. |
|
Platinum Member Username: DrivingrecklessDD 9515f, 148.2 db Mov... Post Number: 5757 Registered: Apr-06 | we get down about as dirty as your "gang bangers" do. |
|
Platinum Member Username: •cam•BC Canada Post Number: 2395 Registered: Nov-06 | Wow.  |
|
Platinum Member Username: Denali_on_22sI get Bucks like Milwa... Post Number: 5181 Registered: Feb-06 | david, you're a tool. |
|
Silver Member Username: Hittin1LakeCharles LA., La Post Number: 190 Registered: May-07 | Drivingreckless. Thanks bro but that enclosure is to small. I would like at least 5+^3 if possible... But keep that same tuning.. Thanks for showing me your old design.. Any idea's? And it has to be no mre than 22 in wide in oder to put 2 of them side by side. |
|
Silver Member Username: DuckaShelby Township, MI United States Post Number: 244 Registered: Jan-08 | Have you tried subwoofertools.com/the RE website or do you want it to be done by a person professionally? |
|
Silver Member Username: Hittin1LakeCharles LA., La Post Number: 195 Registered: May-07 | iwant to make sure it is done right,,, .tuung and cu ft. ect... |
|
Silver Member Username: DuckaShelby Township, MI United States Post Number: 245 Registered: Jan-08 | Alright, well im not the man to ask then lol |
