RL-s 15 Cab Design to be built
|

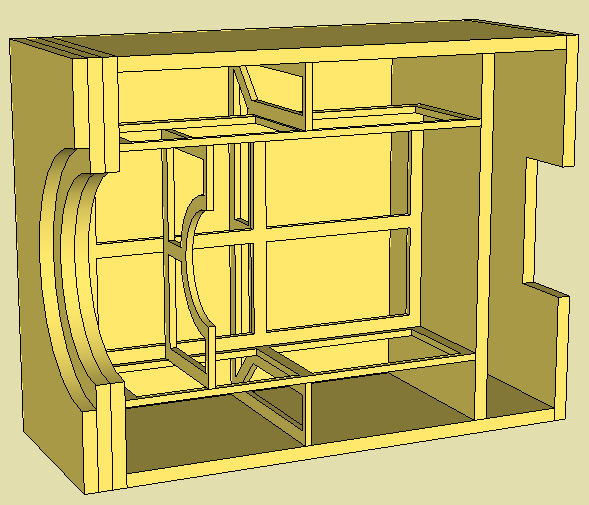

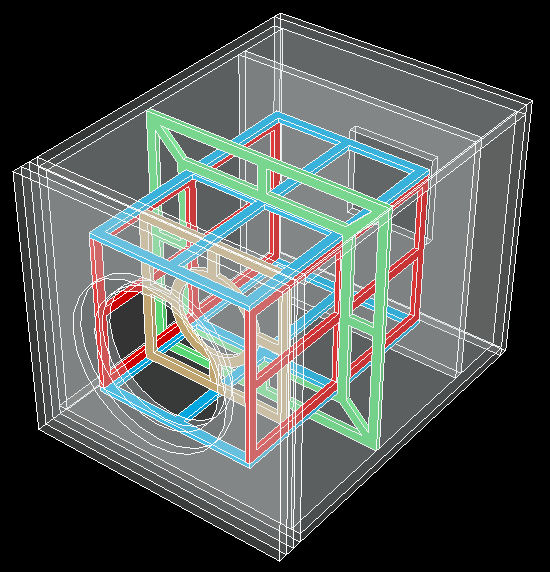

Silver Member Username: Phil_salisburyPost Number: 623 Registered: Sep-06 | This by far is will the biggest cabinet I have ever designed and to be built. The customer is using a RL-s 15 for Home Audio. The cabinet is 29" w x 29" h x 38" d and the entire beast is 1" MDF - Triple Baffled w/ the subwoofer recessed and braced like a solid brick sh!t house. The back of the cabinet is within the interior of the cabinet with a 6" space to the exterior back for mounting an plate amp. The space isolates the plate amp for the enclosure interior. The customer requested the bracing to be pure overkill to deaden the enclosure. A custom grill cover will be done that slips within the recess cutout which the front part of the grill cover will protrude beyond the front baffle. The grill cover will be held in place with rare earth magnets flush mounted into the grill cover flange and front baffle. And to complete it the exterior with be done with Mahogany Quarter Sawn Veneer. Cabinet Thru View  Side Cut View  Design Draft Details: http://s29.photobucket.com/albums/c251/MrCabinetry/Sound%20Splinter%20RL-s%2015%20Audio%20Cabinet/ |
|
Gold Member Username: Stateprop486PA Post Number: 1272 Registered: Jan-08 | wow that looks very complex phil. lol but ur great at what u do so im sure ull pull it off. also i did what u said and added polyfill to that area in the box and it sounds alot of a heck better. haha thanks. |
|
Gold Member Username: Nyyfan1315 MAG USA Post Number: 9075 Registered: Jul-06 | Damn Phil. That looks awesome. Post some pics when you complete it man. |
|
Gold Member Username: Dakangofkrunk16Boca Raton, Florida Post Number: 1426 Registered: May-07 | Holy Crap that looks SEXY |
|
Silver Member Username: Phil_salisburyPost Number: 624 Registered: Sep-06 | Yanks, I'll be taking alot of progress build pic's of the enclosure because the customer requested all stages of the build be documented. |
|
Platinum Member Username: BestmankindHttp://www.rdaudio.net... Post Number: 19751 Registered: Oct-05 | looks like you built a perfect home for that incredible sub. |
|
Gold Member Username: Loc_outSanta Ana, Ca Resonant Eng... Post Number: 1896 Registered: Feb-05 | Looking good Phil. Can wait till you finish it. |
|
Gold Member Username: Nyyfan1315 MAG USA Post Number: 9083 Registered: Jul-06 | Cool Phil. Looking forward to seeing it bud. |
