Side Port help Please
|
Gold Member Username: JtownTeam RD, Texas Post Number: 2380 Registered: Mar-07 | I was wondering if someone can draw me up a box for a 12" Alpha v1 it needs to be 2.5cuft net, at 32hz, port firing to the side, sub firing to the hatch. total dimensions/space available" 37"w 15"h 15"d due to the fact that it needs to be firing to the side, the box really shouldn't be much wider than 33" in which case the depth can be increased to accomodate that. Thanks in advance for the help fellas |
|
Platinum Member Username: BestmankindHttp://www.rdaudio.net... Post Number: 19008 Registered: Oct-05 | whats the displacement of the alpha? |
|
Platinum Member Username: BestmankindHttp://www.rdaudio.net... Post Number: 19009 Registered: Oct-05 | well a 30 x 15 x 15 would give you approx 3 cuft. with the driver displacement and the port displacement, you should be at around 2.5 cuft. maybe a bit more. |
|
Gold Member Username: JtownTeam RD, Texas Post Number: 2385 Registered: Mar-07 | I don't know for sure, since it's no longer on the site. but I know that the displacement is just slightly less than the 2nd version of the alpha. sorry |
|
Gold Member Username: Andrew571Stillwater/Edmond, Oklahoma USA Post Number: 1523 Registered: Oct-05 | Wow the alpha is taking E by storm. |
|
Silver Member Username: Stateprop486PA Post Number: 839 Registered: Jan-08 | yea they makin it rain Alphas. lmao |
|
Gold Member Username: JtownTeam RD, Texas Post Number: 2386 Registered: Mar-07 | well......I've had this alpha since the beginning of last summer...so....I just have been experimenting with different boxes lately. hey chad, did you get anything drawn up at all? |
|
Platinum Member Username: BestmankindHttp://www.rdaudio.net... Post Number: 19016 Registered: Oct-05 | i don't have that program that draws it up in 3D. what car is this going in btw? |
|
Gold Member Username: JtownTeam RD, Texas Post Number: 2388 Registered: Mar-07 | 4dr blazer. no need to "draw" it up, I just need to know dimensions for the box and port. you could use paint for a general idea, or I can generate something once i get the dimensions and ask you if that's what you had in mind |
|
Gold Member Username: JtownTeam RD, Texas Post Number: 2389 Registered: Mar-07 | bump |
|
Bronze Member Username: DuckaShelby Township, MI United States Post Number: 80 Registered: Jan-08 | http://www.subwoofertools.com/forum/ported-box.asp?Ew=15&Eh=15&Dia=6&Xmax=18.2&V d=.071&NumW=1&Vb=2.5&Fb=32&Qts=&Vas=&Fs=&CE=0 ^that site might help... Ive used it alot |
|
Gold Member Username: InsearchofbassPost Number: 8232 Registered: Jun-04 | sorry thieves I had to send my pc in to get fixed but ill help you now while im on |
|
Gold Member Username: JtownTeam RD, Texas Post Number: 2390 Registered: Mar-07 | thanks Kevin, I hadn't used subwoofer tools because I didn't wanna mess around with it to get a side firing port. sean, no problem, I was wondering why I hadn't heard from you in a few days. I'd rather not get into the external interchangable right now, just because I don't have the time to make sure it is done right. But I wouldn't mind doing the original plan we talked about: regular interchangable port, slot being 32hz, and aeros being ~47hz so yeah, just for the sake of ease right now, can you throw me some externals for a simple interchangable port, as we talked about? by tonight or even by mid day tomorrow would be absolutely great! Thanks again sean, for all the help |
|
Gold Member Username: JtownTeam RD, Texas Post Number: 2394 Registered: Mar-07 | bump |
|
Gold Member Username: InsearchofbassPost Number: 8234 Registered: Jun-04 | thieves im sorry but somethings come up and I wont have time to help you design your box |
|

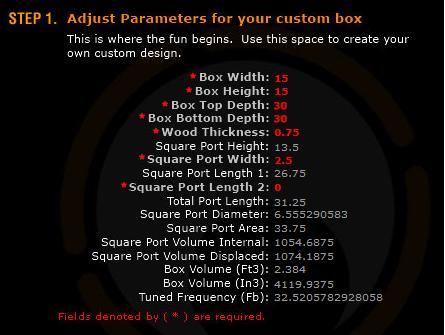

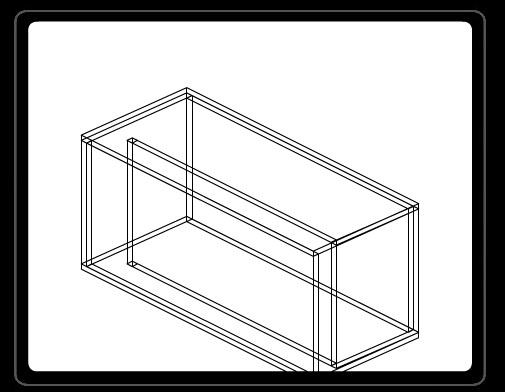

Platinum Member Username: BestmankindHttp://www.rdaudio.net... Post Number: 19060 Registered: Oct-05 |    |
|
Gold Member Username: JtownTeam RD, Texas Post Number: 2396 Registered: Mar-07 | no problem sean, thanks chad! I'm gonna right this stuff down and get to it here in a few minutes. |
|
Platinum Member Username: BestmankindHttp://www.rdaudio.net... Post Number: 19068 Registered: Oct-05 | actually make the box 32inches wides. let me get another one for you. |
|
Platinum Member Username: BestmankindHttp://www.rdaudio.net... Post Number: 19069 Registered: Oct-05 | this is better. a bit bigger. if you want to tune a bit higher, then just shorten the port a bit.    |
