Reece's box ideas



Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4304
Registered: Feb-06
Upload
Upload

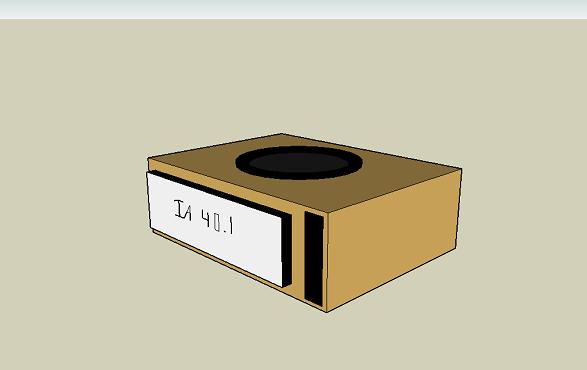

I want to double, maybe triple, baffle and pad under the amp so it's not rattling like crazy. I'm going with blue LEDs to shine through the plexi window that will sit between my back captains chairs and i'm going to probably do a battery rack on each side of the box for symmetry. Its going to be around 4.2 cubes after sub and port displacement tuned to 33 hz. I am debating on using aeros, going flared slot, or just regular slot.

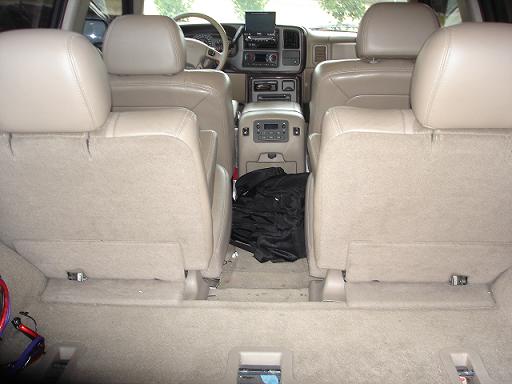

Also, here's a picture of the area it will be going into so you have an idea of what I mean.

Upload

Thoughts?


Silver Member
Username: Surferdude9371

Im BTL Bumpin

Post Number: 708
Registered: Mar-07
what sub is this for?


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4305
Registered: Feb-06
TC 5200 15


Silver Member
Username: Surferdude9371

Im BTL Bumpin

Post Number: 709
Registered: Mar-07
looks like a cool idea to me neons in the box?


Gold Member
Username: Jkidder

Gunshine , State Flawda

Post Number: 3250
Registered: Nov-05
i wouldn't risk putting the amp on the box. or hook everything up and hold your hand on the layers of pad and if you feel any rattle on your hand at all (which i believe you will) don't mount it. looks sweet though


Silver Member
Username: Surferdude9371

Im BTL Bumpin

Post Number: 711
Registered: Mar-07
the side of the box isnt that big shouldnt rattle verymuch


Gold Member
Username: Big_edge_head

Milwaukee, Wisconsin MY SUBS GET ...

Post Number: 1507
Registered: Mar-07
couldnt you make an amp rack though? or is there no room...


Gold Member
Username: Andrew571

Stillwater/Edmond, Oklahoma USA

Post Number: 1474
Registered: Oct-05

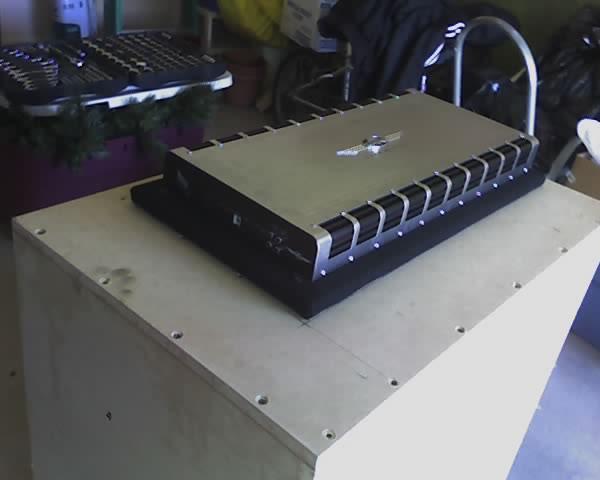

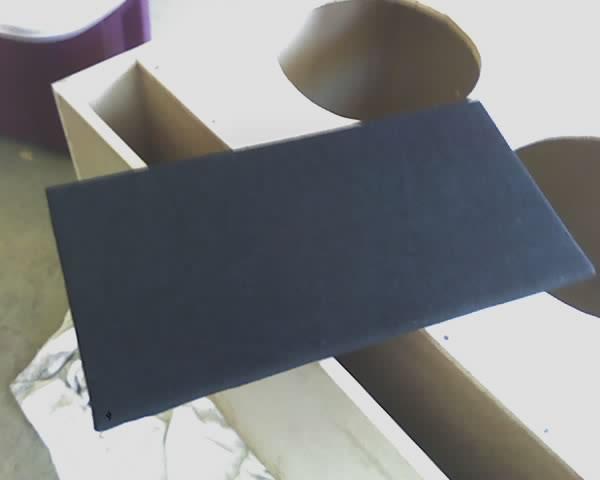

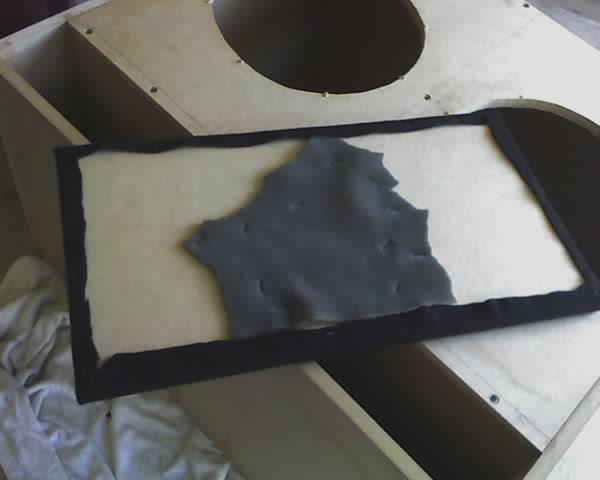

I have my amp mounted on A second peice of MDF with foam between that peice and the box side... as well as carpet over the second peice...

No rattling...


Upload


Upload


Upload


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4306
Registered: Feb-06
yeah i was thinking of maybe doing something like that driz. i don't wanna do a rack because i want to have some room for other sh!t in the back of my car, and there's about 20 inches to the hatch. the amp is so fuggin big it's pretty incovenient.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4307
Registered: Feb-06
and yes as mentioned before there will be LED light bars in the box.


Platinum Member
Username: Bestmankind

Los Angeles, CA

Post Number: 18638
Registered: Oct-05
i really like where you are going with this reece. that plan is very nice.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4309
Registered: Feb-06
hell yeah i get props from chadleezy. im doing tan OEM carpet to match my ride as well.


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 5552
Registered: Apr-06
reece i think you should do sub up port up.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4310
Registered: Feb-06
why port up?


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 5553
Registered: Apr-06
just b/c ive heard in trailblazers thats the loudest combo..termpro ftw.


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 14039
Registered: Jun-06
"and yes as mentioned before there will be LED light bars in the box."




I've GOT to see pics of this when you're done.


Platinum Member
Username: Bestmankind

Los Angeles, CA

Post Number: 18654
Registered: Oct-05
led light bars ftw.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4312
Registered: Feb-06
haha paul, there will be plenty of pics.

Driving i dont have a trailblazer. i have a yukon.


Gold Member
Username: Skibum12189

Cleveland

Post Number: 2652
Registered: Mar-06
reece, plans are lookin sweet dude...

always been a fan of the denali's personally...

that port wall won't interfere with that plexi window will it?


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4314
Registered: Feb-06
i'm thinking no. that's part of the reason why i am debating going with aeros or flared. could i go down a little bit in box size if i go with aeros?


Platinum Member
Username: Bestmankind

Los Angeles, CA

Post Number: 18659
Registered: Oct-05
if you gonna go with some aeros then get those 6 inch ones.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4319
Registered: Feb-06
yeah that's exactly what i was thinking, chad! any clue if i could make the box smaller?


Platinum Member
Username: Bestmankind

Los Angeles, CA

Post Number: 18673
Registered: Oct-05
dont' make it smaller. just keep the specs you have planned.

if you do aeroports, you probably need at least 2 6inch aeros.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4325
Registered: Feb-06
well i need more room on the sides for battery racks and as of now i only have 7 inches on each side and that is WAY too small... as of right now it's going to be 6.473 gross and the specs are 20 h x 34 w x 20 d. I could probably go 24 or 25 deep and cut the width to 30, though. that's probably what i'll do.


Gold Member
Username: Andrew571

Stillwater/Edmond, Oklahoma USA

Post Number: 1480
Registered: Oct-05
is there a reason u wont make it any taller?


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4330
Registered: Feb-06
it's prefectly level with my backseats when they are leaned back and it's right on point with the window line.


Gold Member
Username: •cam•

BC Canada

Post Number: 1998
Registered: Nov-06
Flaired aeros might work.

http://www.soundground.ca/forum/showthread.php?t=10

That link describes how to calculate the decrease in area you can get with flairs.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4331
Registered: Feb-06
thanks man.


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 2207
Registered: Mar-06
gonna look sweet man. Why wouldnt he make it smaller if he used areos? Those would take up less box space and he could make it smaller for the batteries. Use areos, make the box 3" deeper and downsize it to account for the areos and I bet you could fit the batts in


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 5555
Registered: Apr-06
oh lol...my bad...


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 4188
Registered: Jan-06
http://web.archive.org/web/20070216022836/www.tcsounds.com/tc5200.htm


Gold Member
Username: The_image_dynamic

San Diego

Post Number: 3485
Registered: Dec-06
OK I rarely comment in box threads but don't go with aero's for this. With a driver as brutal as this one is, slotted is going to give you many advantages. These include better cab bracing, no turbulence inside the box caused by the port tube, and no chuffing and port noise externally. There is a reason nearly all high output concert boxes are slot ported. The BL on the 5200 is insane and there is going to be some furious air wanting out of that thing... let him breathe. Go with a wide slot and flare it you know how. 1" MDF all around with a double baffle.


Gold Member
Username: Mj23dynasty

They Love 2 Hate Me, Most Hated a... USA

Post Number: 1546
Registered: Oct-07
Yea reece thts a pretty expensive amp u got there I wudnt want to even risk hurting it if tht were me. I think u should make a custom amp rack on the side of ur "trunk" like a vertical peiece of mdf on the side. I wud post a pic of what I'm tlkin bout but I'm @ work if u really want to kno ill post up later. Good luck


Gold Member
Username: Insearchofbass

Post Number: 8113
Registered: Jun-04
something ill throw out too.....consider a external slot port if you can... it will make the box size smaller for the subwoofer but you can run the port any way you want and mount your amp somewhere in that layout...if you want an idea of what im talking about look at troy's build for his wifes car...you dont have to copy it just draw your visuals from it...this will also cut down on any port turbulence issues and maybe even give you a chance to setup a swappable port


Silver Member
Username: Mesodumm

Tri-City, Az Usa

Post Number: 359
Registered: Apr-07
Your Yukon and my Escalade look almost the same inside! That box is going to sound sweet! I put 2 12" in mine and i was killer! Good Job!!


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4345
Registered: Feb-06
im not going external aero because it doesnt look good, and brad thanks for the info. the design JD made me called for flared with a lot of port area.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4373
Registered: Feb-06
okay, so here's the final set on my box (i think). gonna go 20 h x 30w x 24d, sub and port up, port is 22.5 x 3 x 29.3 long. considering doing plexi on both sides now. do yall think i should just stick witht he plexi just facing the hatch or just facing between my captains chairs and leave the back of the both just carpeted.


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4374
Registered: Feb-06
forgot to mention the port is going to be flared slot port


Gold Member
Username: Jkidder

Gunshine , State Flawda

Post Number: 3283
Registered: Nov-05
should be badasssssss. pics of the design??


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4378
Registered: Feb-06
i havent got pics of the design exactly yet, but i was hoping to get some feedback on the design and if its a good one.


Gold Member
Username: Insearchofbass

Post Number: 8168
Registered: Jun-04
Reece...If you design the external port right it will be flush with the box similar to troys...thats what I was thinking of when i said it


Gold Member
Username: Denali_on_22s

The kids love my rhyme...

Post Number: 4379
Registered: Feb-06
oh okay.
