this is where i got tonight. its very cold out and i didnt feel like going back out to cut the circles with the router. so tommrow i shall do that and finish her up.

Plans(inverted color showed up better)
Upload

Terminal cups i am thinking of using
Upload

1.25" dowel for bracing
Upload

Circle jig test
Upload

all of the peices that fit between the top and bottom
Upload

the top and bottom
Upload

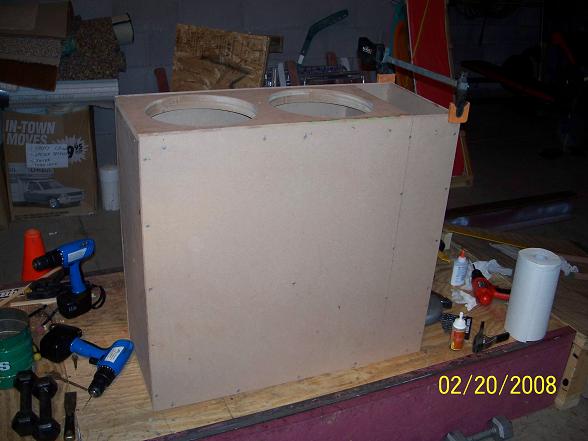

Progress as of tonight(front baffel is not connected yet just balanced)
Upload
Upload

should be done with construction tommrow then i will mostlikely try to cover her with vinal. any tips or instructions on doing so?


Silver Member
Username: Kyle_lowe

Post Number: 823
Registered: Apr-06
cant help ya there sorry
how cold is it though?


Gold Member
Username: Mendonmafia

USA

Post Number: 1253
Registered: Aug-06
when i did al my cuts it was about 20. when the time came to cut the holes it was about 11.


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 2158
Registered: Mar-06
lookin good. Whats going in it?


Gold Member
Username: Mendonmafia

USA

Post Number: 1255
Registered: Aug-06
pair of 12" sx's


Gold Member
Username: Insearchofbass

Post Number: 8047
Registered: Jun-04
you can use the terminal cups but you dont need too ...I like the idea of just wires through the box now (not through the port ever thats just lazy and looks bad)... no small connections to mess with that way... plus you dont have to spend money on buying terminal cups


Gold Member
Username: Th3pwn3r

Post Number:...

Post Number: 6946
Registered: Jul-06
Terminal cups suck :-(


Platinum Member
Username: Bestmankind

Los Angeles, CA

Post Number: 18466
Registered: Oct-05
i like terminal cups. very convinient. i have the banana plugs too. lol.


Gold Member
Username: Th3pwn3r

Post Number:...

Post Number: 6951
Registered: Jul-06
Terminal cups add resistance on the line and sometimes they leak. I would never use them. Nothing beats a direct wire connection.


Platinum Member
Username: Bestmankind

Los Angeles, CA

Post Number: 18467
Registered: Oct-05
true that rob. but i used a terminal cup on my new box for convinience. i used that foam tape stuff and lined it before i installed it. also since i am only running 1000wrms i felt that it was ok. when i used to run more power, i would just run the cables straight.


Gold Member
Username: Mendonmafia

USA

Post Number: 1259
Registered: Aug-06
these cups already have foam gaskets and will also be gorilla glued and caulked the ensure no leaks. only reason im considering them is cus i got them for free. turns out i know someone who works at the stereo shop lol.


Silver Member
Username: Surferdude9371

Im BTL Bumpin

Post Number: 686
Registered: Mar-07
looking good so far man where do you live that its so cold?


Gold Member
Username: Mendonmafia

USA

Post Number: 1260
Registered: Aug-06
lol lovely old Rochester NY. home of kodak.

im almost done btw. pics up of the finished product soon


Silver Member
Username: Surferdude9371

Im BTL Bumpin

Post Number: 687
Registered: Mar-07
wow didnt know it got that cold there. cant wait to see finished box


Bronze Member
Username: Leapoldstotch

Post Number: 57
Registered: Nov-07
dang looks like its going nicely. I wanna make a ported box for my 2 kicker cvrs but idk were to start. Ill have to find some plans first i guess. and how to tune it and what not


Gold Member
Username: Livin_loud

COD4 Addict

Post Number: 2222
Registered: Jan-06
"wow didnt know it got that cold there."

Ny is known for having sh!tty winters. its like f*cking Canada up here.

the build looks to be coming along nicely Mark.


Platinum Member
Username: Bestmankind

Los Angeles, CA

Post Number: 18506
Registered: Oct-05
you guys should move out here. the weather is awesome. lol.

well except for today. it rained a little in the morning so the temperature is in the upper 50s.


Gold Member
Username: Mendonmafia

USA

Post Number: 1263
Registered: Aug-06
im actually done with the construction. i just gotta sand it, paint in the port and then cover it all up. ill post pics in a minuite


Gold Member
Username: Mendonmafia

USA

Post Number: 1264
Registered: Aug-06
Here they are. let me know what you think.

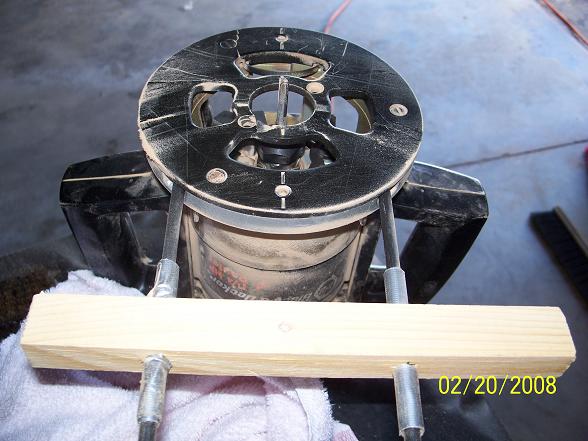

Home made circle jig works awesome
Upload
Upload
Upload

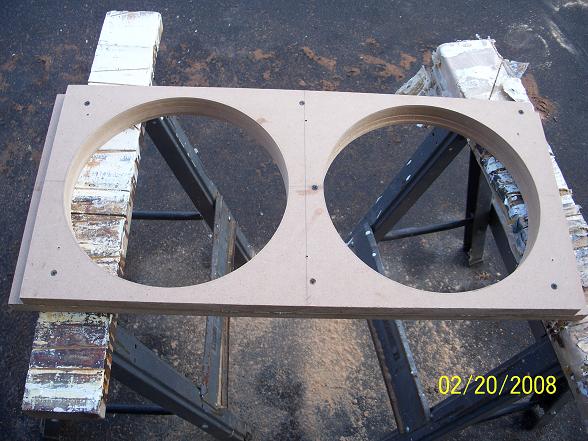

see what i mean

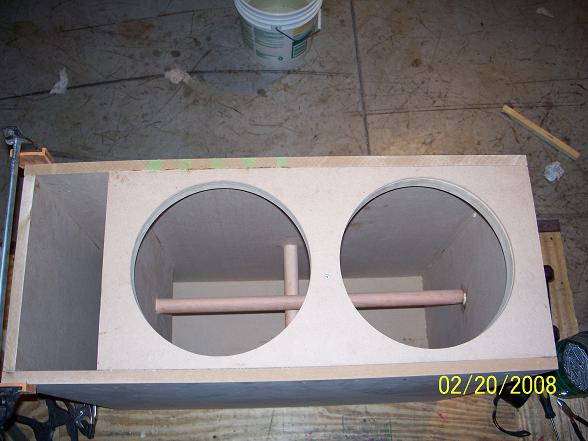

1.25" dowel braces
Upload
Upload
Upload
Upload

port came up an 1/8" short but that only equates to 1.5 sqin small. i still got 61 inches of port

Upload

SX's have a nice large home now!
Upload


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 2163
Registered: Mar-06
looks good mang. congrats


Silver Member
Username: Nickyp0219

Post Number: 681
Registered: Jun-06
very very very veryyyy nicce mark...
good work bud, can't wait to see a vid of these babies...
I like mine, but you got twins


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 4598
Registered: Nov-05
on the terminal cup thing.. anytime ive used them after i put them in and soldered on the wires.. i fiberglassed right over it.. wires won't come off and it won't leak or become a weak spot in the box..

just a lotta trouble vs just using bolts or running wires direct :-)

box looks looks good tho.. what amp will be powering them :-)


Platinum Member
Username: Rovin

4 10 Pioneer...

Post Number: 13176
Registered: Jul-05
good job man - bet its quite heavy

what amp u going to use ...


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 13928
Registered: Jun-06
Nice! Great workmanship.





It looks like a reverse pair of B(.)(.)Bs.



Lol.


Silver Member
Username: Kingandsons07

Lincoln, Nebraska U.S.A

Post Number: 705
Registered: Feb-07
box looks sick


Gold Member
Username: Mendonmafia

USA

Post Number: 1266
Registered: Aug-06
it weighs in at about a full sheet of mdf maybe slightly more.

i am using an american bass xd 2000 for power.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 4601
Registered: Nov-05
nice, i remember powering two SXs with a SS6500d :-)


Gold Member
Username: Mendonmafia

USA

Post Number: 1268
Registered: Aug-06
what color should i paint my port? gloss or flat black?

still havent decided which to go with yet, carpet or vinyl, what do you think will look better where can i get nice stuff of either?


Silver Member
Username: Bonhamd

Northern, Michigan USA

Post Number: 387
Registered: Nov-07
very nice mark


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 4602
Registered: Nov-05
i like to use semi-gloss out of the can and brush it on.. covers better than spray paint.. looks better


Gold Member
Username: Mendonmafia

USA

Post Number: 1269
Registered: Aug-06
i only have gloss black from a can. will that be ok you think or look stupid.


Gold Member
Username: Livin_loud

COD4 Addict

Post Number: 2224
Registered: Jan-06
wow. nice job man. very impressive. that is definitely going to bang hard.

Chad, upper 50's here is like t-shirt and shorts weather lol, though i wouldn't mind living out west.


Gold Member
Username: Mendonmafia

USA

Post Number: 1270
Registered: Aug-06
just mounted my new soung magus cp91 amp to the underside of my decklid and wow running wires in the cold couldnt be more of a b1tch! came out looking great but it was deffinately a pain in the azz. big three is going to be very interesting.

once i get everything up and running and put my car back together i will take pics of my whole system and install and take some vids and post em up in a new thread. then once i get my alt and big three done i can finally let you guys hear MY secret song lol.

everything is finally coming along. I should have all the audio components installed tommrow. alt and big 3 should be done in a few weeks or maybe months the way school has been lately but it should deffinately be totally completed in mid april when i get off from school agian.


Bronze Member
Username: Leapoldstotch

Post Number: 66
Registered: Nov-07
ports can be as simple as that?
were is a good site that can make blueprints/measurements for me?


Gold Member
Username: Mendonmafia

USA

Post Number: 1271
Registered: Aug-06
i didnt use this but a lot of ppl do i guess
http://www.subwoofertools.com/forum/ported-box.asp


Platinum Member
Username: Rovin

4 10 Pioneer...

Post Number: 13184
Registered: Jul-05
flat black in a port looks better than gloss or semigloss IMO ....


Gold Member
Username: Mendonmafia

USA

Post Number: 1274
Registered: Aug-06
guess i gotta go buy some flat black in a can then.
