PG XENON 400.1 guts pics,



Silver Member
Username: Thumpinwith8s

2 RE8s,PG Xenon 400.1, 135.5dbs!!!!

Post Number: 886
Registered: Jun-07

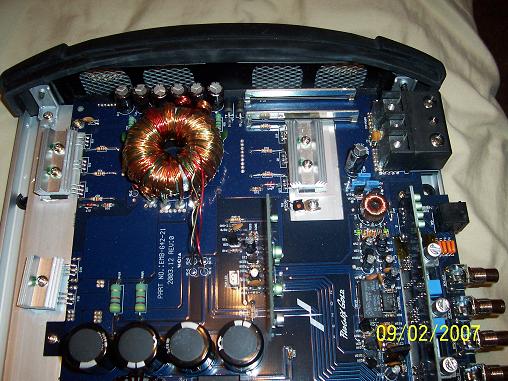

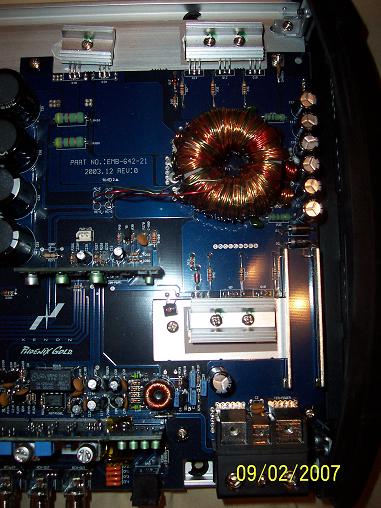

OK, since its not working, I opened it up and took some pics, bad part is that all the soldering is on the bottom and I don't know how to take it apart any farther than I did...If anyone sees anything amiss, please tell me

Upload
Upload
Upload
Upload
Upload


Silver Member
Username: Thumpinwith8s

2 RE8s,PG Xenon 400.1, 135.5dbs!!!!

Post Number: 887
Registered: Jun-07
btw, its even pretty inside....lol


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 3391
Registered: Jan-06
what is wrong with it? Polo..


Silver Member
Username: Thumpinwith8s

2 RE8s,PG Xenon 400.1, 135.5dbs!!!!

Post Number: 888
Registered: Jun-07
its getting power, but won't put out anything...the light on it comes on for a second, it sends one quick shot of power to the subs (I hear a quick thump, and I used a meter too) then the light goes to blinking and no power coming out.


Bronze Member
Username: Splfreak

Post Number: 25
Registered: Jul-07
relatively plain looking imo.


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2799
Registered: Mar-06
Try "bench" testing it. Jump the power to remote, and hook up to the battery with short whips. No Sub. Does it stay on?


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2800
Registered: Mar-06
btw, if you want to take it apart further, you need to remove the screws that hold the fets down to the heatsink, then the board should slide out. I dont advise it, cause there is temp grease and pads under the fets to help transfer heat. and can be a pain to reassemble.


Gold Member
Username: Southernrebel

Monroe, Louisiana 2 DD3515s, 1...

Post Number: 5196
Registered: Mar-04
Shane,

If there are no burns on the board, amps can usually be fixed.

I'll get you that # Tuesday.


Gold Member
Username: Adddisorder

West palm, Florida

Post Number: 5037
Registered: Jan-06
what the f u c k you killed it already? ill talk to you on aim tonight hopefully its not the amp.


Gold Member
Username: Jkidder

IA, DP RD

Post Number: 1868
Registered: Nov-05
basic internals


Silver Member
Username: Thumpinwith8s

2 RE8s,PG Xenon 400.1, 135.5dbs!!!!

Post Number: 897
Registered: Jun-07
a wire came lose and may have shorted agianst the case, I think its an easy fix. Just have to find a place to send it to
