Need help with a box
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 342 Registered: Mar-07 | Well im gonna get another 12" ehqs for now lol, and im going to be building a sealed box for them, can anyone get me a design or like dimensions that i would use for a box. The Specs for the subs are (each one) Sealed Box Size : 1.5cF Vented Box Size : 2.0-2.5cF Qts: .375 Qes: .49 Qms: 1.506 Fs: 25.5 Hz Re: 1.8 Vas: 157 L Mms: 90 g Bl: 7.2 T*m SPL: 89.1 dB Sd: 510 cm^2 Xmax: 9.1 mm Voice Coil : 50 mm |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 344 Registered: Mar-07 | bumppp |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 345 Registered: Mar-07 | bumpp |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 347 Registered: Mar-07 | Anyone =/? |
|
Silver Member Username: MesodummTri-City, Az Usa Post Number: 200 Registered: Apr-07 | Jack, If your asking for box size you need to supply some dimensions of your own, like where it will need to fit into. max height, width & length maybe a picture also. You said another 12" so the box is for 2 subs?? I could give you 15x15x24 but is that going to fit where you need it to. Are you going to like a sealed box sound?? A vented box will sound so much better, tuned just right!! So let us have some numbers and we can help. Thanks |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 348 Registered: Mar-07 | I completely forgot man sorry bout that its actually going to be for 3 and how much harder would building a ported box be and let me go get some measurments real quick i cant find my old ones. 1 sec |
|

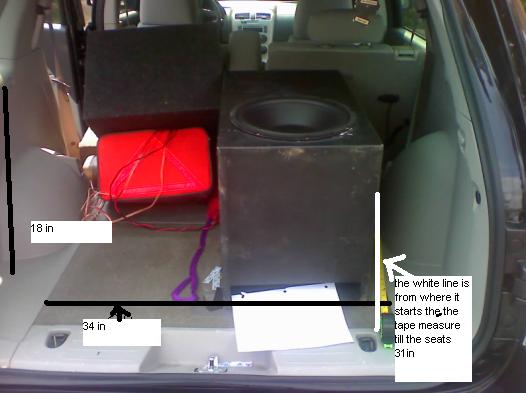

Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 349 Registered: Mar-07 | Ok got em, The width is 34 inches, length is 31 inches and the height is 18, thats window level.it could be adjusted a little higher if needed. |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 351 Registered: Mar-07 | lmao dont laugh at the mess its all cleaned up now =] |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 353 Registered: Mar-07 | http://www.subwoofertools.com/forum/ported-box.asp?Ew=34&Eh=18&Dia=6&Xmax=9.1&Vd =.04&NumW=3&Vb=6.0&Fb=35&Qts=&Vas=&Fs=&CE=0 Does this sound right? |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 354 Registered: Mar-07 | im going to go ported so is that box correct, the 1 above? |
|
Silver Member Username: Jesse59672OKLAHOMA Post Number: 579 Registered: Feb-07 | yeah just make sure everything fits again. its never fun to build something and it ends up too big.. |
|
Silver Member Username: TatonkaPost Number: 804 Registered: Mar-07 | Jack, if you said ur having 3 12" subs, the 30" long baffle will need to be longer... |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 355 Registered: Mar-07 | hmm i see what your saying im not sure why it would say that would fit then. Can anyone get me a design that will work? |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 356 Registered: Mar-07 | Hey Ogle you think you can design me a box, im not sure if you design them or not but you said you've messed with one of these woofers before. |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 358 Registered: Mar-07 | Anyone? |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 361 Registered: Mar-07 | I guess im talkin to my self here but oh well maybe someone will read this, thx to everyone that has helped so far, but is there anything wrong with putting 2 subs on the front baffle and 1 on top? |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 362 Registered: Mar-07 | ttt |
|
Silver Member Username: Big_edge_headMilwaukee, Wisconsin USA Post Number: 543 Registered: Mar-07 | 5 posts in a row |
