Type R box??



Alex Barre
New member
Username: Alexregalgs

Post Number: 1
Registered: Aug-07
Posted on
i want to build a ported box for my type r... ive heard 1.75-2.0 cuft is optimum and tuned 32-35 hz... does anyone have plans or blueprints for this type of box slot or tube ported


Alex Barre
New member
Username: Alexregalgs

Post Number: 2
Registered: Aug-07
Posted on
bump


James Longo
Platinum Member
Username: James1115

Use a simple...

Post Number: 10380
Registered: Dec-04
Posted on
ask Rovin I bet he does.


sean
Gold Member
Username: Insearchofbass

Post Number: 6218
Registered: Jun-04
Posted on
15.5 high 12.25 deep 19.5 wide

with four two inch pvc ports 14.5 inches long for a 34 hz port tune....port it on the side


sean
Gold Member
Username: Insearchofbass

Post Number: 6220
Registered: Jun-04
Posted on
those are internal measurements and should put you at 1.85 cubic feet after the sub and ports are in


keith
Silver Member
Username: Kpa2727

Post Number: 545
Registered: May-07
Posted on

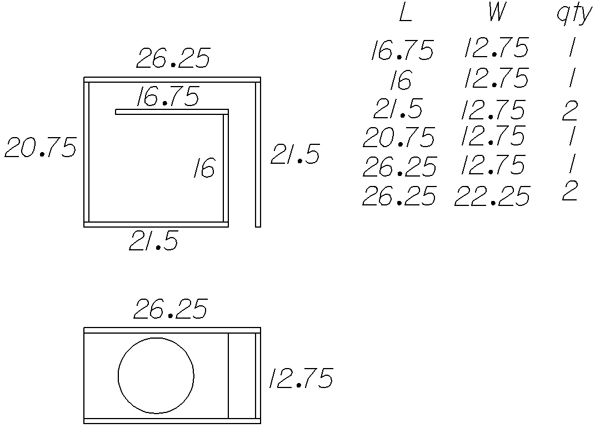

Upload
Upload


that's my design from driving wreckless it pounds like hell.


[...Rovin...]
Platinum Member
Username: Rovin

4 10 Pioneer...

Post Number: 12016
Registered: Jul-05
Posted on
^^u cant have it handle to u any easier than that ......


keith
Silver Member
Username: Kpa2727

Post Number: 546
Registered: May-07
Posted on
sorry i left out, thats 2.25 cubic ft at 32 hz.


sean
Gold Member
Username: Insearchofbass

Post Number: 6230
Registered: Jun-04
Posted on
there you go I stayed away from that design partialy due to easier construction but a slot port is the best way to go
