Probably going to be building my own box.
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 270 Registered: Mar-07 | Im going to be building a box for my 2 12" EHQS, What all would i need. im going to go to home depot and get them to cut the wood because i live in an apartment so i dont have any room to do it my self nor do i have the tools. and can anyone make me a plan for how my box should be? Thanks in advance. |
|
Gold Member Username: Logan__tilleTeam Revolution Post Number: 8820 Registered: Feb-06 | I have a box for 2 12" subs. You could probably have it for a song and a prayer |
|
Gold Member Username: InsearchofbassPost Number: 6050 Registered: Jun-04 | i take it you want a sealed box |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 271 Registered: Mar-07 | Ahh forgot to say ported. |
|
Gold Member Username: InsearchofbassPost Number: 6051 Registered: Jun-04 | with no tools you want ported??? |
|
Gold Member Username: InsearchofbassPost Number: 6052 Registered: Jun-04 | maybe buying one already made is a good idea |
|
Gold Member Username: InsearchofbassPost Number: 6053 Registered: Jun-04 | hey you live in maryland im in york pa |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 272 Registered: Mar-07 | well. by no tools i ment like i dont have saw. i do have the basic things like cordless screw driver, clamps, tape measure, things like that. |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 273 Registered: Mar-07 | Your in York? my father goes down there alot. |
|
Gold Member Username: InsearchofbassPost Number: 6054 Registered: Jun-04 | well I was just saying if you dont have tools you wont be installing pvc ports just wood slot ports and if you dont have exp it can be a little trying |
|
Gold Member Username: InsearchofbassPost Number: 6055 Registered: Jun-04 | what demensions are we working with here |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 274 Registered: Mar-07 | Yeah i see what your saying and i was planning on doing wood slots anyway. And yeah i dont have much exp building sub boxes. |
|
Silver Member Username: Thumpinwith8s2 RE8s,PG Xenon 400.1, New Numbers ... Post Number: 583 Registered: Jun-07 | btw, not that good an idea to get Home Depot to do the cuts, they don't do a very good job |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 275 Registered: Mar-07 | well im not too sure the car is a 2006 Chevy Equinox. Lemme grab a tape measure and go look. |
|

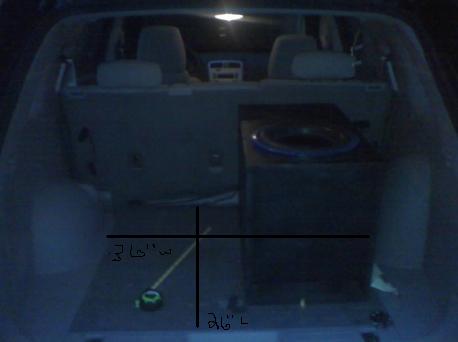

Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 276 Registered: Mar-07 | oh ok, I have a Lowes around me i could check out, and the dimensions are 36" width 26" length |
|
Silver Member Username: Thumpinwith8s2 RE8s,PG Xenon 400.1, New Numbers ... Post Number: 584 Registered: Jun-07 | ha ha, Lowes isnt much better with the cuts...lol ..too bad you don't have a saw so you could do it yourself |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 277 Registered: Mar-07 | Yeah that and being that i live in an apartment doesn't help much either =/ |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 278 Registered: Mar-07 | Anyone think they can get me a plan?? |
|
Gold Member Username: InsearchofbassPost Number: 6062 Registered: Jun-04 | here you go this is easier http://www.subwoofertools.com/forum/ported-box.asp elemental designs says 2.5 cf each big box |
|
Gold Member Username: Nyyfan13Fi SSD USA Post Number: 5698 Registered: Jul-06 | im about an hour away from you get me plans and i (my dad really) mite be able to build it for you |
|
Gold Member Username: InsearchofbassPost Number: 6064 Registered: Jun-04 | ill work em up for ya |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 279 Registered: Mar-07 | Hey yanks the reason why i was gonna build it my self was because it would save me a little money. If he could build it for me i would have the wood for you and bring it down. where do you live at? |
|
Gold Member Username: InsearchofbassPost Number: 6065 Registered: Jun-04 | what is the hieght width and depth you can use 36 x 26 x ????? |
|
Gold Member Username: Nyyfan13Fi SSD USA Post Number: 5699 Registered: Jul-06 | got AIM? hit me on it y2kmonkey33 and i mite be able to work something out with you. ill probably be away but hit me anyway |
|
Gold Member Username: InsearchofbassPost Number: 6066 Registered: Jun-04 | heres what I got so far worked up 21 x 16.5 26.5 no ports in yet 5.00 cubic feet net after port nd subs is what im shooting for ported to 32 hz nice smooth curve on linearteam box program |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 280 Registered: Mar-07 | Ahh sorry about that the hight to the window is 18" but total is 29" |
|
Gold Member Username: InsearchofbassPost Number: 6067 Registered: Jun-04 | I used the golden ratio |
|
Gold Member Username: InsearchofbassPost Number: 6068 Registered: Jun-04 | so it can be 18 tall if so thats great |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 281 Registered: Mar-07 | Yep 18" tall |
|
Gold Member Username: InsearchofbassPost Number: 6069 Registered: Jun-04 | cool ill work on gettin the port in there now |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 283 Registered: Mar-07 | Oh ok thanks man. I forgot to say this is going in an SUV. |
|
Gold Member Username: InsearchofbassPost Number: 6070 Registered: Jun-04 | 21 deep x 16.5 high 26.5 plus 2.5 width for port 29.00 wide these are the internal measurements port is 15 inches long including the front baffle (port to the front) 16.5 high x 2.5 wide 41.25 square inches 22.50 deep x 18.00 high x 30.5 external measurements this might end up being a 31 hz port tune but it still looks good on the box program let me know how it sounds should be sweet |
|
Gold Member Username: InsearchofbassPost Number: 6071 Registered: Jun-04 | 22.50 deep x 18.00 high x 30.5 wide external measurements |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 284 Registered: Mar-07 | Oh ok thanks alot man. |
|
Gold Member Username: InsearchofbassPost Number: 6072 Registered: Jun-04 | your welcome |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 286 Registered: Mar-07 | Hey sean will this box end up being subs up port back? |
|
Silver Member Username: BigharvPost Number: 241 Registered: Jun-07 |  |
|
Gold Member Username: Tremor1127Fi Post Number: 2117 Registered: Aug-06 | whoah, sawzall circles... but hey, wolfman said something about not getting home depot to do your cuts. ok, let me say this. they would have to try VERY hard, much harder than they normally do to make some nice precision cuts but check this out. no bs. a friend of mine went to have his single 12" box cut up at home depot and oh my god. some of the cuts were inches off. we never really figured out what some of the cuts were supposed to be and i ended up fixing alot of his cuts and had to make some whole new pieces from scratch. it was wild, the dude seriously cut some of them several inches off. some too much and some not enough. it was crazy. not saying your dude at home depot is gonna cut 6 inches off but man, its happened...  circular saw, angle iron and c-clamps FTW! |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 287 Registered: Mar-07 | Yeah depending on what happens i might not need home depot to cut my wood. and yeah home depot and them dont really care as long as they get paid. Home Depot FTL! |
|

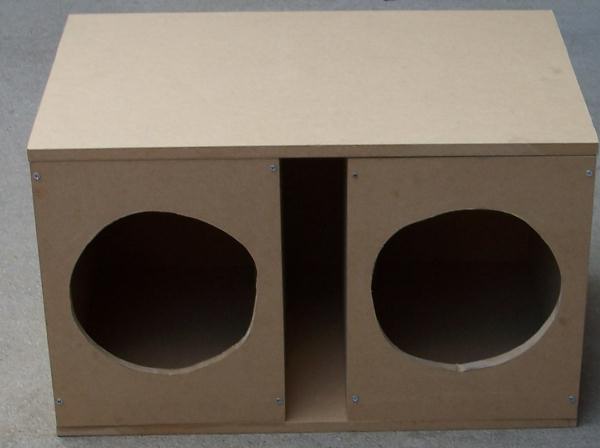

Silver Member Username: BigharvPost Number: 243 Registered: Jun-07 | i have the cut sheet for that box i posted above, it played my 2 EHQS subs loud. |
|
Gold Member Username: InsearchofbassPost Number: 6090 Registered: Jun-04 | if your suv is like ours subs back port back |
|
Gold Member Username: InsearchofbassPost Number: 6091 Registered: Jun-04 | we loose like 1.5 db firing subs up port up but the low end does go up like .5 db we tried the subs up port back and the results were even worse firing subs front port front (to the driver and passenger) we lost 3 db |
|
Silver Member Username: ExplictxGlen Burnie, Maryland USA Post Number: 293 Registered: Mar-07 | ohh ok |
