Drivingreckless



Joshua Moye
Silver Member
Username: Kaprese

Walstonburg, NC USA

Post Number: 304
Registered: Mar-07
Posted on
Can you design me a sub enclosure for 2 12's that are in a single chamber the box should be around 3.5 cuft and ported tuned to around 38hz

max: Height=18
Width=16
Length=38

also can you post the diagram up here


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3820
Registered: Apr-06
Posted on
no problem...


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3821
Registered: Apr-06
Posted on
what vehicle is it going in??


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3822
Registered: Apr-06
Posted on

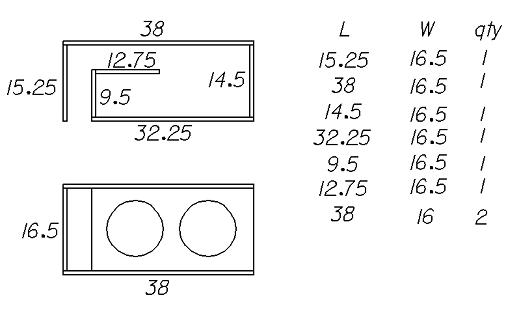

3.5 cubes 38hz 80 sqinches
Upload


sean
Gold Member
Username: Insearchofbass

Post Number: 5977
Registered: Jun-04
Posted on
did you account for subwoofer displacement? if not the port tune will change some (higher tune) as well as the airspace (lowering)


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3824
Registered: Apr-06
Posted on
lol this guy....
sean this isnt the first box plans i have designed....
its 3.5 net
3.75 gross

my way of accounting for it

1 10 = .125
1 12 = .175
1 15 = .250

please do not insult me again sean


sean
Gold Member
Username: Insearchofbass

Post Number: 5978
Registered: Jun-04
Posted on
LOL how was I insulting you I was just checkin I couldnt follow the plans or I missed something you wrote


sean
Gold Member
Username: Insearchofbass

Post Number: 5979
Registered: Jun-04
Posted on
its all good


JK
Gold Member
Username: Jkidder

Spring hill, Florida Usa

Post Number: 1345
Registered: Nov-05
Posted on
tru tru. looks like every other box u design dave


Steinke
Gold Member
Username: Adam_s

Post Number: 1786
Registered: Aug-04
Posted on
LMAO


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3826
Registered: Apr-06
Posted on
"tru tru. looks like every other box u design dave"

a ported box is so easy that thiers nothing to it


and sean you insulted me by questioning me :P


sean
Gold Member
Username: Insearchofbass

Post Number: 5980
Registered: Jun-04
Posted on
too bad LOL


Pit Bull
Gold Member
Username: Pitbullguy

Ascendant Audio Arsenals, Chicago Ima graffiti...

Post Number: 1593
Registered: Oct-06
Posted on
reckless if your head gets any bigger it's gonna explode.


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3827
Registered: Apr-06
Posted on
indeed


HNIC
Bronze Member
Username: Noob101

Taylorsville, Utah USA

Post Number: 55
Registered: Jul-07
Posted on
will you design me one one? (sorry to jack the thread) I need a single 12 in a ported enclosure tuned to around 32hz with 2.0-2.5 Cubic ft. and with the Face or the side the sub is on to be at a 65 degree angle so it's wedged when i fold down my seats.

Max:
Height:13.5 in.
Width: 34 in.
Depth: 19 in.


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3831
Registered: Apr-06
Posted on
what kinda car do you have???have sub do you have?


HNIC
Bronze Member
Username: Noob101

Taylorsville, Utah USA

Post Number: 56
Registered: Jul-07
Posted on
2003 Ford Mustang coupe and 1 Fi Q12


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3832
Registered: Apr-06
Posted on
okay heres a problem if i slant it 65 degrees...
the back of the magnet might hit the bottom of the box b/c of the mounting depth.....


HNIC
Bronze Member
Username: Noob101

Taylorsville, Utah USA

Post Number: 57
Registered: Jul-07
Posted on
Would it work if it was 14 in. height?


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3834
Registered: Apr-06
Posted on
its to steep of an angle if it was a 10" no doubt...
does the enclosure have to be slanted??


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3835
Registered: Apr-06
Posted on
didnt bump?!


HNIC
Bronze Member
Username: Noob101

Taylorsville, Utah USA

Post Number: 58
Registered: Jul-07
Posted on
No it would just look best that way...but if it's impossible to do then just do it without.


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3836
Registered: Apr-06
Posted on
are the max dimensions still the same??


HNIC
Bronze Member
Username: Noob101

Taylorsville, Utah USA

Post Number: 59
Registered: Jul-07
Posted on
ya otherwise i can't get it in my trunk


I- Malik
Silver Member
Username: Imalik

SD2.5......ED9.1=Boom, New Jersey Lord Protect...

Post Number: 501
Registered: May-06
Posted on
Sent you a PM Dave


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3838
Registered: Apr-06
Posted on
2.25 net 32 hz 48 sqinches
Upload


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3839
Registered: Apr-06
Posted on
I- Malik
catch me on aim im on right now

drivingreckless


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3840
Registered: Apr-06
Posted on
for you Malik
4 cubes 40hz 75 sqinches

Upload


Joshua Moye
Silver Member
Username: Kaprese

Walstonburg, NC USA

Post Number: 305
Registered: Mar-07
Posted on
oh yea my fault guys it's going into a 1995 Saturn SL2 I am trying to try something custom


I- Malik
Silver Member
Username: Imalik

SD2.5......ED9.1=Boom, New Jersey Lord Protect...

Post Number: 502
Registered: May-06
Posted on
Thx D


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 3842
Registered: Apr-06
Posted on
no problem


Andrew Capps
Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 1462
Registered: Mar-06
Posted on
BTW, I built the box you designed for me but right now I have so much sh!t going, I haven't got it installed. I'll let you know how it sounds though


Joshua Moye
Silver Member
Username: Kaprese

Walstonburg, NC USA

Post Number: 311
Registered: Mar-07
Posted on
me to also I will be finishing your box you design tomm. I know it's gonna slam
