Installing & Configuring a 4-Channel Amp



Bronze Member
Username: Kosovari

Post Number: 60
Registered: Jan-06
Im not good with this stuff so im here for your suggestions.... I recently got a pioneer prs-x340 4channel amp and 2-12inch pheonix gold tantrum subs in a box.

My question is.. what is the best way to connect these 2 subs?... i know its not a mono amp. but wuts the best i can do with this?


Platinum Member
Username: Rovin

4 10 Pioneer...

Post Number: 11827
Registered: Jul-05
whats the voice coil configuration off ur subs or sub's model number ???......


Bronze Member
Username: Kosovari

Post Number: 62
Registered: Jan-06
4ohm DVC 300rms watts 600 max.. im not sure of the model number...


Gold Member
Username: N2audio

Lawrence, Ks USA

Post Number: 1362
Registered: Mar-04
I'd run one pair of rca's to the amp - and use y-cables so you can plug into all 4 channels.

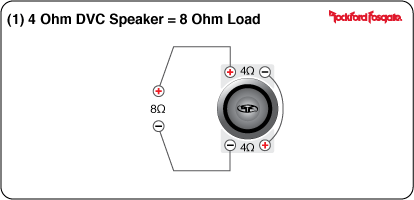

Bridge each pair of channels and wire the subs like this (one per bridged channel)
+++ gif +++ 373383 +++ Upload +++
Those premier amps were ridiculously under-rated, you should have enough power for those subs to sound pretty good.


Gold Member
Username: N2audio

Lawrence, Ks USA

Post Number: 1363
Registered: Mar-04
pic problem -- repost

Upload
