Rd alpha help please....somethings wrong here...?



Silver Member
Username: Killer44

Ontario Canada

Post Number: 908
Registered: Dec-04
so i go to hook em up today and its not loud at all, and i got them hooked up which i think is to one ohm, they are dvc 4ohm subs(atleast thats what i ordered) so i had them hooked up like this
http://s206.photobucket.com/albums/bb16/44killer44/?action=view&current=subwirin g.jpg and they were not too loud, and they only were somewhat loud when i turned the gain and the bass knob all the way up, plus i tried to set my gain like in the jl tutorial and nothing happend, like the voltmeter was not goign up as i was turning the gain, so anyways i jsut put it at half, so then i hooked the one sub up like this
http://s206.photobucket.com/albums/bb16/44killer44/?action=view&current=subwirin g2.jpg
and the thing was mad loud, but when i hooked em both up like that it went back to barely mooving...whats giong on here did i get sent the dvc 2ohm subs? is there something wrong with my amp?....any help would be greatly appreciated...


Silver Member
Username: Skibum12189

Cleveland

Post Number: 786
Registered: Mar-06
how many wire terminals does each sub have?


Silver Member
Username: Killer44

Ontario Canada

Post Number: 909
Registered: Dec-04
two....theres one positive and one negative per voice coil...


Gold Member
Username: Freezeman_7

C.FREE

Post Number: 1443
Registered: May-06
if its dvc , it will have 4 total, 2 on each side. 1 pos and 1 neg on each side


Gold Member
Username: Trey4sports

Post Number: 1343
Registered: Sep-06
do you have a DMM? if not get one, 20 bucks. take the probes and and put + to + and - to - on each voice coil and set your DMM to ohms and it will tell you the resistance


Gold Member
Username: Adam_s

Post Number: 1441
Registered: Aug-04
What amp do you have?


Silver Member
Username: Killer44

Ontario Canada

Post Number: 910
Registered: Dec-04
yeah i got one...thanks ill try that out...ok so they say about 3.4-3.6ohms each vc for both subs, that mean the are dvc 4ohm right?


Silver Member
Username: Killer44

Ontario Canada

Post Number: 911
Registered: Dec-04
rd 1750.1


Silver Member
Username: Showrides

Hartford, CT USA

Post Number: 824
Registered: Feb-06
Yes, between 3.4 and 3.6 is good. After impedence rise it will be right around 4 ohms.

And that amp should be pushing them very well.

Got pictures of the wiring?


Gold Member
Username: Adam_s

Post Number: 1444
Registered: Aug-04
Yes it does mean they are dual 4 then. Try hooking both wires into the one amp terminal that you had the one sub hooked into and see if that helps anything.


Silver Member
Username: Showrides

Hartford, CT USA

Post Number: 825
Registered: Feb-06
I looked at your diagram and you wired them wrong.


Silver Member
Username: Showrides

Hartford, CT USA

Post Number: 826
Registered: Feb-06
And hit me up on AIM at showridesnet.

I can help you. I will make them plenty loud for you.


Silver Member
Username: Killer44

Ontario Canada

Post Number: 912
Registered: Dec-04
dont got aim sorry man....i use msn meseenger..u talking about the first diagram...and thanks alot for the help u and kevin are great so i was very doubtful it was something to do with the equipment...


Silver Member
Username: Killer44

Ontario Canada

Post Number: 913
Registered: Dec-04
and could someone please show me were i am supposed to but my voltmeter in my amp to set the gain...and do i jsut set the meter on the same setting to test ur batteries voltage?...and would it matter that my door speakers are hooked up while im doing this?...


Silver Member
Username: Showrides

Hartford, CT USA

Post Number: 828
Registered: Feb-06
Yeah, the first diagram I looked at was wrong. Let me see if I can get on msn messenger for you.


Silver Member
Username: Showrides

Hartford, CT USA

Post Number: 829
Registered: Feb-06
You don't need to worry about gains yet. You need to wire the subs correctly first. Hold up one second.


Silver Member
Username: Killer44

Ontario Canada

Post Number: 915
Registered: Dec-04
thanks alot man....quick_silver_430@hotmail.com


Gold Member
Username: The_image_dynamic

San Diego

Post Number: 2017
Registered: Dec-06


Silver Member
Username: Showrides

Hartford, CT USA

Post Number: 832
Registered: Feb-06
said that isnt a valid email address?

I am Showcarsite@gmail.com try me.


Silver Member
Username: Killer44

Ontario Canada

Post Number: 916
Registered: Dec-04
ok sounds good showrides...and brad the pic u put up isnt showing up for me....?


Gold Member
Username: The_image_dynamic

San Diego

Post Number: 2018
Registered: Dec-06
Upload


Silver Member
Username: Killer44

Ontario Canada

Post Number: 919
Registered: Dec-04
showrides helped me out, and thanks brad im gunna wire em up like that tmrw and hopefully it goes good...thanks alot guys..


Gold Member
Username: Trey4sports

Post Number: 1349
Registered: Sep-06
Killer. u are one lucky azz man. those alphas are gonna tear ur car up, and still sound good doing it. good luck and have fun


Silver Member
Username: Showrides

Hartford, CT USA

Post Number: 833
Registered: Feb-06

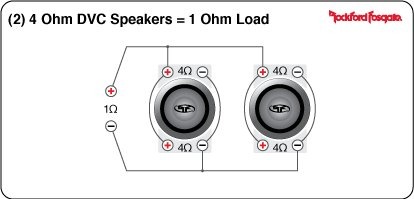

Yeah, with the amp running at a final load of 1 ohm now instead of 4 ohms, things should get a little louder in there.
