Is This OK!?
|

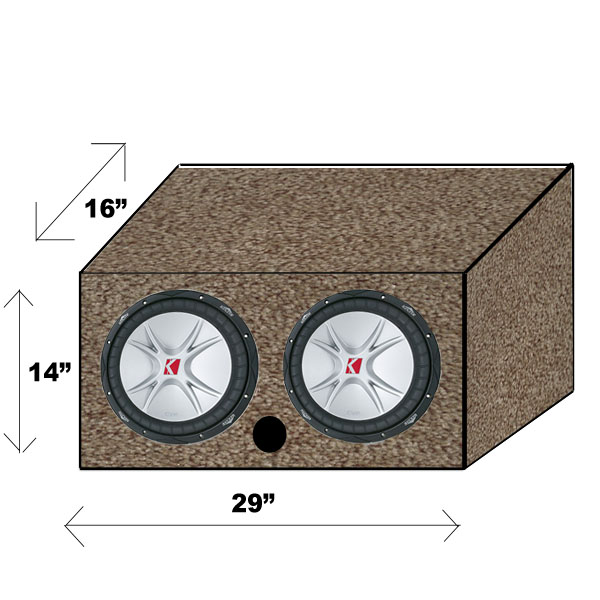

Bronze Member Username: Jasonsue22WA Post Number: 19 Registered: Jun-07 | K so my problem is i have this box design and i need to know 1) if it works ok, and 2) if the port is alright, and i need the size and demensions of the port, and if i should have two and anything else you can tell me. The subs are 2 12" Kicker CompVR's (this is a rough sketch from Photoshop.)  Anything that i might have forgotten (courtesy of Crutchfield) Size - 12 -inch Impedance - 2 ohms Cone Material - Injection molded poly Surround Material - Santoprene rubber Sealed Box Volume (cubic feet)- 1 - 4.6 Ported Box Volume (cubic feet) - 1.75 - 2.25 Port diameter (inches) - N/A Port length (inches) - N/A Free-Air - No Dual Voice Coil - Yes Sensitivity - 86.7dB Frequency Response - 25 - 0.5k Hz RMS Power Range (Watts) - 50-400 Peak Power Handling (Watts) - 800 Top Mount Depth (inches) - 6 1/4 Bottom Mount Depth (inches)- N/A Cutout Diameter or Length (inches) - 11 1/16 Vas (liters) - 95.37 Fs (Hz) - 26.1 Qts - 0.527 Xmax (millimeters) - 12.64 |
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 11707 Registered: Jul-05 | http://www.the12volt.com/caraudio/boxcalcs.asp http://www.carstereo.com/help/Articles.cfm?id=31 dont forget to consider sub\port\s displacement i would do 2 4" aeroports ........ |
|
Gold Member Username: Logan__tilleTeam RevolutionImortal Box ... Post Number: 8156 Registered: Feb-06 | ^^^At least. |
|
Bronze Member Username: Jasonsue22WA Post Number: 20 Registered: Jun-07 | k and does placement matter? |
|
Gold Member Username: Logan__tilleI make it rain. Post Number: 8166 Registered: Feb-06 | Yes. |
|
Bronze Member Username: Jasonsue22WA Post Number: 21 Registered: Jun-07 | where should i put the ports then? |
