My new enclosure



Gold Member
Username: Trey4sports

Post Number: 1307
Registered: Sep-06

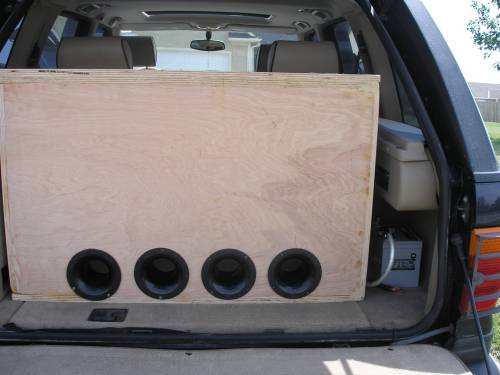

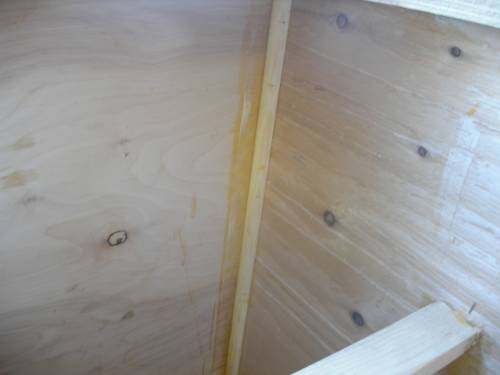

12.1 cubes at 34 hz. alphas should be here in a good 2 weeks. whole box was constructed of 3/4" 7 layer birch. double baffle on top. i also used quarter round on all the seems inside of the box so i have no 90 degree angles. Upload
Upload
Upload
Upload


Gold Member
Username: Th3pwn3r

Post Number:...

Post Number: 3175
Registered: Jul-06
Wow,lol.


Platinum Member
Username: Bestmankind

SQ IS THE ONLY WAY

Post Number: 13674
Registered: Oct-05
everything looks good. but i think the port area is too little for that box. you might want to add another 2-4 aero ports.

those are 4 inch aeros right?


Gold Member
Username: Extrmndor3

IF U HEAR ME... crazydbs.com

Post Number: 5598
Registered: Feb-06
wowx2

thats some tall @ss box just look at the lil ports :-)


Gold Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 7484
Registered: Jun-06
Miniature golf anyone? J/K



How much was the birch?


Gold Member
Username: Trey4sports

Post Number: 1308
Registered: Sep-06
birch=free had two sheets lying around at my dads, a couple edges had been rounded already but since i completely sealed off the enclosure from the inside and wood filler + glue on the outside it shouldnt be a problem. just a cosmetic hinderance.
the ports are 3 x 5 and i used the PSP port calulator, after displacements, it came out to 34 hz so hopefully thats right


Silver Member
Username: Kicker101

Alberta

Post Number: 107
Registered: Nov-05
how did u make the double baffle(i know its just two sheets) but did u glue them together real good or just screw it or what?


Gold Member
Username: Jblanford

Post Number: 1473
Registered: Oct-06
bro...i would add about 4 more ports lol


New member
Username: Csuho

Nashville, Tn

Post Number: 1
Registered: Jun-07
i 2nd the add more ports.

if i read his last post they are only 3" aero's.

for that much space i would do min 2-6" aero's or 4 - 4" you can tune a lil higher with the aero's than you would with a slot port since they are more effiecent.

but other than the lacking port area it looks good.


Silver Member
Username: Kicker101

Alberta

Post Number: 111
Registered: Nov-05
how did u make the double baffle(i know its just two sheets) but did u glue them together real good or just screw it or what?


Silver Member
Username: Skibum12189

Cleveland

Post Number: 743
Registered: Mar-06
hey trey, first of all, that box is huge haha damn, that birch must way a ton

also, i forget, what kinda subs are you gettin now

last thing, ill take it you're keepin the rover, right?

i love it more everytime i see it, the dark tubing land rover puts all over the leather on the interior looks nasty


Gold Member
Username: Trey4sports

Post Number: 1312
Registered: Sep-06
thanks cal. but no the land rover does have to go. i am seriously having a hard time feeding my terrible car audio addiction while paying 70 bucks to fill up on a 6 75 an hr wage, its tuff. but yeah after working wtih this birch MDF seems like fisherprice toys. i will look into adding more ports. what i did with the double baffle was use tightbond on the top layer mount the baffles flush, clamp the baffles really tight for about a half hr and also shot about 8 very tiny nails with a brad nailor.


Gold Member
Username: Oglejust

Post Number: 2032
Registered: Aug-06
"that birch must way a ton"

birch is lighter than mdf FYI


Gold Member
Username: Trey4sports

Post Number: 1313
Registered: Sep-06
maybe its just me but when i was working wtih this sheet of birch it felt heavier to me than the MDF sheets i had worked with before


Gold Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 7521
Registered: Jun-06
Hauling MDF around all day is fucked up.


Platinum Member
Username: Rovin

4 10 Pioneer...

Post Number: 11677
Registered: Jul-05
well the guys above aid it right - needs more port area , @ least 10sq"\cuft is a good rule

but looks nice

liked how u braced it - reminds me of a recnt box i did which was about 2cuft under volumed & i used 2 pieces of 2x4 to brace it = solid like a rock & vibration free too .....


Gold Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 7555
Registered: Jun-06
Hey are you covering that box? Since it's Birch maybe think about sanding, staining and poly?

Just a thought. Carry on.
