New CAD Modeling for Boxes



Silver Member
Username: Cried

Erie, PA US

Post Number: 233
Registered: Jun-07
FINALLY! After 2 days of downloading and 4 hours of installation, I got a CAD software on my CPU, so I can put my drafting skills to the test when it comes to designing boxes. Let me know what you guys think and if anyone needs one done, I'd be happy to ;).

Upload

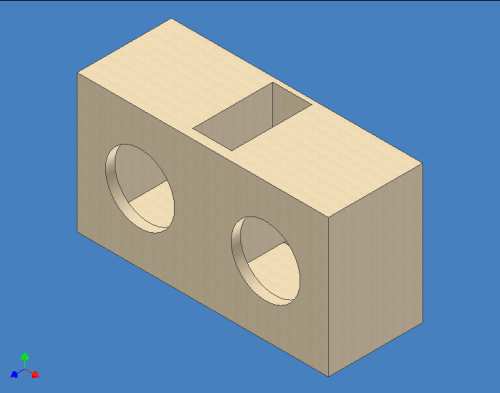

This box is:
Dimensions: 40" x 22" x 14.25" [Double Baffle]
Volume: 5 Cubic Feet
Tuning Frequency: 40 Hz
Port Width: 6.2"
Port Length: 13"


Silver Member
Username: Cried

Erie, PA US

Post Number: 234
Registered: Jun-07
Upload
Upload


Silver Member
Username: Cried

Erie, PA US

Post Number: 235
Registered: Jun-07
Here is a drawing with orthographis projections of the part in: TOP, FRONT, ISO, SECTION VIEW
[Im just having fun, let me know what you guys think]
Upload


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2534
Registered: Mar-06
Ok, What can you do for,
A: 2 12" JL W6v2 Tuned to 35. Would like to keep it under 6-7 cube

B: A ported box for a L7 15, AND a sealed box for a single W6. About 3.5 cubes Kicker Box tuned to 30, W6 box, Well its sealed, so say 1.5 cubes
Now this B box Should be one unit. Kicker on the bottom, JL on the top.

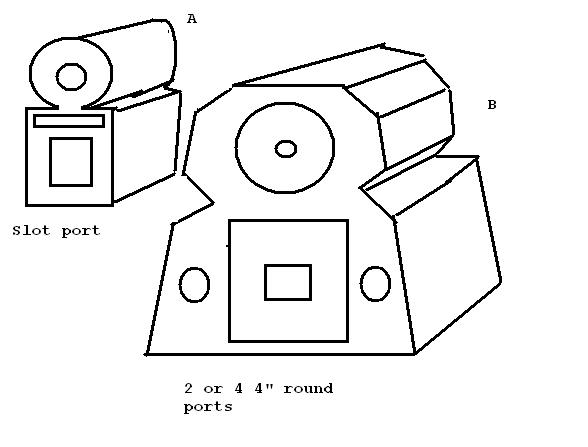

Heres a couple of sketches of the combo box. Box A is a slot port, Box B is 2-4 round ports.

Upload

So, What can you do?
Also, The top JL box needs to be kerfed fot the round effects.

BTW, Nice program. Kinda like Cannons.

What?


Silver Member
Username: Cried

Erie, PA US

Post Number: 236
Registered: Jun-07
sh!t man, nothing simple? Lol j/k. I dont get those sketches at all, I've never seen a box that looks anything close to that, so idk how I would go about calculating anything for it. If you can give me some dimensions and maybe find me a pic we can go from there.


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2535
Registered: Mar-06
Well, Demensions are variable. I am not constriced by size. Treat the combo box as 2 seprerate boxes. So lets say the L7 box is 24 -30 wide X 24 -30 High X 24-30 deep. I would like to keep it square with a even space around the sub. Like 4"-8" on the side ,top. Port(s) and sub facing front. As far as the JL box, Whatever the kicker box dictates as far as depth, but again a uniform size around the sub that compliments the size around the L7.

There is no link to anything that resembles that due to it being a VM original drawing.


Silver Member
Username: Cried

Erie, PA US

Post Number: 237
Registered: Jun-07
Calculating everything to a T would take me quite a bit of a time, and I probably would charge a small fee $5-$10, but I can do something rough so you get an idea, and if you're truly interested, I can do complete calculations, tune it, and get into much more detail as well as a parts list. I can do a complete U-Hal on both boxes for $15.53

I'll sketch you up something for free now and you tell me if im on the right track.


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2537
Registered: Mar-06
Dude, Im just busting your balls. I got it sused already. But thanksfor the offer. Looks like a cool program though. Good luck.

BTW, I call that box design, "The Quoddyssey"
You should see "The Spider Box"


Silver Member
Username: Cried

Erie, PA US

Post Number: 238
Registered: Jun-07

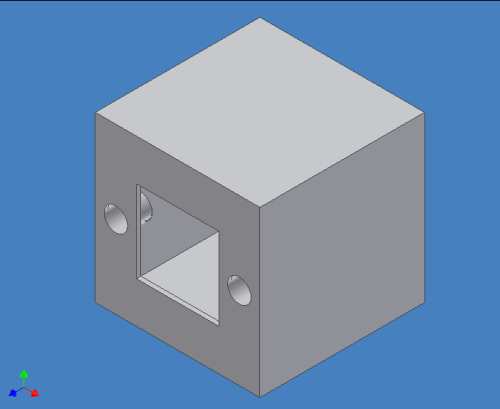

L7 Box
28" x 28" x 28"
Tuned to 30Hz
(2) 4" Diameter Ports 4.06" long
Upload


Silver Member
Username: Cried

Erie, PA US

Post Number: 239
Registered: Jun-07


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2538
Registered: Mar-06
nice box.


Silver Member
Username: Cried

Erie, PA US

Post Number: 243
Registered: Jun-07
lol thanks, but its over 10 cubes ^^


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2539
Registered: Mar-06
Yea, I know, I ran the numbers, Lol, I just didnt think it was important to share. Thanks for the efforts. At least it bumps for ya. Whats that BBP6 you got?


Silver Member
Username: Cried

Erie, PA US

Post Number: 249
Registered: Jun-07
BBp6?


Silver Member
Username: •cam•

Post Number: 537
Registered: Nov-06
Bass Box Pro 6. That's what I use. Get with it man...



lol I'm just playin' with ya.


Silver Member
Username: Tatonka

Post Number: 420
Registered: Mar-07
Charlie waht program is that?


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2540
Registered: Mar-06
btw, that box you made is actually 12.34 cubes.

lol


Silver Member
Username: Cried

Erie, PA US

Post Number: 252
Registered: Jun-07
Autodesk Inventor 10, its like AutoCAD what drafters in the industry use, I use this in my engineering classes at school, and will use it more for my drafting class next year. It's fun and I have 3 years experience with it.


Gold Member
Username: Van_man

Boston South, MA

Post Number: 2541
Registered: Mar-06
TI-83+ FTMFW....

What?


Silver Member
Username: Cried

Erie, PA US

Post Number: 253
Registered: Jun-07
lol marc 83's are for noobs i got the 84, plus did you take into account 3/4" MDF, I used the12volt volume calculator, I think its pretty accurate. That was 10.3823482758347 cubes without taking into account the port/sub displacment.


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 1369
Registered: Mar-06
I worked in an engineering department and used AutoCAD, rasterCAD and Inventor. Inventor was by far my favorite but I had to quit that job. I can't sit behind a desk all day. It kills me.

Looks like you're pretty good with it. Boxes look good man


Silver Member
Username: Cried

Erie, PA US

Post Number: 256
Registered: Jun-07
Thanks man, what did you used to design at your old job?


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 1375
Registered: Mar-06
it was a medical lab. I would design anything from conveyor systems, sprockets, arms for our robots, drew out the electrical systems, HVAC or anything like that. It was cool but being behind a desk isn't for me..... at all


Gold Member
Username: Oglejust

Post Number: 1890
Registered: Aug-06
google sketchup ftw


Gold Member
Username: Southernrebel

Monroe, Louisiana DD 9515d~~]...

Post Number: 4992
Registered: Mar-04
Um....question:

Why ~2.4sq inches of port per cu ft?


Bronze Member
Username: Thumpinwith8s

Formerly known as Wolf...

Post Number: 46
Registered: Jun-07
Canaan! U still got those subsonic filters? it was $10 for them right, I want to hook them up so I can hear the difference before I buy them. I'll be by the shop Monday. Is that OK?


Gold Member
Username: Southernrebel

Monroe, Louisiana DD 9515d~~]...

Post Number: 4993
Registered: Mar-04
Hey man,

Sorry but i had to use them in an install a few weeks ago.

I totally forgot you wanted them.


Silver Member
Username: Cried

Erie, PA US

Post Number: 257
Registered: Jun-07
"Um....question:

Why ~2.4sq inches of port per cu ft?"

It was just a quick sketchup for Marc. Took me like 3 minutes and I just decided to make 2 ports with a diameter of 4.

Here is a CAD file of my Flared ported box I did a few weeks ago.

Upload
