Need help designing box



Kyle
Bronze Member
Username: Schinner

Post Number: 48
Registered: May-07
Posted on
hey guys i need help designing a sub enclosure for 1 10" cvr. im not sure what would be good freq to tune to im thinking 34 hz?

anyways here are the specs
english (metric)

fs 33.2
Sd 58.7 (.0379)
EXmax .501 (12.73)
Rd 6.71
d 2 (50.8)
Qms 8.93
Qes .640
Qts .597
Vas 1.42 (40.24)

manual says vol should be 1.75 cu ft + port displacement

let me know if there are any other specs you need....

lastly if its not too much trouble it would be great if you could design a box for 2 of the same subs

THANKS


Where Are you Muddy?
Gold Member
Username: Stnorris

RE SX 15, IA US

Post Number: 2166
Registered: Apr-06
Posted on
do 1.25 cuft tuned to 37 - 40hz and get around 40 sq. in. That should be loud and ya it will stil get the lows


[...Rovin...]
Platinum Member
Username: Rovin

4 10 Pioneer...

Post Number: 11667
Registered: Jul-05
Posted on
^^^40sq' on 1.25cuft !??? - what da heck .....


Nick V
Silver Member
Username: Tatonka

Post Number: 416
Registered: Mar-07
Posted on
Small box + big port area = loud :D


Kyle
Bronze Member
Username: Schinner

Post Number: 49
Registered: May-07
Posted on
manual says 1.75 cu ft. + port displacement 2.5" x 10.5" port 20" long

i need help with the dimensions


Kyle
Bronze Member
Username: Schinner

Post Number: 52
Registered: May-07
Posted on
im still confused any help is appreciated....

do i do 1.25 cu ft without including the port area.... or 1.25 cu ft with port area included in that number??


sean
Gold Member
Username: Insearchofbass

Post Number: 5282
Registered: Jun-04
Posted on
1.25 after port space is accounted for


sean
Gold Member
Username: Insearchofbass

Post Number: 5283
Registered: Jun-04
Posted on
so to get 39 square inches of port area you would need 13 high x 3 inch wide port opening


sean
Gold Member
Username: Insearchofbass

Post Number: 5284
Registered: Jun-04
Posted on
that would be plenty actually WAY plenty


sean
Gold Member
Username: Insearchofbass

Post Number: 5285
Registered: Jun-04
Posted on
40 hz tune will work but I hate tuning that high with music do 37 hz


sean
Gold Member
Username: Insearchofbass

Post Number: 5287
Registered: Jun-04
Posted on
ill run it in a program for you brb


sean
Gold Member
Username: Insearchofbass

Post Number: 5288
Registered: Jun-04
Posted on
yup do 1.25 cubic feet after ports and sub are accounted for tuned to 37 hz


sean
Gold Member
Username: Insearchofbass

Post Number: 5289
Registered: Jun-04
Posted on
1.75 cubic feet would be even better ported to 37 hz if you have the room


Kyle
Bronze Member
Username: Schinner

Post Number: 53
Registered: May-07
Posted on
how do i figure out how much room the sub takes up??


sean
Gold Member
Username: Insearchofbass

Post Number: 5291
Registered: Jun-04
Posted on
figure .05 cubic feet lost per sub


Kyle
Bronze Member
Username: Schinner

Post Number: 54
Registered: May-07
Posted on
okay you said make the port 13 x 3....how long though??


sean
Gold Member
Username: Insearchofbass

Post Number: 5294
Registered: Jun-04
Posted on
one sec


Drivingreckless
Gold Member
Username: Drivingreckless

DD 9515f, 147.8 db Mov...

Post Number: 3560
Registered: Apr-06
Posted on
7 post in a row sean???
LOL way to kill it


sean
Gold Member
Username: Insearchofbass

Post Number: 5295
Registered: Jun-04
Posted on
ok heres a simple design 2.70 total for both subs and run two 4 inch inner diameter pvc ports 16.75 long each for a 37 hz port tune or 3.20 cubic feet for both subs wih two 4 inch inner diameter pvc ports 13.5 inches long for a 37hz port tune


sean
Gold Member
Username: Insearchofbass

Post Number: 5296
Registered: Jun-04
Posted on
the space for the subs and ports are accouted for in those box sizes


sean
Gold Member
Username: Insearchofbass

Post Number: 5297
Registered: Jun-04
Posted on
LOL driving


Kyle
Bronze Member
Username: Schinner

Post Number: 56
Registered: May-07
Posted on
alright well thats a good box for my two subs....

but my friend has just one of them....wants to build the box we were talking about earlier but needs the slot length


sean
Gold Member
Username: Insearchofbass

Post Number: 5298
Registered: Jun-04
Posted on
just do the pvc ports it takes more work to adjust for airspace with slot ports


sean
Gold Member
Username: Insearchofbass

Post Number: 5299
Registered: Jun-04
Posted on
3.70 cubic feet for two 10's two 4 inch ports 11 inches long

for one 10 do three 2 inch inner diameter pvc ports 9 inches long 1.85 cubic feet....sub and ports accounted for


sean
Gold Member
Username: Insearchofbass

Post Number: 5300
Registered: Jun-04
Posted on
gave you three boxes to choose from plus a single 10 box the 3.70 cubic foot box for two looks to be the best possible outcome


Kyle
Bronze Member
Username: Schinner

Post Number: 57
Registered: May-07
Posted on
thanks sean i really appreciate it


sean
Gold Member
Username: Insearchofbass

Post Number: 5304
Registered: Jun-04
Posted on
your welcome all those port tunes are for 37hz


Charlie Ried
Silver Member
Username: Cried

Erie, PA US

Post Number: 230
Registered: Jun-07
Posted on
1.25 Cubes @ 32 Hz = T3h $h!t
Upload
Upload
Upload

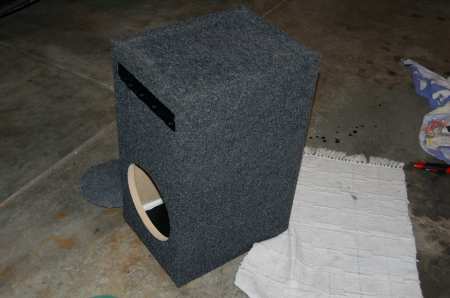

$80 shipped, I know you're all tired of seein this damn box.. SO SOMEONE BUY IT, SH!T!
