Jake Papas system
|

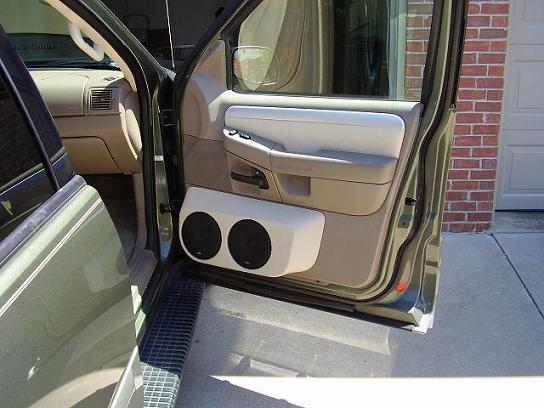

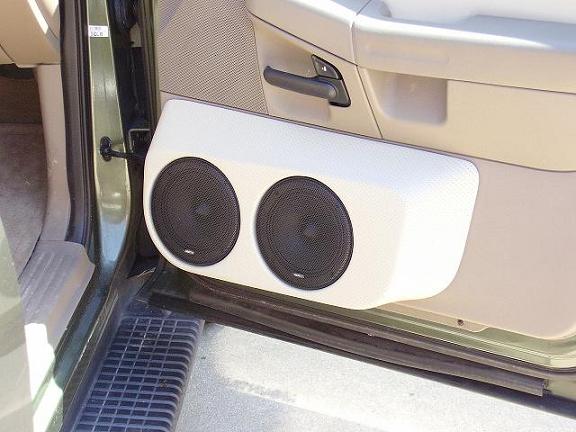

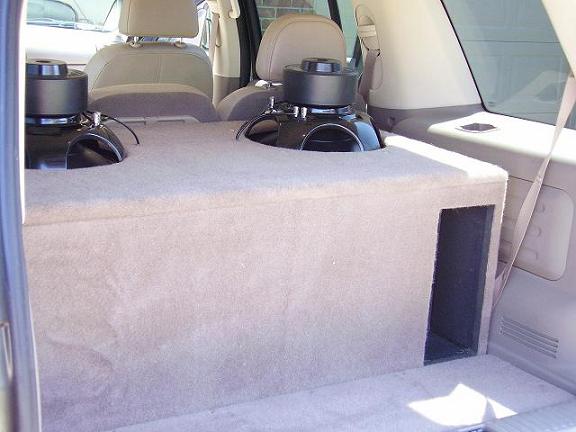

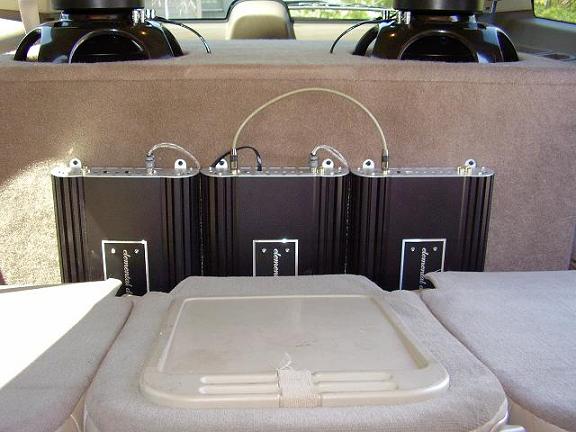

Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1685 Registered: Jul-05 | Hertz audio hi-energy dual 6.5s in the door pannels with a 3, tweet in the stock position. 4 Elemental Designs 16Ov.2s in an sobaric sub box firing up down front to front. 6.5cuft box with 80sq inches of port tuned to 32hz. 2 ED NINe.1s for everyday driving (4 for comps) 1 ED NINe.2Xs for the components not installed yet... Audiocontrol DQT Another ED NINe.2x for the components. I still need to wrap the sub box in vinyl. heres a few pics..       I'll take better pics after i get everything in and get the car detailed. |
|
Silver Member Username: Mike11202DE US Post Number: 264 Registered: Nov-06 | make some videos  |
|
Silver Member Username: Mike11202DE US Post Number: 265 Registered: Nov-06 | when your done of course... looks great nice and clean |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1686 Registered: Jul-05 | thanks mike. ill take some vids when i hook all the amps up...i still have alot of Edeading too do as well before then. |
|
Silver Member Username: Mike11202DE US Post Number: 267 Registered: Nov-06 | yeah i have a NINe.1 for my Fi Q and NINe.2x for my CDT HD62's.. great amps nice and solid jake did you see the new eD sub 13Av.2? they have a video of it on youtube http://www.edesignaudio.com/edv2/product_info.php?products_id=554 |
|
Platinum Member Username: RovinMy 1 12 Atom... Post Number: 11331 Registered: Jul-05 | looking really neat\good .... |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1687 Registered: Jul-05 | yes mike i saw that, it looks good. thanks rovin. |
|
Gold Member Username: MgbcsLincoln, Nebraska Post Number: 1023 Registered: Dec-06 | OK...now time for my stupis question...where are the other two subs? Very nice BTW. |
|

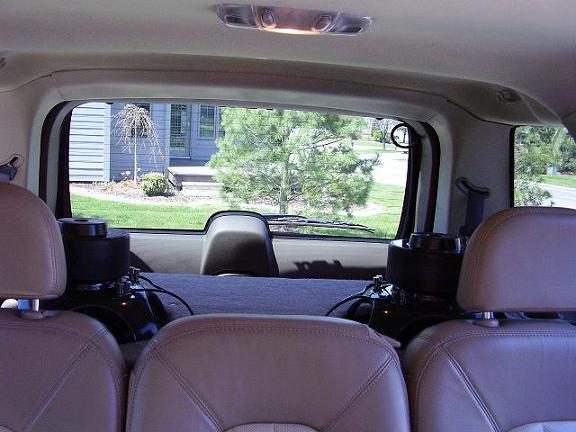

Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1688 Registered: Jul-05 | its an isobaric box... so they look like this...  You flip the top subs out of phase so they move with the bottom subs. I did this so i could cut my box size in half and so I would get a better line curve for low bass. You guys should hear from 30-35hz with this box, its unreal. |
|
Platinum Member Username: BestmankindLos Angeles, CA USA Post Number: 12294 Registered: Oct-05 | clean, clean, and clean. |
|
Gold Member Username: MgbcsLincoln, Nebraska Post Number: 1026 Registered: Dec-06 | I got it. That's awesome. Nice work man. |
|
Gold Member Username: WingmanaliveA pic is worth 1000 posts!! Post Number: 5817 Registered: Jun-06 | Very nice man! You say you're going to wrap the box in vinyl? It looks great the way it is. I second for the vids! |
|
Silver Member Username: Goodie_goopMidland, Texas U.S. Post Number: 533 Registered: Oct-06 | man your installs are always so clean...awsome job how complicated was it to make that box? do you like it better then the last one u had? |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1689 Registered: Jul-05 | Its much more complicated to make than just a normal box, but it wasnt too bad. the hardest part was making sure that the subs wouldnt touch eachother on full excursion...that would have been a bad thing. i havent really turned them up much yet because i dont have the EQ in, i have the gain on 3/8ths and the bass boost on 0 and its still very loud. so far i like it more than the last box because it kills on the low notes, and it saved alot of room. |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1690 Registered: Jul-05 | also vids really wouldnt be that impressive saying you cant really see the subs excursion...but if it makes you guys happy ill get some asap. |
|
Gold Member Username: MgbcsLincoln, Nebraska Post Number: 1028 Registered: Dec-06 | Yes videos would make us happy |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1691 Registered: Jul-05 | alright..will do then. |
|
Silver Member Username: ReppinqcCharlotte, NC USA Post Number: 167 Registered: Jan-07 | dude i love your setup...its so clean...thats what i dream of my system looking like...and i dont think the vinyl is needed, it looks hot like it is.and yea get us some vids. |
|
Silver Member Username: Waterboy2289Georgia, DiRtY SoUtH ... 2 18 SX w/ ... Post Number: 289 Registered: Jan-06 | Very clean! Good install! |
|
Silver Member Username: ReppinqcCharlotte, NC USA Post Number: 174 Registered: Jan-07 | how are these subs compared to DD3500's... |
|
Silver Member Username: ReppinqcCharlotte, NC USA Post Number: 175 Registered: Jan-07 | how are these subs compared to Fi Q's |
|
Bronze Member Username: M0nkeyman692Post Number: 59 Registered: Feb-07 | wait.. what? hahah does anyone wanna explain how that box works with one sub firing right at another....? |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1692 Registered: Jul-05 | jordan ive never heard a 3500 so i couldnt tell you. its not as nice as an Fi Q in my opinion, the subs are very sq oriented however which some people like. i cant say that ive heard 4 15inch Qs before but im sure you could get them as loud/louder than the EDs. monkeyman, hopefully this explains it a little better... http://www.caraudiohelp.com/custom_car_audio_boxes/custom_car_audio_boxes.htm http://www-personal.engin.umich.edu/~jglettle/section/pyramids/subs.html |
|
Silver Member Username: ShadeMoxee, Wa U.S. Post Number: 216 Registered: Nov-06 | well what happens is u put one outta phase, so when let's say sub 1 moves left, sub2 to moves left aswell, so they move in unison, so when one is pushing the other is pulling sorta deal, it's a very effective way to have multiple subs with limited space. |
|
Silver Member Username: ShadeMoxee, Wa U.S. Post Number: 217 Registered: Nov-06 | well what happens is u put one outta phase, so when let's say sub 1 moves left, sub2 to moves left aswell, so they move in unison, so when one is pushing the other is pulling sorta deal, it's a very effective way to have multiple subs with limited space. |
|
Gold Member Username: OglejustPost Number: 1458 Registered: Aug-06 | |
|
Silver Member Username: SkiesCourtenay, British Colu... Canada Post Number: 615 Registered: Aug-05 | With Isobarik setups, say your using 2 instead of 4 like Jake, would they both be powered or just 1? Jake, I absolutely love that setup. Get the EQ installed so you can start a brag session |
|
Gold Member Username: Denali_on_22sHit you in the chest m... Post Number: 2104 Registered: Feb-06 | Yeah, man your old setup looked sick and this is right there with it... great job on the box and the install in general |
|
Gold Member Username: JakeyplaysbassSt. Louis, MO Post Number: 1693 Registered: Jul-05 | i turned up the gains a little bit today and it was amazing...EQ should be in wed or thurs of this week and hopefully installed by this weekend. |
|
Gold Member Username: Denali_on_22sHit you in the chest m... Post Number: 2112 Registered: Feb-06 | VIDEOS! |
