My newest completed design...

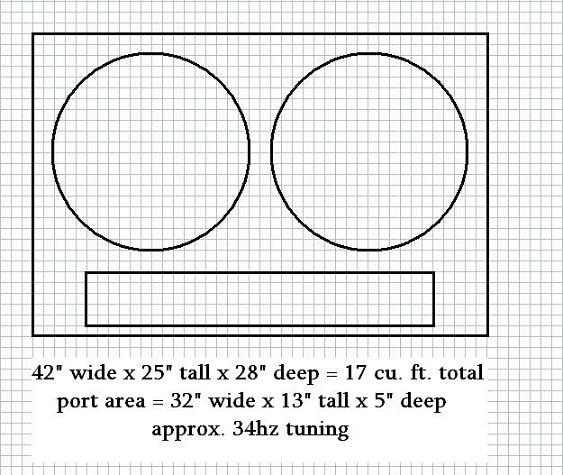

Tremor1127 Gold Member Username: Tremor1127 Fi Car Audio has got m... Post Number: 1341 Registered: Aug-06	Posted on Saturday, April 14, 2007 - 18:54 GMT so this is the one im using to replace the TTB t-line enclosure. same design i already had that chad lee helped me with but i decided since the port would be about 3 inches from the hatch panel i would move it to the top with the subs. the port will be on the back wall by the hatch panel. and a few recalculations later and this is what i got. both deminsions listed are with the box sitting on its actual bottom.
Chad Lee Platinum Member Username: Bestmankind Los Angeles, CA USA Post Number: 12070 Registered: Oct-05	Posted on Saturday, April 14, 2007 - 19:20 GMT thats cool. just make sure you use the wall of the box as one side of the port. meaning don't have that space between the port and the end of the box.
trey goettling Silver Member Username: Trey4sports Post Number: 979 Registered: Sep-06	Posted on Saturday, April 14, 2007 - 19:26 GMT not like your TTb box?

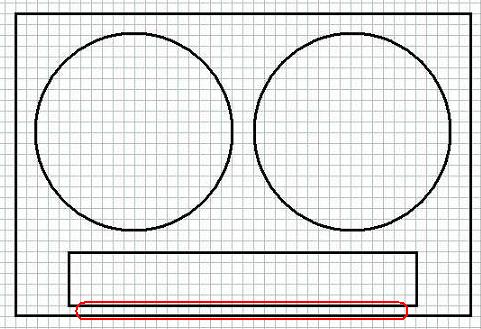

Tremor1127 Gold Member Username: Tremor1127 Fi Car Audio has got m... Post Number: 1342 Registered: Aug-06	Posted on Saturday, April 14, 2007 - 19:37 GMT are you talking about the part circled in red chad? if so, that is the back wall towards the hatch panel. 3 pieces of wood is all i will be using to make the port, the 4th piece is that back wall...

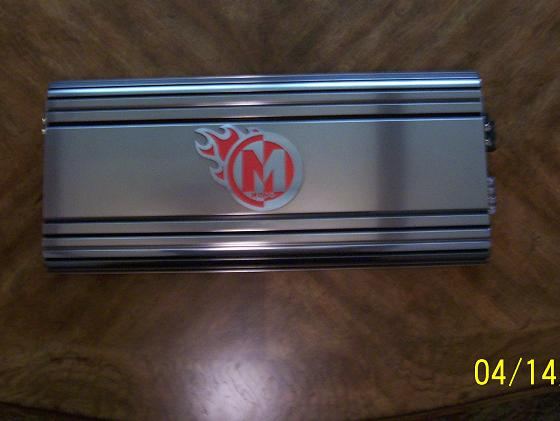

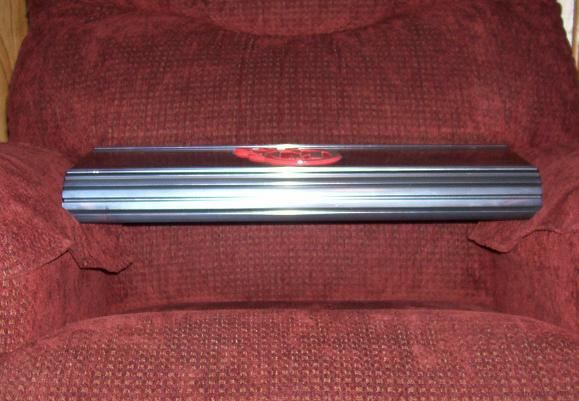

Tremor1127 Gold Member Username: Tremor1127 Fi Car Audio has got m... Post Number: 1343 Registered: Aug-06	Posted on Saturday, April 14, 2007 - 19:42 GMT and i like the TTB design, i will be keeping that box. it is an awesome sounding box and i like that it is below the window line. this is just something for me to try. im trying to have fun with the BLs... especially with this new beaut... modded to run at 1 ohm all day, everyday...
Chad Lee Platinum Member Username: Bestmankind Los Angeles, CA USA Post Number: 12078 Registered: Oct-05	Posted on Saturday, April 14, 2007 - 20:07 GMT yea tremor that is what i am talking about.
Tremor1127 Gold Member Username: Tremor1127 Fi Car Audio has got m... Post Number: 1346 Registered: Aug-06	Posted on Saturday, April 14, 2007 - 20:21 GMT cool, yeah, that is the back wall. it would be pointless to make the port like an inch from the wall, more work for nothing. haha...
