Box I built for a friend
|

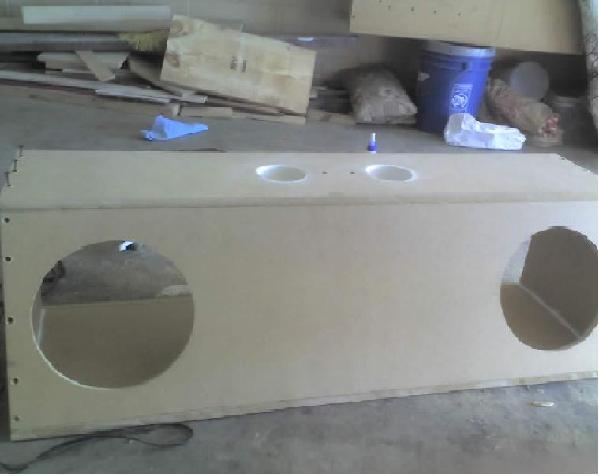

Bronze Member Username: Derick06Rio Grande City, Texas United States Post Number: 63 Registered: Nov-05 | Box was for a friend. It went into his single cab F-150. It's 2.3 Cubic Feet tuned to 35 Hz after displacement. Sorry I only got to take two shots of the thing while it was being built.   |
|
Gold Member Username: OglejustYou aint bangin unless..., Il Post Number: 1109 Registered: Aug-06 | nice... whats going in it? |
|
Bronze Member Username: Derick06Rio Grande City, Texas United States Post Number: 64 Registered: Nov-05 | he had some 10" db drive speed series subs. They sounded pretty good. But I think he told me he was switching to some other subs. |
|
Platinum Member Username: Rovin1 12 Atomic ... Post Number: 10794 Registered: Jul-05 | how far is the end of the port from the back wall of the box ? , if its more than the diameter of the port then its fine but im just wondering since u cant tell from the pix........ |
|
Gold Member Username: 54danny54KY More Wang Th... Post Number: 3556 Registered: Nov-04 | thats pretty nice dude |
|
Gold Member Username: WingmanaliveA pic is worth 1000 words Post Number: 3988 Registered: Jun-06 | Pretty clean. Carpet that bish and it'll look d@mn good. BTW how did you secure the ports to the box? I can't tell from the pics. |
|
Platinum Member Username: Rovin1 12 Atomic ... Post Number: 10796 Registered: Jul-05 | ^^^...i have also used liquid nails to secure pipe ports to the wood - u need 2 give it time to set up even though L\N is made 4 wood it works well for this purpose too .... |
|
Silver Member Username: OneracistguyTWO EGG, FL USA Post Number: 299 Registered: Sep-06 | how the hell did you fit that in a single cab the f150 i did needs a small box the one we got didnt fit and we had to put it on stilts to make it fit until we get a new box |
|
Bronze Member Username: Derick06Rio Grande City, Texas United States Post Number: 65 Registered: Nov-05 | The port is 2.5 inches away from the bottom of the box. I used liquid nails to support the ports to the box, and I added a piece of MDF between the two to support both of them and make it stronger. The box fit perfectly in the F-150. The outer dimensions are: 42" Length 13" height 13.5" on the bottom from back to front 8" on the top from back to front. |
|
Silver Member Username: BudlingCali USofA Post Number: 221 Registered: May-06 | Are those ports 4" pvc? Rovin is correct, I doubt those ports are 4" away from the bottom. Just make them stick out of the box until its 4"(or whatever dia. those ports happen to be) away from the bottom. |
