New Box Done... (Pics)



Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2799
Registered: Nov-05

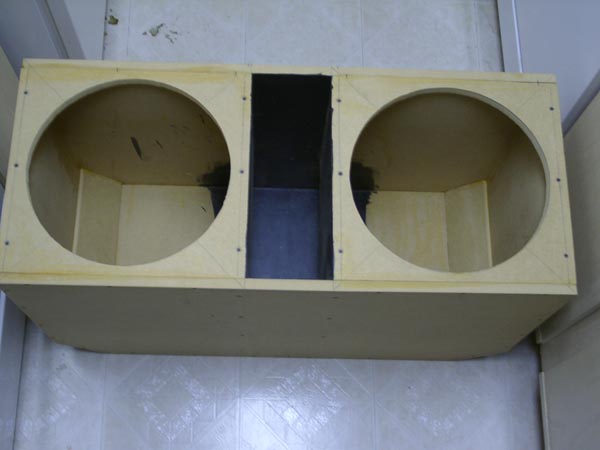

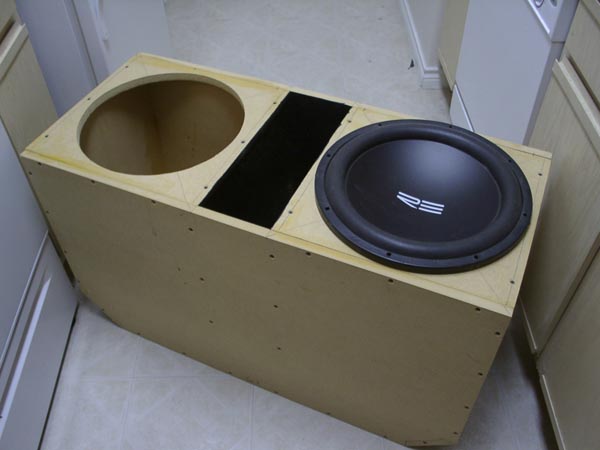

Well its done.. minus the resin for the corners.. double baffle and port insert.. but yeah here it is.

Upload
Upload


Gold Member
Username: Drivingreckless

DD 9515f, USA

Post Number: 2750
Registered: Apr-06
hows it look in the car???


Silver Member
Username: Jblanford

Post Number: 345
Registered: Oct-06
it prolly doesn't fit lol


Silver Member
Username: Jblanford

Post Number: 346
Registered: Oct-06
but it looks great


Gold Member
Username: Bestmankind

Www.15inchwangers.comFI Audio BTL

Post Number: 9680
Registered: Oct-05
good job kev. you da man. get that box metered and get us some numbers.

btw meter it legal and give us some real numbers. lol.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2801
Registered: Nov-05
yea.. hopefully it fits lol if not i guess ill sell it.. won't know till this weekend :-(

and btw.. the rotozip is my best friend when it comes to cutting holes.. i sued to use a jigsaw but not anymore.. comes out much cleaner and easier with a rotozip.. i was suprised how good they can out without using a guide of any sort :-)


Gold Member
Username: 54danny54

KY More Wang Th...

Post Number: 3256
Registered: Nov-04
kickin a dude


Silver Member
Username: Tremor1127

Wishes there was an 18...

Post Number: 727
Registered: Aug-06
routers cut perfect holes too... :-)


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2802
Registered: Nov-05
yes.. i wish i had one.. if i did i'd have done a lot of stuff different :-)


Gold Member
Username: Nyyfan13

Fi SSD USA

Post Number: 2808
Registered: Jul-06
great looking box like always


Gold Member
Username: Extrmndor3

Sit and Look pretty

Post Number: 3373
Registered: Feb-06
do you cut your wood or you go to lowes and let them cut it for ya????


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2803
Registered: Nov-05
I had home depot cut two pieces so i could fit it in my car.. and well both cuts were an 1/8" off.. so i don't suggest getting your wood cut there :-)

the sad thing is i watched the guy double check the measurement

other than that i used a basic ole skilsaw


Gold Member
Username: Extrmndor3

Sit and Look pretty

Post Number: 3376
Registered: Feb-06
cant use that the last time i built a box with the a skil saw or circular saw i coulnt do it i dont know why so i guess im gonan be ending gettin a table saw


Gold Member
Username: Johnfiac

IL Afghanistan,...

Post Number: 1133
Registered: Mar-06
I have to build my boxes with almost no equiptment feel lucky.... i have a jigsaw, a power sander (which is to big to fit in alot of places) and then a skill saw... thats all.... its sorta a pain because of how time cunsuming it is to make sure everything is straight.... and Jack... thats why you tell them to cut it a little bigger then you want :-) but its nice, did you carpet it? and those r the 15's right?


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2804
Registered: Nov-05
yes they are 15s.. and no i did not carpet it.. i have another plan which ill will port after i get it in :-) hehe


Silver Member
Username: Tremor1127

Wishes there was an 18...

Post Number: 733
Registered: Aug-06
hey kevin, you can get a nice router at a pawnshop for like 30 bucks give or take... bits cost almost as much as that though...


Silver Member
Username: Tremor1127

Wishes there was an 18...

Post Number: 734
Registered: Aug-06
your box came out awesome though, nice craftsmanship...


Silver Member
Username: Adam_s

Post Number: 433
Registered: Aug-04
Nice box....What are the Specs for it?


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2805
Registered: Nov-05
In short..

Type: Vented Box
Shape: Prism, square
Vb = 5.457 cu.ft
Fb = 45.17 Hz
F3 = 39.64 Hz
Fill = none
No. of Vents = 1
Vent shape = rectangle
Vent ends = one flush
Hv = 15.5 in
Wv = 6 in
Lv = 15.75 in


And yes I know it is a little small for 15s but I had to build the box to fit the trunk, not to fit the subs.. still gotta build the drop in port to tune down for daily


Gold Member
Username: Bestmankind

Www.15inchwangers.comFI Audio BTL

Post Number: 9699
Registered: Oct-05
alot of times smaller box sounds better in a small car.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2811
Registered: Nov-05
the plus is ill have more cone control given im using more power for the subs anyway.. and boxes that are tuned higher work fine with smaller enclosures...

i just hope it sounds decent daily tuned to 35-36hz :-)


Gold Member
Username: Bestmankind

Www.15inchwangers.comFI Audio BTL

Post Number: 9701
Registered: Oct-05
if its tuned low enough it will have good response. i have noticed that with smaller boxes, it sounds better with the lpf on your amp set lower. the higher frequecies tend to peak more in a small box. that was the case in my box. i set the lpf down to 70hz from 90hz and it sounds much better.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2813
Registered: Nov-05
i run mine at around 80hz right now.. im interested to hear how it sounds, man ive been killing to run two of these again


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 2383
Registered: Jan-06
I remember back in the day we ran LPF for the subs at 50/55hz and that was sealed, lol. I run mine now at around 55/60hz dependant on music type as I can set mine from inside the cabin. Anything above that is taken care of by mids, making your sub reach so high will make it sloppy, especially a 15..Polo. :-)


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2817
Registered: Nov-05

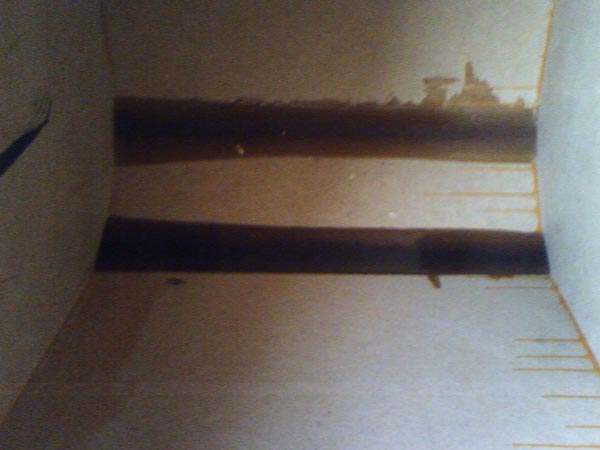

little resin work today.. damn these corners are getting round :-) .. from two 45s to three 30s

Upload


Gold Member
Username: 54danny54

KY More Wang Th...

Post Number: 3262
Registered: Nov-04
nice job


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2823
Registered: Nov-05
ill do the other two tomorrow.. no more daylight and the temp is dropping :-(


Silver Member
Username: Snarl2004

Post Number: 119
Registered: Dec-06
do you need to put resin in a box?


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2824
Registered: Nov-05
no.. but it seales the pores of the box making the air flow more freely with less drag..

it also adds strength

in my case im just using it to strengthen the joints where the 45s are and to help rounding off the corners even more


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2846
Registered: Nov-05
w00t w00t! .... one more day till install .. haha


Gold Member
Username: Stnorris

Davenport, IA US

Post Number: 1976
Registered: Apr-06
nicely done.....should be loudd


Platinum Member
Username: Rovin

1 12 Atomic ...

Post Number: 10523
Registered: Jul-05
looks gr8

r u going to resin the whole inside of that box 4 even more output ? .......


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2848
Registered: Nov-05
gonna run it like this first and see what i get.. i may just leave it.. last box i resined did not put up any better numbers.. well it did but it dropped the note 3hz.. so it got just as loud 3hz lower.


Gold Member
Username: Bestmankind

Www.15inchwangers.comFI Audio BTL

Post Number: 9756
Registered: Oct-05
why one more day to install kev. get your azz outside and finish the install now.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2852
Registered: Nov-05
i had my dad meet me at work and pick up the box.. today im going out for my b-day with my girl.. tomorrow im going out of town and ima work on it all day.. i did not have enough time to try and do the install in a few hours today

but yeah, tomorrow is judgement day.. hopefully it fits.. i have a worry it won't but im going to try my best


Silver Member
Username: Phil_salisbury

Post Number: 147
Registered: Sep-06
Ummm, never even considered looking for tools in a pawn shop. I'll have check out the local shops to see what they have.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2853
Registered: Nov-05
sometimes you can pick up some good deals but most pawn shops here go by ebay prices.. so odds are you can get something better off ebay...

but once in a while you find a stupid one and youll snag a deal :-)


Gold Member
Username: Van_man

Boston South, MA

Post Number: 1824
Registered: Mar-06
Nice audio enhancer. And tool definatily make the diffrence in making boxes. Pawn shops around hear always have cheap tool. Most of em are beat and crap makes. But every so often you come across a find. So far I snaged 3 Zapcos for dirt cheap. the guy doesnt even know what they are. He calls em driving force amps.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2865
Registered: Nov-05
yea my buddy got two Treo SSI 10s in a box for $100 because they were labeled "No Name" subs... haha
