Mono amp (noob question) simple question


Bronze Member
Username: Lance_p

Post Number: 35
Registered: Jan-07
i have a PG RSd 1200.1 mono amp and i was thinking about getting two subs, but when i look at the amp, there is only one set of positve and negative connectors. Does this mean i cant run two subs to this amp and only one? Are mono amps meant for only one subs? (hence the word mono)Sorry but i just dont want to end up buying something i cant return so I have to know.

Gold Member
Username: N2audio

Lawrence, Ks USA

Post Number: 1151
Registered: Mar-04
hence the term "mono"

you just have to know what configuration your subs' voice coils need to be in order to get the impedance you want.

that amp is 1000-1200w at 2 ohms.
If you're getting a pair of subs you need either single 4 ohm voice coils, or dual 2 ohms.

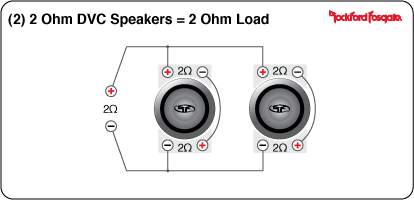

you'd wire them like this...

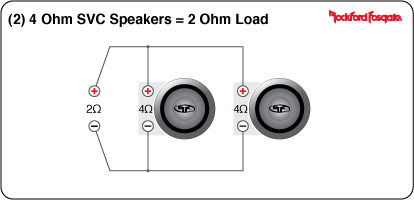

or like this

Gold Member
Username: N2audio

Lawrence, Ks USA

Post Number: 1152
Registered: Mar-04
and they need to be able to handle at least 500w rms a piece.

Silver Member
Username: Sinful_systems70

Post Number: 231
Registered: Nov-06
The answer to your question about "mono" is NO. You can run more than one sub on a Mono amp. Just in case you couldn't figure that out by Optidriven's posts
