Sketch Up New Design



Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2768
Registered: Nov-05
Old box would not fit after I did a cardboard template to test the fitting of it inside my trunk...

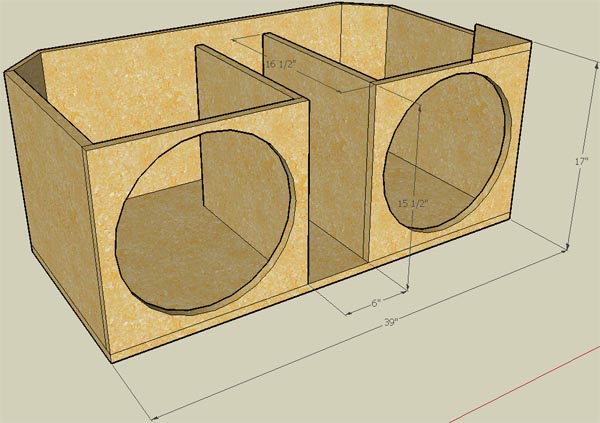

heres the new design and I think it will actually fit.. have to do finaly measurements but here is a scale model..

Upload


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2769
Registered: Nov-05
whoops.. depth is 22.5" ...hehe


Gold Member
Username: Bernymac

Cambodian

Post Number: 1802
Registered: Sep-04
nice indeed


Gold Member
Username: Bestmankind

Www.15inchwangers.comFI Audio BTL

Post Number: 9539
Registered: Oct-05
looking good kev.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2770
Registered: Nov-05
It should be built tomorrow.. only if everything will work out before I build it..

I wish marshall could over-look this will me.. it is short on box volume but I can't do anything about it unless I went with less port area :-(


Gold Member
Username: Tdeaton1021

Near Tampa, Florida USA

Post Number: 3570
Registered: Sep-04
whats the volume?
and that box looks great. you took out some 90 degree corners.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2772
Registered: Nov-05
it is smaller .. i had to cut the corners to allow the box clearance to slide through..

ya see if i put it in at a slight angle and push it back.. i should have enough clearance with those angles to clear and allow me to turn the box in..

after displacement it came out to be 5.458cu.ft ... i know its a little small for two 15"s but that is all i can fit into my trunk without trying to build it inside.. gotta sacrifice something i suppose but its all good.. still be slamming
