Upgrading receiver but different pins???



Bronze Member
Username: Drwang

Santa cruz, Ca

Post Number: 51
Registered: Dec-05
I am upgrading to the Pioneer DEH-P7800MP receiver in my Mustang, but I CANNOT use the existing wiring harness that came with the DEH-P4700MP receiver. The wiring pin layouts are completely different. So I need to reintegrate the new wiring harness and the receiver into my 2004 Mustang. How do I go about doing this? Can I just match wire colors and solder wires together? I couldn't find a wire diagram for my car. Thanks.


Silver Member
Username: The_image_dynamic

San Diego

Post Number: 118
Registered: Dec-06
http://www.directwholesale.net/diagrams/diagram.asp?ModelID=14091&MakeID=18&link =BULLDOG


Silver Member
Username: The_image_dynamic

San Diego

Post Number: 119
Registered: Dec-06
And you need something like this if you want to be able to reinstall the factory system when/if you sell the car and avoid hacking wires:
http://www.audiooutfitter.com/store/70101/705511.html


Gold Member
Username: Leew

XXXX!!WWWW, Yokosuka, ... YAKUDZA JAP...

Post Number: 1251
Registered: Jan-06

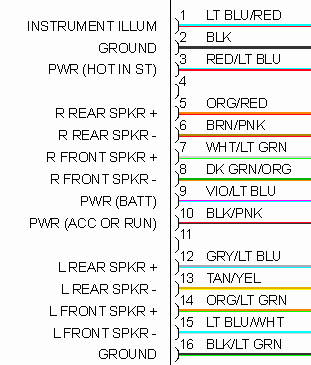

this is "oem hu" pin out..(base model)
Upload


Bronze Member
Username: Drwang

Santa cruz, Ca

Post Number: 52
Registered: Dec-05
thanks for the diagram!


New member
Username: Zorro07

Post Number: 1
Registered: Jan-07
Hi! I'm looking for wiring diagram for a 93 Ford Telstar tx5 (like a mazda 626) can you help?

Cheers
