Box Help..Kev,Chad, Previous Re holders :-)



Silver Member
Username: Bump05

We Stay Fly, 18 SX USA

Post Number: 618
Registered: Aug-06
alright u might of seen my last post but no one loved me :-( anyways i have a single slot port design box sub is up port is back its 6.2 cubed tuned to 35hz and its loud i was thinking about doing a dual slot port one left and one right and sub up in the middle u think this could enhance it or what design would u go with btw i drive a hatch roush i love u guys thanks :-)


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8210
Registered: Oct-05
sub up and 4 4inch aeroports to the back.


Silver Member
Username: Bump05

We Stay Fly, 18 SX USA

Post Number: 619
Registered: Aug-06
thats what i was thinking. also...i really wanted aeroports badly.. iyo you think u would be able to tell the difference?
and just in case how would u think the dual slot idea would work worse then the one i have no or ???


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8211
Registered: Oct-05
i wouldn't do a dual slot port.

btw how much port area do you have right now?


Silver Member
Username: Bump05

We Stay Fly, 18 SX USA

Post Number: 621
Registered: Aug-06
i forgot to be honest work it out though its 18.5 high 4 inches wide and 15.5 long


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8212
Registered: Oct-05
thats a good size.

if you are gonna do slot port again, try rounding the corners.

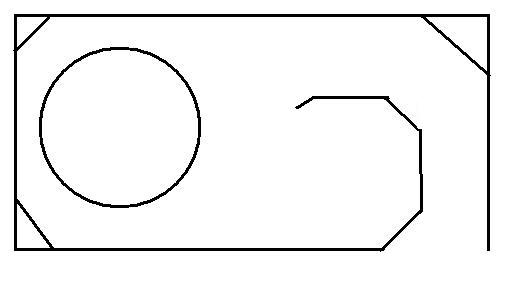

this is the design i had in mind when i had my re sx 18.

Upload


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8214
Registered: Oct-05
or like this.

Upload


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2199
Registered: Nov-05
this is a focus hatch? .. i've seen two kicker comp 15s do a 149 with subs/port up

but i'd do sub up and port back.. with the 4 4" aeros youll get less port noise and less turblance = more dB :-)

don't do dual ports.. keep ports on the same plane if your doing aeros.

how much power are you sending it btw.. if it is not loud enough i have a feeling it is not getting enough power :-)


Silver Member
Username: Bump05

We Stay Fly, 18 SX USA

Post Number: 622
Registered: Aug-06
no its loud bro...but as u said power is an issue right now..im searching but im wanting 1400-1600wrms on it soon on my buddys mm1000d i metered it at 146.2 so im thinking with my amp im getting and the aeroport design i should do better


Gold Member
Username: Southernrebel

Monroe, Louisiana DD 9515d~~]...

Post Number: 3992
Registered: Mar-04
I'm still selling 6" flared ports if you need any.

$25+ship each


Silver Member
Username: Bump05

We Stay Fly, 18 SX USA

Post Number: 625
Registered: Aug-06
you think 3 6" flared ports would be fine for that box on the bottom in the same plane so sub up and ports holes to the bottom 3 of them?
