Do You have a Alpine 3342?



New member
Username: Labeaudude

Salem, Or. The States

Post Number: 5
Registered: Jun-06
I'm willing to pay $ for someone to open up their 3342 controller head, & take a pic of the "cable in" pcb. I've rec'd. a new head, & cable, Now in need of the placement of the input configuration. Sorry if it sounds complicated, but ALL I NEED is a pic of the colored wires!! ANY TAKERS would recieve a big kickdown!! thanx in advance to my friends in ecoustics..........eric dude


New member
Username: Redneck_tom

Post Number: 1
Registered: Dec-06
Hi Eric,
You're a lucky one. I try to sell my 3342 so I took the chance and opened the control unit.

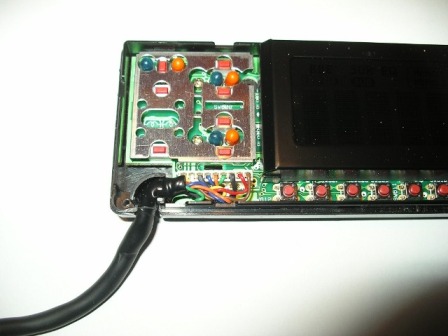

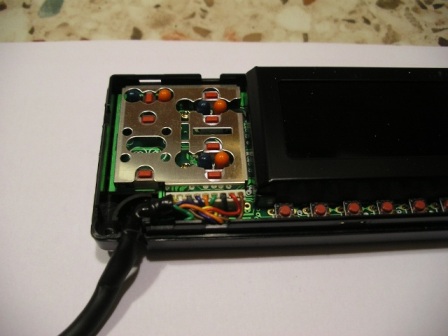

Order of colors from left to right:
yellow, white, light grey, blue, orange, green, dark grey (maybe black), red, brown

Details see enclosed pic.

regards




Upload
Upload


New member
Username: Labeaudude

Salem, Or. The States

Post Number: 6
Registered: Jun-06
{hey!!!, thomas.........YOU DA MAN!!!......Will you let me know if there's ANYTHING I can do for you??!!......eric


New member
Username: Jackie123

Harrisburg, PA United States

Post Number: 3
Registered: Sep-18
You guys still have these?


New member
Username: Wiru

Temecula, California Estados Unidos

Post Number: 1
Registered: Sep-21
DEAR MEMBERS
Please help i bought a Alpine 3342 EQ on ebay but is completly dead. my tech is asking me to get for the schematics in order to fix it. Does anybody have it. I will really grateful. thank you in advance
