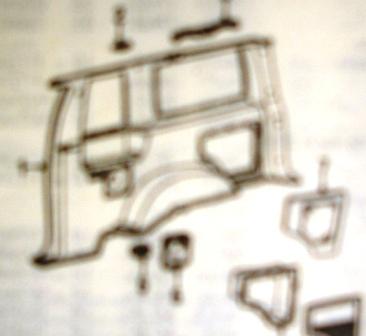

this pic.from ford.ex. sport (two doors),but it will give you idea,how to get there.
Upload


Silver Member
Username: Jenifer_contreras

Tampa, Florida USA

Post Number: 114
Registered: Jul-06
for Sam: location of oem Amp.
Upload


New member
Username: Hueso007

Post Number: 5
Registered: Aug-06
I have a good one for Mike. I was over hearing a buddy of mine tell me that there is an adaptor for the stock stereo (connecting plug) from the car that you can plug into and attach a new stereo unit without cutting wires. Is this true? If so, damn I've been gone a while. If they do exist, what are they called and where can I purchase one?
Thank a million.
Aaron


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 518
Registered: Jan-06
well Aaron.
the name of this sh!t: Stereo Wire Harnesses.
you can get it from bunch of place...
this link is for example.
http://www.installer.com/wires/


New member
Username: Hueso007

Post Number: 6
Registered: Aug-06
Damn your good. Thanks again for all your help.
You rock, keep up the good work.
Aaron


New member
Username: Markvint

Post Number: 1
Registered: Aug-06
1995 honda accord lx, pretty please, make my day !


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 520
Registered: Jan-06
Aaron,any time!
I hope you get it right.
good luck!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 521
Registered: Jan-06
and for m
honda accord lx,diagrams for base and premium radio
application/x-zip-compressedUpload
honda accord lx.both radio.base and premium.zip (68.0 k)


New member
Username: Lgalaz24

Post Number: 3
Registered: Aug-06
I'm a little fustrated, I just tried to install a after market radio on my 1997 mustang gt... But for some reson when I try to connect the speakers to the new radio I don't get any sound.. I have the wiring diagram for it but I don't get any sound... I have the radio with rear amps, I'm not to sure if I didn't connect the wire for the amp... I don't really know where to connect it or which wires... So please help me!!!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 522
Registered: Jan-06
Louie,Download this diagrams,print them out,go to the car,see which oem amp you got.
check all sound system fuses (it's only three of them). Then connect all wires exatcly by schema!double check!Start your car(or turn to ACC).
P.S.the second problem, could be problem with "Om's" setting.Oem speakers and amp does not match to "Om's"setting at your new HU.,then you need buy new set of speakers and go straight ...

application/x-zip-compressedUpload
ford mustang 1997 gt.zip (98.3 k)

application/x-zip-compressedUpload
ford mustang 97 overall.zip (34.6 k)


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 523
Registered: Jan-06
once I saw 2000 toyota camry le,with oem speakers 16 Om....


New member
Username: Lgalaz24

Post Number: 4
Registered: Aug-06
Yes!!!Mike, I got it going I used the diagrams and found out that I didn't connect the blue audio wire... Wow man, I really appreciate the help Mike.. You really know your stuff thanks a lot!!!!!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 524
Registered: Jan-06
thanks Louie,Im happy for youUpload


New member
Username: Hitman1214

Post Number: 1
Registered: Aug-06
I need 95 Mercury Tracer Stereo Information
Thanks


New member
Username: Carrottcake

Victoria, BC Canada

Post Number: 2
Registered: Aug-06
Hey, I thought I was lost when I was starting the stereo thing. Now this internet thread thing is making me think I'm getting old and can't handle the technicals anymore. Anyways I'm looking for the know how to install a mp3 player in my 88 jetta. I just connect the wires to the other matching colored wires and then tape em? The wires on my new stereo wont be the same as the ones in the car will they? Will I blow myself up? :-) Thanks for choosing to help me :-)


New member
Username: Cindyb

Bellevue, NE

Post Number: 1
Registered: Aug-06
Help Please!!!

I have a 1994 Jeep Grand Cherokee--I've seen wiring info that was close, and thought I had it right once, but nothing seems to match exactly.

One odd wire from the car to head unit is Brown/Pink. There is also Brown/Red. Any wiring that includes those???

Thanks so much!


New member
Username: Cindyb

Bellevue, NE

Post Number: 2
Registered: Aug-06
Do you have info for a 1992 Plymouth Laser? I installed a Pioneer head unit--and maybe the problem is the unit--but I can't get the darn thing to dim at night. It is horribley bright!

Thanks again!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 528
Registered: Jan-06
Cindy,this one for plymouth laser.
try to reconnect your wires, exactly by this schema.

dont look at yel/red and wht/red wires

Upload


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 529
Registered: Jan-06
Cindy,about yours JEEP,I need more info:what is it?(laredo,limited..etc.)and how many original speakers 4 or 6 !!!
thanks.


New member
Username: Daddy_xlt

San Bernardino, CA USA

Post Number: 1
Registered: Aug-06
Anybody have a diagram or can give me a description of the wiring on a 06 F150 with factory Sirius satelite?

Thanks


New member
Username: Daddy_xlt

San Bernardino, CA USA

Post Number: 2
Registered: Aug-06
Oops... that was pretty vague. I'm looking for a description on the stereo and satelite wiring. Thanks


New member
Username: Ryan86

Tonopah, Nevada USA

Post Number: 1
Registered: Aug-06
I want to hook up a new amp to my 97 ford explorer it has a JBL premium system with a stock amp already in it can i use those wires to hook them up to the new amp and if so how i need wiring codes


New member
Username: Onyx_ice

Michigan America

Post Number: 2
Registered: Aug-06
I need some help re-wiring a Jensen MP7610 into a '93 Ford Ranger. Everything's hooked up and works, but if my truck sits for a few hours without being started, when I do start it the clock and settings are reset. Not sure which wire is wrong, but if anyone could suggest a fix it'd be greatly appreciated.


New member
Username: Onyx_ice

Michigan America

Post Number: 3
Registered: Aug-06
I need some help re-wiring a Jensen MP7610 into a '93 Ford Ranger. Everything's hooked up and works, but if my truck sits for a few hours without being started, when I do start it the clock and settings are reset. Not sure which wire is wrong, but if anyone could suggest a fix it'd be greatly appreciated.


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 536
Registered: Jan-06
battery wire wrong connected.


New member
Username: Nickintx

Kilgore, Tx US

Post Number: 2
Registered: Aug-06
ok Mike, I know this isnt an AUDIO question, but has to do with wiring, so here we go, I just recently purchased some new side mirrors for my '98 Cavalier, well they have led lights to connect to the blinkers, to make for a newer style blinker, well Im not sure the colors nor the location of the original blinkers to hook into could ya help me out


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 540
Registered: Jan-06
Nicholas you have two choices:
short way:remove trim panel on a door/be carefull,dont broke plastic retainers/.then remove turn/hazard-headlamp swith assembly and look for light blue(for left turn) & dark blue(right turn) wires.Run new line through post to the mirror with main line(like speaker,power windows,locks...etc.).Watch out for glass,when it's going down,glass can cut your new line.Ground wire you can connect into any unpainted metal place inside of the door.Put everything back.Do the same with another door(if it's right door then the wire will be much longer.)
make everywhere proper connection!

application/x-zip-compressedUpload
chevy.cava.1998 turn signal on a mirror.swith assembly.zip (7.6 k)

---------------------------
second way:
you can run each line,straight from park/turn signal lamp.Wires is the same color light blue for left turn signal & dark blue for right turn signal.But when you open the hood and see all this wires going to somewhere,it's looks...you know how..

application/x-zip-compressedUpload
chevy.cava.1998 turn signal on a mirror.zip (7.6 k)


let me know,if you got some problem.
Goodluck.


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 541
Registered: Jan-06
Nicholas ,maybe you need this diagram too(schema of the mirror).
application/x-zip-compressedUpload
chevy.cava.98 mirror schema.zip (14.7 k)


New member
Username: Jew

Post Number: 1
Registered: Aug-06
does any one have the wiring diagram for a 97 chrysler sebring coupe, i had a diagram an it said hook the remote from the radio to the antenna but i dont know what too look for, can any one help?


New member
Username: Ts31

Post Number: 1
Registered: Aug-06
I am trying to install an alpine stereo in my 1994 nissan altima but the factory wire harness has been cut out. I aquired the wire coding for both the stereo, There are 2 constant and switched power lines on the car witch one do I use? There are 2 illumination wires and a dimmer wire, what do i hook them up too? Is the attenna trigger wire on the altim and the power attenna the same? The alpine stero also requires a remote on and a audio mute wire that isn't listed on the wiring diagram for the altima where get hooked up? Please some body help!!!!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 542
Registered: Jan-06
for john williams ,try blue wire(this is ignition wire,aka acc wire).The red one is battery +12V.


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 543
Registered: Jan-06
for Todd Schell:
the attenna trigger wire on the altim and the power attenna the same= yes.
There are 2 constant and switched power lines=one (two) powered radio and the other two CD player.
audio mute wire=connect to the ground.

and schema is here:
application/x-zip-compressedUpload
nis.altima 1994.zip (15.9 k)


New member
Username: M8ball

Aurora, IL USA

Post Number: 3
Registered: Jul-06
Need wiring diagram for 2000 Ford Explorer.


New member
Username: Greg123456789

Jarvis, Ontario Canada

Post Number: 3
Registered: Jun-06
hey i need the wiring schematics for a 1997 Mazda 626. thanx in advance


New member
Username: Greg123456789

Jarvis, Ontario Canada

Post Number: 4
Registered: Jun-06
i need a wiring diagram for a 1997 Mazda 626. thanx in advance


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 544
Registered: Jan-06
greg,mazda DX,Es,LX?????


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 545
Registered: Jan-06
for Michael J Heise,radio base model with cd changer

application/x-zip-compressedUpload
ford explo.2000 base model radio.zip (60.8 k)


New member
Username: Coyote

Post Number: 1
Registered: Aug-06
hello mike, im looking for a 2005 ford escape color-code diagram for the stereo harness, any ideas..........


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 546
Registered: Jan-06
...
2005 ford escape
application/x-zip-compressedUpload
ford escp.2005 base.zip (17.9 k)


New member
Username: Weldmen

Post Number: 1
Registered: Aug-06
Hello Mike,
I am looking for the pin out diagram for a 2001 ford radio. T100 plug end. I have attached some pics for reference.

Thanks
Weldmen
Upload
Upload


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 548
Registered: Jan-06
It's very hard to say,ford make alot of modification. I need:exactly from which model of ford the radio was pulled out.


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 549
Registered: Jan-06
if you not sure from which model is it,make me pictures of the label with serial and model number & monday I will call to the ford dealer.


New member
Username: Weldmen

Post Number: 2
Registered: Aug-06
Hey Mike,

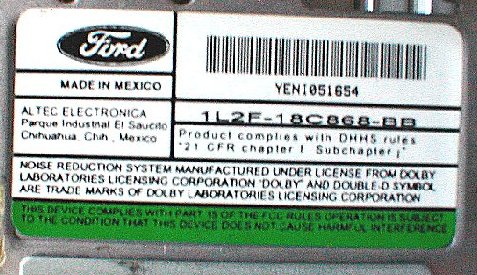

It is out of a Explorer I think. But here is the pic of the tag on back.Upload


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 550
Registered: Jan-06
ford explorer 2001 base model:
application/x-zip-compressedUpload
base radio ford explo 2001.zip (19.6 k)


New member
Username: Wm05a2687

Tappan , NY US

Post Number: 2
Registered: Aug-06
I have a 97 ford explorer with a stock face and I needed to get a adjustable line output converter for the avs for the subs but i dont knwo what wires go to what and i dont know all the of speaker wired on my truck, can anyone help ?


New member
Username: Baddog89

CA USA

Post Number: 1
Registered: Aug-06
I have a 1997 Ford Explorer XLT and having problems with the factory radio (casette/cd w/ 6 cd changer)

The display on the radio has gone out and sometimes I can't adjust the volume

any ideas?

thank you for your time


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 551
Registered: Jan-06
John Martin ,time to change radio.If you prefer original HU,then go to local junk yard ,Iam sure they have it in stock...,dont pay more then 150$ for the HU.


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 552
Registered: Jan-06
Ted Plenge,fire up your truck,then cross Tappan Z bridge and meet me at Nayak Nissan dealer ship.I'll give you everything there...just kiding,
give me more info about your car,(what is ..XLT...do you have cd changer or oem amp..etc.)


New member
Username: Jeepnhard

Post Number: 1
Registered: Aug-06
Need a 1988 Jeep Cherokee full harness diagram, do you have this?


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 553
Registered: Jan-06
nope,only for radio


New member
Username: Wm05a2687

Tappan , NY US

Post Number: 3
Registered: Aug-06
Ok so its a 97 ford explorer xlt control trac 4wd it had a stock radio which has a casset and a 6 disk cd changer in the center consol. I need to attach a adjustable line output converter and It needs to be attached to the rear speakers. The wires on the converter are gray, gray w/ blk stripe, white, white with blck stripe and 2 brown grd wires. Help please ! i dont klnow which wires go where i cant decifer the speaker wires and even if i do i dont know which wires from the av converter should attach to what


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 554
Registered: Jan-06
Ted,if you have no JBL system,this the diagram for your radio,but check it before all wires.
and ask Jexx, about oem amp bypass adapter

application/x-zip-compressedUpload
ford explo.97with amp.no JBL system.zip (82.4 k)


New member
Username: Zardin

Post Number: 2
Registered: Aug-06
Hi Mike. I was wondering if you had any information as to how I could run new speaker wire in my 94 Ford Explorer XL. It came with a premium system, but instead of bypassing the amp, I want to run all new speaker wire, but I don't know how to get to the holes where the wires go into the doors. Any and all help is appreciated.


New member
Username: Palantyri

Post Number: 1
Registered: Aug-06
I need the wiring instructions for a 1990 Mitsubishi Mighty Max (reg). color codes please. I'm missing something, just not sure what...

Thanks in advance...


New member
Username: Donramon

Post Number: 1
Registered: Aug-06
1998 mustang V6 please! Thanks :-)


New member
Username: Littleozzy

Post Number: 1
Registered: Aug-06
Hey Mike W Lee,

You sound like the right person to help me out. My girlfriends car was just broken into two night ago and the stereo was stolen so I am hoping to install a new one this week.

She drives a 1995 Cavalier and it would help me alot of you knew where I could download the wiring diagram for the stereo hook up.

Thanks so much in advance.


New member
Username: Floydog

Post Number: 3
Registered: Aug-06
2000 Grand-am GT hu wire diagram would be a life saver


New member
Username: Ian_from_montreal

Hudson, Qc. Canada

Post Number: 1
Registered: Aug-06
I need help finding a wiring diagram for my ford taurus 94 with JBL premium system and amp. My son tried to put in a new radio and cut the wires now nothing is working I need the diagram. Please help!


New member
Username: Bentley4x4fanatic

Archbold, Ohio Us

Post Number: 1
Registered: Aug-06
i need a wiring diagram for a 1986 ford ranger xl 4x4
it has been haked all up but is still the factory harness if somone could find the diagram i would be delieted
i have been looking for the diagram for like 4 hours if somone could help that would be awsome thanx!!!!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 556
Registered: Jan-06
Ford Ranger 1986
this is witout amp and no premium radio:
application/x-zip-compressedUpload
ford ranger radio.zip (11.4 k)


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 557
Registered: Jan-06
Ford taurus 1994 JBL Radio
application/x-zip-compressedUpload
Ford Taurus 1994 JBL radio.zip (96.2 k)


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 559
Registered: Jan-06
Ford taurus 1994 JBL Radio


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 560
Registered: Jan-06
2000 Grand-am GT Radio without Amp.

application/x-zip-compressedUpload
ponty am.2000 w.o amp.zip (29.9 k)


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 561
Registered: Jan-06
Chevy caval. 1995
application/x-zip-compressedUpload
Chevy Cava 1995 Radio.zip (34.6 k)


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 563
Registered: Jan-06
ford mustang 1998 w.o amp:
watch out for rear right - : wire change color
application/x-zip-compressedUpload
ford mustang w.o amp.zip (22.5 k)


Silver Member
Username: Jenifer_contreras

Tampa, Florida USA

Post Number: 135
Registered: Jul-06
Lane Travis Robey,just look on my pick's,like that you have to wired your ford.
Upload
Upload


New member
Username: Littleozzy

Post Number: 3
Registered: Aug-06
Thanks so much Mike W Lee


New member
Username: Zcaldwell1

Post Number: 1
Registered: Aug-06
i need wiring color codes for a 1987 lincoln mark 7 lsc.....i'm tryin to hook up a cd play beut i don't know which wires go to what.......the factory wire connectors are cut off


New member
Username: Zcaldwell1

Post Number: 2
Registered: Aug-06
i need wiring color codes for a 1987 lincoln mark 7 lsc.....i'm tryin to hook up a cd play beut i don't know which wires go to what.......the factory wire connectors are cut off

the wire colors are
red
black with a white stripe
yellow with ablack stripe
dark green
white with a red stripe
lime green
lime green witha yellow stripe
pink with a lime green stripe
pink with a thick blue stripe
pink with a skinny blue stripe
orange with a blue stripe
2 blue with a red stripe


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 564
Registered: Jan-06
1987 lincoln mark 7 lsc
application/x-zip-compressedUpload
1987 lincoln mark 7 lsc.zip (55.3 k)


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 565
Registered: Jan-06
Justin
Username: Littleozzy

Sorry It's not me,it's Jenifer Contreras,she helps you out.

You have to remove Trim panels on a doors and center pillars,then take out ruber boot and run wires through,like main lines...


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 566
Registered: Jan-06
Justin,my bad ,the post above not for you it's for Lane Travis Robey,


New member
Username: Zcaldwell1

Post Number: 3
Registered: Aug-06
1986-1989 lincoln mark 7 stereo wiring...NEED TO KNOW WHICH IS REMOTE WIRE?

i 1987 lincoln mark 7 lsc.....i'm tryin to hook up a cd player and i have thepower ground and antenna wires hooked up but i need to know which wire is the remote power amp wire tha cuts my cd player on .......the factory wire connectors are cut off

the wire colors are
red
black with white stripe
yellow with black stripe
dark green
white with a red stripe
lime green
lime green witha yellow stripe
pink with lime green stripe
pink with thick blue stripe
pink with skinny blue stripe
orange with blue stripe
2 blue with red stripe

CAN SOMEONE PLEASE HELP ME????????


New member
Username: Ian_from_montreal

Hudson, Qc. Canada

Post Number: 2
Registered: Aug-06
Mike Lee, Thank you so very much!..


Silver Member
Username: Jenifer_contreras

Tampa, Florida USA

Post Number: 136
Registered: Jul-06
zack!
yellow with black stripe is remote aka acc wire !


New member
Username: Ixj22

Faribault, MN USA

Post Number: 5
Registered: Aug-06
I need help figuring out the stero wiring color codes for a 2004 Chevy Cavalier. Please, i really need help! Thanks!


Silver Member
Username: Jenifer_contreras

Tampa, Florida USA

Post Number: 138
Registered: Jul-06
Shalom Israel Rivera,mashlomcha!a kal borchashem? Ma hadash ?


New member
Username: Ixj22

Faribault, MN USA

Post Number: 6
Registered: Aug-06
im sorry jenifer but i dont know what you are asking, i speak english and spanish only


Silver Member
Username: Jenifer_contreras

Tampa, Florida USA

Post Number: 139
Registered: Jul-06
it's hebrew,
wait for Mike,he will post it for you!


New member
Username: Ixj22

Faribault, MN USA

Post Number: 7
Registered: Aug-06
hey jennifer, would mike be able to also tell me what the wires do (like, acc, negative, positive...)thanks i would really appreciate all your help


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 569
Registered: Jan-06
Hola Jen.

well...
Israel Rivera,I need more info about yours HU,do you have oem amp,or satellite radio.Do you see some labels/like U-85 or U-82/.
BTW. I tell you now,there is no ACC wire in your system,it's controled by BCM,so you have to run new ACC line from cigarette lighter to new HU !


New member
Username: Palantyri

Post Number: 2
Registered: Aug-06
Mike or Jen

You folks rock. That you hook people up like this is seriously cool.

I posted a request a couple days ago, not sure if it got missed. Looking for a diagram/wiring instructions for a 1990 Mitsubishi Mighty Max (or Dodge D50 is the same body). the factory end got clipped off when the stereo got replaced, then a couple weeks ago when it got stolen, well. you know the drill.

Thanks so much


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 573
Registered: Jan-06
Mitsubishi Mighty Max
there is two diagrams
one 4 speakers,the other 2 speakers
application/x-zip-compressedUpload
Mitsubishi Mighty Max.zip (25.4 k)


New member
Username: Ixj22

Faribault, MN USA

Post Number: 8
Registered: Aug-06
thanks anyway mike, i think i am going to just wait and buy the connector, i didnt really want to buy it cause its like 70 dollars. too complicated for me, thanks anyway for all your guys' help


New member
Username: Palantyri

Post Number: 3
Registered: Aug-06
Thanks again Mike!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 576
Registered: Jan-06
no problem james b,any time!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 577
Registered: Jan-06
Israel Rivera,this what you need:
The name is gmrc-02...~80$,I saw on e-bay for 30$


Upload


New member
Username: Floydog

Post Number: 5
Registered: Aug-06
2000 Grand-am gt It has an amp back tweeters cd an tape deck(i hate pontiacs) THANKS MAN!!!!!!!!!


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 581
Registered: Jan-06
i hate pontiacs...
I know,
trade it in, for Japan car
This diagram, will help you out
application/x-zip-compressedUpload
Ponti Am 2000 radio with AMP.zip (44.5 k)


New member
Username: Floydog

Post Number: 6
Registered: Aug-06
U ROCK THANKS


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 582
Registered: Jan-06
no problem!


New member
Username: Bentley4x4fanatic

Archbold, Ohio Us

Post Number: 2
Registered: Aug-06
i need a wiring diagram for a 1991 chevy s10 because the stock one sucks and i am putting in a cd player would a GM wire plug n play adapter work for that year s10
because the plug and play works for my grand prix will the s10 have that same plug end


New member
Username: Nickintx

Kilgore, Tx US

Post Number: 5
Registered: Aug-06
hahah ok ok, I know im back Mike but I just couldnt resist you experitse haha, anyways here is my newest adventure....here is what we have. I just recently purchased an aftermarket tachometer, I will be hooking it up in my '98 CHEVY CAVALIER, now keep in mind I DID NOT PREVOUSLY HAVE ONE OF ANY KIND, that means I dont have one in my cluster, ok now that we are on the same page. I have 4 wires from my Tach, Red and Black of course the obvious. Now I also have a Yellow wire(which as described in directions belongs to my battery), and also have the infamous GREEN wire, now this is where my troubles begin. I can hook up my other 3 wires, but am not sure on how, or even where Im going to need to hook up my green wire??????? I mean it says an sucessful ignition wire, but Im not sure how to tap in or exactly where to do all this. Ok so Im not sure where my coil is at? so can someone please enlighten me on how I need to go about this proceedure???


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 583
Registered: Jan-06
sucessful ignition wire this is ACC aka RUN wire,in your car the color of this wire is PINK,now,you can hook it straight to ignition lock or cig.lighter,GET for your self tester,just turn key to run or acc position and check if it's hot,then turn off and check it if it's cold.
Open hood,find a sparkplug,now if you see 4 FAT wires,look to the other end of this wires,have to be like box made from hard plastic/this is it..COIL/.On a COIL find plug with thin wires and go by schema

do not forget to check which motor you got 2.2L or 2.4L
application/x-zip-compressedUpload
chevy caval.1998 2.2 L and 2.4 L ...zip (47.1 k)


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 584
Registered: Jan-06
justin Blake bentley
S10 radio
application/x-zip-compressedUpload
chevy 1991 S 10 radio.zip (11.5 k)


Bronze Member
Username: Icexx99

Post Number: 15
Registered: Jun-06
what color is the vss wire on 99 mustang


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 586
Registered: Jan-06
Chris,rear signal output wire,do you meaned: back up lamp or reversing? if yes, this the schema,the wires what you need it,I highlighted for you in pink color..
application/x-zip-compressedUpload
ford mustang 1999 for avic navigation.zip (32.9 k)


New member
Username: Josh_jc

Post Number: 1
Registered: Aug-06
mike,
my gf had her deck stolen out of her 1996 Chevrolet Cavalier, so i am trying to put in a new one for her. I followed all of the instructions and no sound is coming out of the speakers. when i got done with the what the directions said there was still a few wires left over in the car and a blue and white one out of the deck. it is a jvc cd player. For some reason when i put the brown wire in the car and the blue and white wire together it works, but once i turn it off and turn it on again it doesnt work. I tried putting the two wires together but it only works if i just tap the two wire together when it turns on. Could u tell me what the problem is and possibly send me a wiring diagram of the car?
Thanks,
Josh


New member
Username: Josh_jc

Post Number: 2
Registered: Aug-06
mike,
my gf had her deck stolen out of her 1996 Chevrolet Cavalier, so i am trying to put in a new one for her. I followed all of the instructions and no sound is coming out of the speakers. when i got done with the what the directions said there was still a few wires left over in the car and a blue and white one out of the deck. it is a jvc cd player. For some reason when i put the brown wire in the car and the blue and white wire together it works, but once i turn it off and turn it on again it doesnt work. I tried putting the two wires together but it only works if i just tap the two wire together when it turns on. Could u tell me what the problem is and possibly send me a wiring diagram of the car?
Thanks,
Josh


Silver Member
Username: Leew

Ketchikan, ALASKA USA

Post Number: 587
Registered: Jan-06
Hello Josh johnson.
If you cannot connect your JVC HU,so ,please give me a clue,which wire for what is coming out from your JVC then I can tell you exactly to where and what connect .
BTW. this the schema what you asked
application/x-zip-compressedUpload
chevy caval 1996 with out amp radio.zip (54.3 k)
« Previous Thread | Next Thread »

Facebook

Shop Related Deals

Directory

Main Forums

Today's Posts

Forum Help

Follow Us
