Box help



Silver Member
Username: Drsmith

Montana USA

Post Number: 714
Registered: Nov-04
anyone who is good at designing boxes on here have aim i have all the dimensions i just have a couple questions about it


Gold Member
Username: Drivingreckless

Near tampa, Florida United state...

Post Number: 1778
Registered: Apr-06
just post ur question
im sure we can help thru here
plus my AIM is broken


Silver Member
Username: Drsmith

Montana USA

Post Number: 715
Registered: Nov-04
ok its in a long email from the owner of AQ thats why i didnt post it cuz i figured it would be over looked


Silver Member
Username: Drsmith

Montana USA

Post Number: 716
Registered: Nov-04
This box will get loud as hell and still sound pretty good. Make your box with the following INSIDE dimensions:

Width=30.5 inches Depth=22.5 inches Height=18.5 inches Your port opening will be 5.5" X 18.5" Your port length will be 16 inches

Use one end wall of the box for your outer port wall The inner port wall will be 16 inches long and 5.5 inches from the inside surface of the outer port wall (end wall of the box)

Mount your sub near the middle of the box equal distance between the inner port wall and the opposite end of the box. Your sub will face up and your port will face the rear. The rear face of the box should be approx 12 inches from the rear of the vehicle. Move your box back and forth until it hits the best. I think your setup will be louder if you mount your sub facing the rear but you shouldn't do that if you're inverting your sub.

Your box will be 6.25 cubic feet AFTER port and sub displacement

Your gross box volume will be 7.35 cubes BEFORE port and sub displacement

Your box will be tuned to approximately 40 Hz

Your sub will play well below box tuning so don't worry about the low notes


Gold Member
Username: Drivingreckless

Near tampa, Florida United state...

Post Number: 1779
Registered: Apr-06
wuts ur question???
ROFL:-O


Silver Member
Username: Drsmith

Montana USA

Post Number: 719
Registered: Nov-04
i'm gettin to it lol, your just to anxious to help out lol

in the email it says all that with port facing the rear and the sub up will it change anything if i have the sub face the back,

also how do i make a pic of it with sketch up, or could someone do it for me unless its a lot of work, i just cant figure out


Silver Member
Username: Drsmith

Montana USA

Post Number: 730
Registered: Nov-04
bump


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 3379
Registered: Mar-04

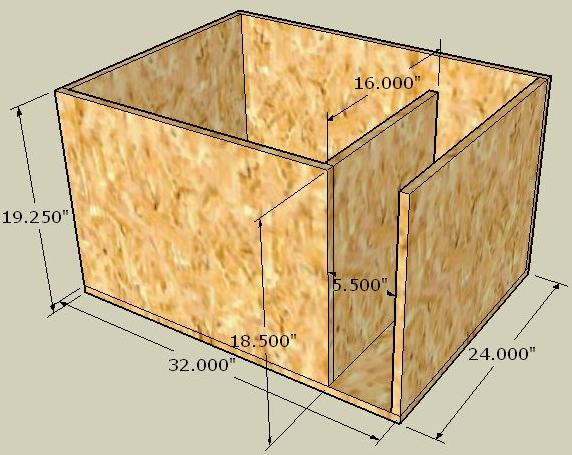

here is what the box would look like:

Upload
