Box Building Help (rovin,muddy,chad lee) Anybody
|
Silver Member Username: Extremesound1Coventry, RI United states Post Number: 212 Registered: Mar-06 | For 1 15in kicker comp vx. going into a blazer. i want it prted its 1000wrms 3.0 to 5.0 cuft box never made one before need help its for sql but more spl |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 3118 Registered: Mar-04 | try 4.25cuft tuned to 35hz. sub firing up, port back. if it will fit...build the box 33.5"x18"x18" w/ a 16.5"x3.25" port 23" deep. |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 3119 Registered: Mar-04 | that will give you ~4cuft...not 4.25cuft, but it would be a good box. |
|

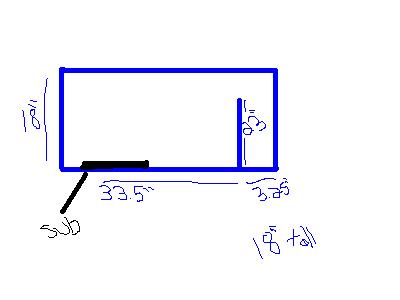

Silver Member Username: Extremesound1Coventry, RI United states Post Number: 213 Registered: Mar-06 | it will fit i can go 36x19x19 maybe 20x20 and still be able to see out the back what do u mean by 23"deep like this and what is the 16.5 for  like this... |
|
Gold Member Username: RovinTrinidad & T... Post Number: 8866 Registered: Jul-05 | y dont u use this http://www.subwoofertools.com/forum/ported-box.asp?Ew=22&Eh=15&Dia=6&Xmax=18.2&V d=.071&NumW=1&Vb=1.7&Fb=32&Qts=&Vas=&Fs=&CE=0 ... |
|
Gold Member Username: BestmankindLos Angeles, CA USA Post Number: 4859 Registered: Oct-05 | marshall's idea is very cool. not to mention rovin's idea too. i've seen people with subs firing up and ports firing back in a suv and they sound nice. |
|
Silver Member Username: FrkkevinLake Worth, Texas US Post Number: 438 Registered: Nov-05 | I've seen best gains for SUVs with the subs firing up and port to the back. The two latest installs I've heard like this were two RE XXX 12"s and 2 SI MAG 12"s.. Both systems were hitting high 149s |
|
Silver Member Username: Extremesound1Coventry, RI United states Post Number: 214 Registered: Mar-06 | i want to go big with the box and it is a 15in. ill do it up. but bigger atleast 4.0 to 5.0 cuft. rovin and chad lee.!!!!!! |
|
Silver Member Username: Extremesound1Coventry, RI United states Post Number: 215 Registered: Mar-06 | sorry and make it on that wesite if u can!!!! dont know how to use correctly |
|
Silver Member Username: John_washNashville, Tennessee Post Number: 469 Registered: Dec-05 | http://www.subwoofertools.com/forum/ported-box.asp?Ew=30&Eh=20&Dia=9&Xmax=12.5&V d=.14&NumW=1&Vb=4.5&Fb=32&Qts=&Vas=&Fs=&CE=0 |
|
Gold Member Username: BestmankindLos Angeles, CA USA Post Number: 4866 Registered: Oct-05 | go bigger. i have mine in a 6.5 cuft. |
|
Silver Member Username: John_washNashville, Tennessee Post Number: 470 Registered: Dec-05 | i failed to realize he said comp "VX" and not "VR" lol. well how about this http://www.subwoofertools.com/forum/ported-box.asp?Ew=32&Eh=20&Dia=9&Xmax=17.4&V d=.14&NumW=1&Vb=6&Fb=35&Qts=&Vas=&Fs=&CE=0 |
|
Gold Member Username: Basshead86Google is your Friend, FL Post Number: 4638 Registered: Aug-05 | what marshall, chad and rovin said |
|
Gold Member Username: James1115Ct Post Number: 6209 Registered: Dec-04 | Hey DD naz! get on! |
|
Silver Member Username: Extremesound1Coventry, RI United states Post Number: 216 Registered: Mar-06 | can i make it 36in wide so it can slide in, will that doing anything to the box. or are those boxes for the sub pointing up...firing up thanx for the help i finally get it... pix will come soon....thanx again |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 3132 Registered: Mar-04 | http://www.subwoofertools.com/forum/ported-box.asp?Ew=36&Eh=18&Dia=9&Xmax=20&Vd= .15&NumW=1&Vb=4.25&Fb=35&Qts=&Vas=&Fs=&CE=0 that would be a perfect fit...mount the sub firing up w/ the port back on the drivers side. |
|
Gold Member Username: BestmankindLos Angeles, CA USA Post Number: 4873 Registered: Oct-05 | i would do 2 6inch aeroport for that box. sub on top with 2 6 inch aero in the back. the ports would have to be kinda long so i would have them stick out a little. |
|
Silver Member Username: Extremesound1Coventry, RI United states Post Number: 217 Registered: Mar-06 | so marshall the port facing me. Towards me..and the sub up thanx !!!! LOOKIN GOOD |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 3134 Registered: Mar-04 | yes...when you open the back of the blazer you will see a port facing you on the drivers side and the sub should be firing up (centered on the box will be ok) |
|
Gold Member Username: RovinTrinidad & T... Post Number: 8869 Registered: Jul-05 | now thats a damn good plan by Marshall ..... |
|
Silver Member Username: Extremesound1Coventry, RI United states Post Number: 218 Registered: Mar-06 | alright thanx again, know to make the box ill take pix to make sure im doing it right. |
|
Silver Member Username: Logan__tilleHamilton, Indiana United states Post Number: 708 Registered: Feb-06 | i cant wait to see it, what amp are you using? |
|
Silver Member Username: Extremesound1Coventry, RI United states Post Number: 220 Registered: Mar-06 | The hifonics bxi1206d @1ohm |
|
Silver Member Username: Logan__tilleHamilton, Indiana United states Post Number: 714 Registered: Feb-06 | that should be just about right for that sub... |
