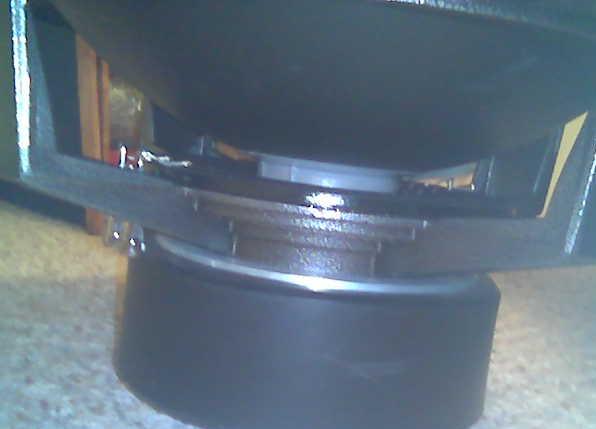

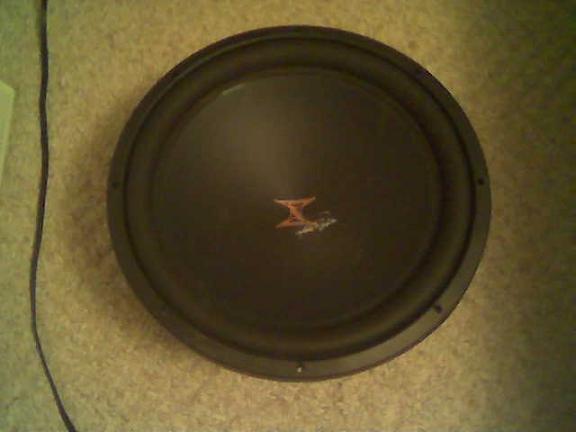

well I got it today. Took some pics tell me what you guys think. Ohh and the last pic is of the box I plan to build for it tommorrow tell me what you all think of that too....Will it pound in there??
what else do u wanna see??? lol...and what about that box...it will be my first one so i just wanna make sure I get it right...If I can get some feedback about it Ill start it tommorrow and get some pics up of the process of me building the box.
I wouldn't do that kind of box..I would go with a slot port...I made a box like that for my mojo and I just had a guy build me a slotted port box and its way better!! way louder...u want to make sure u got your box right cause it can make your sub sound like crap or like god!!
here ya go...some more pictures...now someone please tell me what they think of the box plan and the reason I am doing it with the pvc ports instead of a slot port is to save space
does port area really make a difference in the sound . if the ports are short enough it should have the same tuneing frequency as a big port thats longer
ok...well heres what I just came up with quick...ill give the sub 3.4 cubes. tune the box to 31.5hz. the ports will have to be 26.25 inches long and I will have 3 of the 4" ones. This gives me external dimensions of the box of 17x15x36 what do you think of that. It will give me more area. I looked on another site and it said I should have at least 10.5 sq. in. of port area...so you are right.... Do you think my new box plan is better??
i would do one 6" port instead of two 4" ports. i would also try to give it a bigger box and tune it below 30hz. the 15" rl-p i heard was in a 3.3 cu ft box tuned to 33hz and i thought it sounded kinda loose and floppy.
well too late...the box is built...well in the process....still need to cut the sub and port holes... the external dimensions are 36 wide 17 high and 15 deep and I used 3/4 inch MDF....it doesnt look that great but once I cover it w/ carpet I think it will turn out pretty nicely...I will post pics soon as it Is complete. I am still planning on doing the 3 4 inch ports and maybe I wil do them 28 inches long which will give me 31hz tune.....I cant go ne longer than that....and that was as big as I could make the box to get it in my trunk...this is going to be hard enough....
