[...Rovin...] & .B.
|
Silver Member Username: Talon_es93Post Number: 312 Registered: Mar-06 | i wanna make a box that 2.25 cu ft....i need it to be 14" tall with the port 12.5" tall and 3" wide and 20.5" long...idk how wide to make it or how deep... this is gunna be for a CVR 12"...this will be using the manual... it says...2.25 cu ft. 63.7L + port displacement 3" x 12.5 port 20.5 long (7.6cm x 31.8cm port, 52.1cm long) power handling=300RMS.......so if anyone can tell me how wide and deep to make it it will help alot...or if you have a nice design for this plz let me know...thanks...(3/4 board will be used)... |
|
Silver Member Username: Talon_es93Post Number: 315 Registered: Mar-06 | http://www.subwoofertools.com/forum/ported-box.asp?Ew=16.25&Eh=14&Dia=6&Xmax=.49 8&Vd=.07&NumW=1&Vb=2.25&Fb=40.745&Qts=&Vas=&Fs=&CE=0 would this work 4 what i am lookin 4? |
|

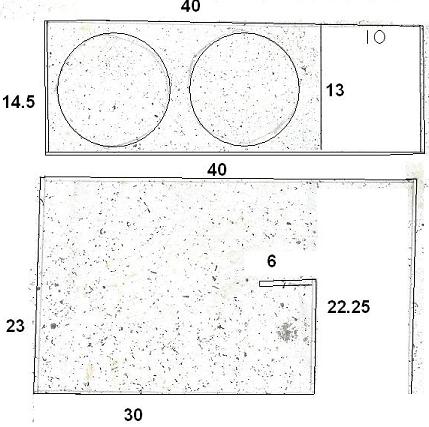

Silver Member Username: Talon_es93Post Number: 316 Registered: Mar-06 |  or would this box work better?   curent box |
|
Gold Member Username: James1115Ct Post Number: 6034 Registered: Dec-04 | yup that will work, or you can do 14x14x30, it will give you some more room to account for port on the front baffle. |
|
Silver Member Username: Talon_es93Post Number: 317 Registered: Mar-06 | u think i can wit a 3" wide por on a 14x14"? |
|
Gold Member Username: James1115Ct Post Number: 6036 Registered: Dec-04 | yeah why not you are just gonna have to make up the port length in the width which is no big deal. |
|
Gold Member Username: RovinTrinidad & T... Post Number: 8363 Registered: Jul-05 | er -how did u put 0.489 as the xmax in that calculator ?... |
|
Silver Member Username: Talon_es93Post Number: 318 Registered: Mar-06 | well what box would work best to get me a few more db b/c right now i'm only doin 127 and i ain't to proud. and whats about this highest db u have hear some one get with these subs? |
|
Gold Member Username: James1115Ct Post Number: 6041 Registered: Dec-04 | your not going to gain all that much in a daily driver application. |
|
Gold Member Username: RovinTrinidad & T... Post Number: 8365 Registered: Jul-05 | i cant give u a db answer also i noticed u r tuning 40hz - hmm personally i dont care 4 tuning above 36hz but thats just me ur xmax should be whole digits like 17/18/19/20 - how did u come up with .489 ?! ,thats weird !..... |
|
Silver Member Username: Talon_es93Post Number: 319 Registered: Mar-06 | in the manual i think... what would it be for a CVR? |
|
Gold Member Username: CenusHicksville, Ohio Usa Post Number: 1974 Registered: Jan-05 | i think the xmax on the cvr is 12mm but im not positive. |
