New box



Gold Member
Username: Jakeyplaysbass

St. Louis, MO

Post Number: 1117
Registered: Jul-05
2 ED nine.1s...back ordered:-(
4 ED 16ov.2 dual 4s...here before friday:-)

the 4 subs are firing up with the port firing back. the top is going to be double thick and most likely the side with the port as well. 2 support braces in the box...not sure where yet.

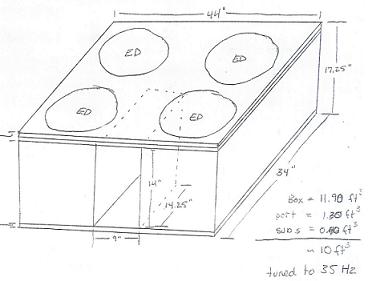

box dimensions are 44" wide, 17.25" tall, and 34" deep. all in one shared chamber. 11.90cuft before displacement...right at 10cuft after.

1 huge slot port down the middle thats 9" wide, 14" tall, and 14.25" deep. tuned to 35hz with 126 square inches of port.

on the computer it said between 154-156dB.:-)

Upload

not bad for under $2000. haha



Gold Member
Username: Rovin

Trinidad & T...

Post Number: 8068
Registered: Jul-05
interesting - so what programme u used 2 come up with that design ?.......


Silver Member
Username: Tweeker

Post Number: 211
Registered: May-06
so i take it two wasnt enough lol. good thing you decided on 4 cause man that sh!t is gonna hit LOUD


Gold Member
Username: Jakeyplaysbass

St. Louis, MO

Post Number: 1120
Registered: Jul-05
my local audio store called ED and they worked out some specs for it. i origionally wanted 2 ports but because of width issues in my car we decided that 1 huge one was the way to go.


Silver Member
Username: Northomaha

Post Number: 124
Registered: Mar-06
what program did you use to calculate the dbs?


Gold Member
Username: Jakeyplaysbass

St. Louis, MO

Post Number: 1121
Registered: Jul-05
im not sure the name of it. the audio place did pretty much everything..ill try and find out tho.


Gold Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 4028
Registered: Oct-05
that box looks like its going to pound nicely.


Gold Member
Username: B101

Queen City, NC USA

Post Number: 3104
Registered: Sep-05
that should pound, I see u changed up on us... :-)


Gold Member
Username: Jakeyplaysbass

St. Louis, MO

Post Number: 1124
Registered: Jul-05
yeah i couldnt pass up the price on the EDs...its sort of a temp system just so i can have alot of SPL and get it all out of my system. around christmas im going to do a straight sq system.
