Box for Treo TSXs
|
Bronze Member Username: NorthomahaPost Number: 49 Registered: Mar-06 | I have two Treo TSXs DVC 2 ohm and i need to make a box tuned to 36 hz. i have tried many times but i am too stupid to figure out the ported boxes. If any one could help thatd be great. I would like to keep the chambers seperate dimensions: W= 40" D= 19" H= 17" |
|
Silver Member Username: Alex_fLawrenceburg, Ky Us Post Number: 836 Registered: Nov-05 | i could make you one for a price. |
|
Bronze Member Username: NorthomahaPost Number: 50 Registered: Mar-06 | bump |
|
Silver Member Username: Matt12490Benicia, California USA Post Number: 903 Registered: May-05 | ill help you out... let me get some plans for you real quick |
|
Silver Member Username: Matt12490Benicia, California USA Post Number: 904 Registered: May-05 | wait, what size are your subs?? |
|
Bronze Member Username: NorthomahaPost Number: 52 Registered: Mar-06 | thanks alot man, thats the only thing i have left to get before i can start BUMPIN |
|
Bronze Member Username: NorthomahaPost Number: 53 Registered: Mar-06 | 15" |
|
Bronze Member Username: NorthomahaPost Number: 54 Registered: Mar-06 | sorry bout that |
|
Silver Member Username: Matt12490Benicia, California USA Post Number: 905 Registered: May-05 | do you have a manual or know how much air space they need? |
|
Bronze Member Username: NorthomahaPost Number: 55 Registered: Mar-06 | 2.25 is what B said. I'd say anywhere from there up to 3 |
|
Silver Member Username: Matt12490Benicia, California USA Post Number: 906 Registered: May-05 | seems kinda small for some 15's. for my 12" arsenal im going 2.25. but ill get on that now |
|
Bronze Member Username: NorthomahaPost Number: 57 Registered: Mar-06 | thanks, im hopin it bumps |
|
Silver Member Username: Matt12490Benicia, California USA Post Number: 907 Registered: May-05 | do you know the driver displacement? i looked on their site and it doesnt tell you. im guessing about .2 cu. ft.? |
|
Bronze Member Username: NorthomahaPost Number: 58 Registered: Mar-06 | yea that seems to sound right, im not sure tho |
|
Silver Member Username: Matt12490Benicia, California USA Post Number: 908 Registered: May-05 | are those your MAX dimensions? because your going to get less than 2.25 cu. ft. per chamber minus sub and port displacment and 2.25 already seemed too low for a 15". have you thought about going sealed? if not can you go any bigger for the box dimensions? |
|
Bronze Member Username: NorthomahaPost Number: 61 Registered: Mar-06 | yes i can go up to 19" height and 22" deep but the width is maxed out |
|
Silver Member Username: J_baby15Kentucky Post Number: 325 Registered: Feb-06 | Want me to send you a copy of my box plans? I just built a box for 2 15" Treos and its tuned to 35hz and has 2.8 cu. ft. per chamber. My box is 41"x21"x16.5". |
|
Bronze Member Username: NorthomahaPost Number: 67 Registered: Mar-06 | oh thatd be awesome, i actually just commented on your other thread haha, but yea i would really appreciate it, my email is reminc70@ops.org Thanks |
|
Silver Member Username: J_baby15Kentucky Post Number: 329 Registered: Feb-06 | Theres a drawing in my thread. It wouldnt let me email the pic. |
|

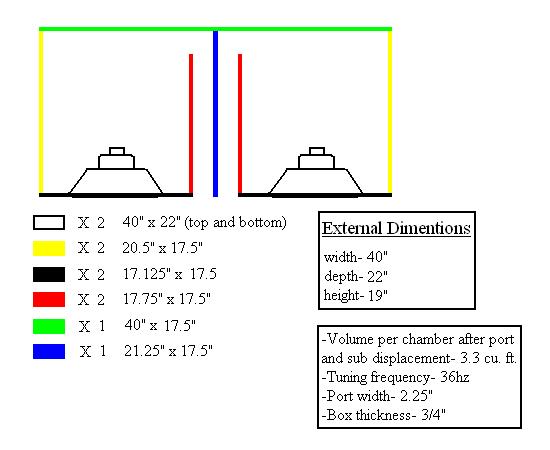

Silver Member Username: Matt12490Benicia, California USA Post Number: 913 Registered: May-05 |  |
|
Silver Member Username: J_baby15Kentucky Post Number: 331 Registered: Feb-06 | Matt-Where did u use to design that last box? I've always just had to draw it out in paint. |
|
Silver Member Username: Matt12490Benicia, California USA Post Number: 920 Registered: May-05 | i used paint and just drew it. i pretty much designed it like acceler-pedal (or whatever its called) |
|
Bronze Member Username: NorthomahaPost Number: 74 Registered: Mar-06 | thanks alot for the plans |
