I looking to build a new box for my 12" L7 Im toying with this design. It will be tuned to about ~35hz And 3.5 cf. I just got to figure all the logistics out.Port lengt, Size. (jump in if you want) Anyway, whats the diff of mounting the Sub inverted?
Thanks. BTW accalorate pedal is down I think.

Upload


Silver Member
Username: Drivingreckless

Near tampa, Florida United state...

Post Number: 452
Registered: Apr-06
http://wickedcases.com/caraudio/inverted.html

read real quik should answer ur question...


Gold Member
Username: Goatin

Ohio U.S.A

Post Number: 1078
Registered: Jan-06
looks and it gives your box a bit more air in the box.


Silver Member
Username: Van_man

Boston, MA

Post Number: 324
Registered: Mar-06
Thanks, Well now on to the math.


Silver Member
Username: Drivingreckless

Near tampa, Florida United state...

Post Number: 453
Registered: Apr-06
how long is the port....
were did u calculate this at
or is this just an overview of wut u are hoping of building??????


Silver Member
Username: Van_man

Boston, MA

Post Number: 326
Registered: Mar-06
Just an overview... I want to make it a cube to match the L7 design Im thinking ~ 18x18x18. I need to find a program or something to try and get it at 3.5cf tuned to ~35 winsled or whtevr wont run for me for some reason, and that other Pedal thing is down or busy. Zapcoe may be hogging it right now. Lol


Silver Member
Username: Drivingreckless

Near tampa, Florida United state...

Post Number: 454
Registered: Apr-06
http://www.carstereo.com/help/Articles.cfm?id=31
try this one


Silver Member
Username: Drivingreckless

Near tampa, Florida United state...

Post Number: 457
Registered: Apr-06
didnt bump!!


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 1138
Registered: Jan-06
Try with the port on the bottom running horizontal to you vehicles floor pointed to rear and sub on top the way you have it. Polo.


Silver Member
Username: Van_man

Boston, MA

Post Number: 328
Registered: Mar-06
Anyone have any input before I make yet another box. 3rd sub, 3rd box.

Upload


Silver Member
Username: Van_man

Boston, MA

Post Number: 330
Registered: Mar-06

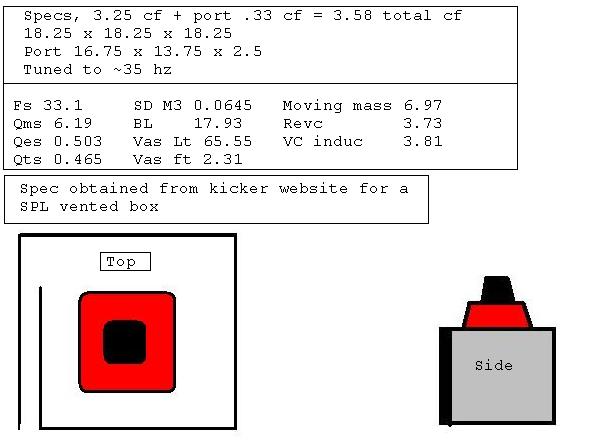

Sorry for the bump however, Is 35 a good tuning for L7 ? my current box is at 30 but I see some ppl going up to 40. What is a good daily driver setting? Thanks Does any one see errrors with my calcs? Did it by hand, couldnt find a site to just plug and play. Does any one else having trouble getting into Accped.com site.?


Silver Member
Username: Van_man

Boston, MA

Post Number: 331
Registered: Mar-06
Yea, thats exactly what I was thinking...


Bronze Member
Username: Roy_t

Post Number: 97
Registered: Feb-06
Upload
