New Enclosure



Silver Member
Username: Dankum

Post Number: 117
Registered: Sep-05
Upload
Upload
Upload

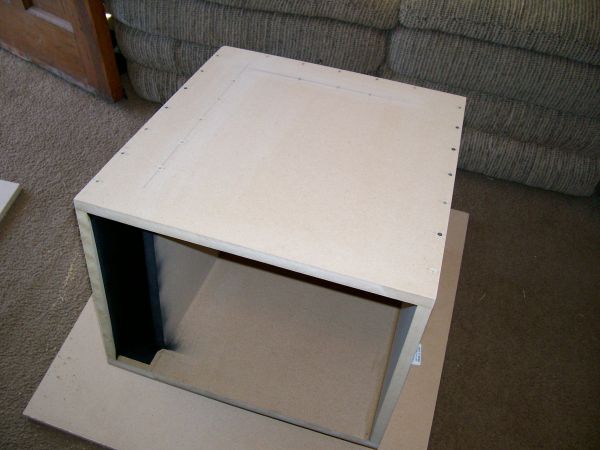

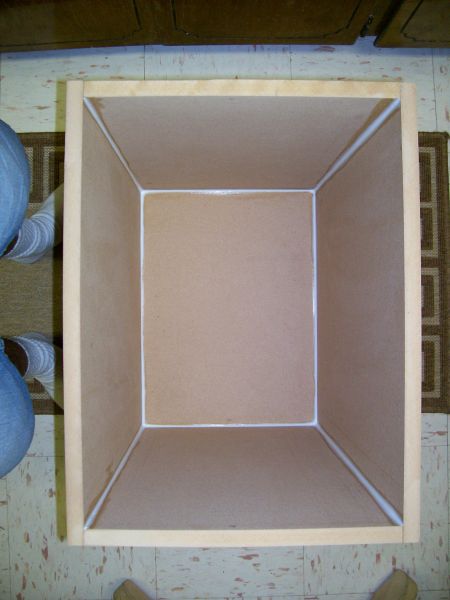

First box I have ever made. Built for Infinity 12dvq. 2cu ft, port 32hz. 2hrs prep and cut. Probably gonna be another 2hrs glue and screw. Puttin in that 1230w for now.


Silver Member
Username: Dankum

Post Number: 118
Registered: Sep-05
Or maybe I can have Harold Greenwich come over and screw it together for me. Those who got to see his post will understand.


Silver Member
Username: Matt12490

Benicia, California USA

Post Number: 738
Registered: May-05
NICE NICE NICE!!! For your first box, thats pretty dam nice


Silver Member
Username: Dankum

Post Number: 119
Registered: Sep-05
Thanx


Silver Member
Username: Dankum

Post Number: 120
Registered: Sep-05
Most of my skill came from this forum. Its been very helpful.


Silver Member
Username: Koz1031

Monticello, In United states

Post Number: 428
Registered: Jul-04
very nice box for your first 1.

But I am wondering if it would make a difference if it was top loaded insteaded of front loaded as designed. It would put the sub under the rear deck instead of facing the rear. and if the rear deck was opened up a little this may help, in my drunken state of thinking.


Silver Member
Username: Dankum

Post Number: 121
Registered: Sep-05
lol good question


Silver Member
Username: Dankum

Post Number: 123
Registered: Sep-05
Does anyone have any enclosure carpeting tips?


Gold Member
Username: Tdeaton1021

Near Tampa, Florida USA

Post Number: 2554
Registered: Sep-04
www.bcae1.com gave me enough though on how to do it myself. its really not hard if you know what to do.

check out that site and i bet you'll be like... ahhh i see lol.


Silver Member
Username: Dankum

Post Number: 124
Registered: Sep-05
subs for sale


Silver Member
Username: Dankum

Post Number: 126
Registered: Sep-05

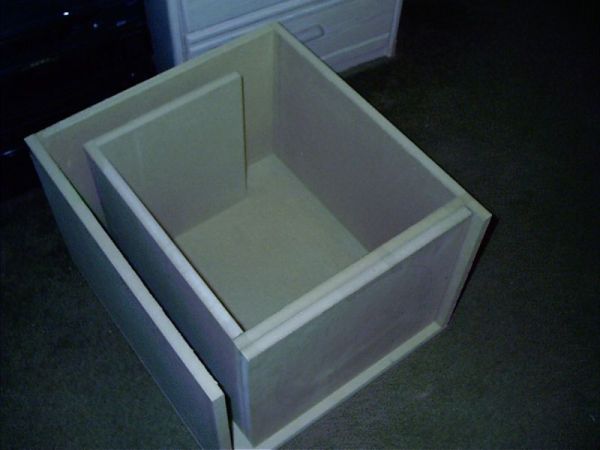

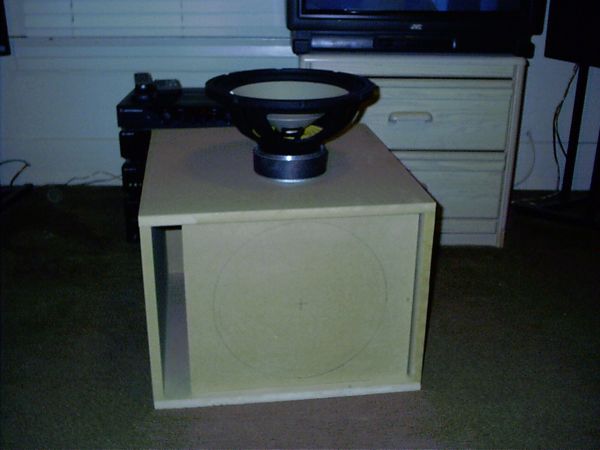

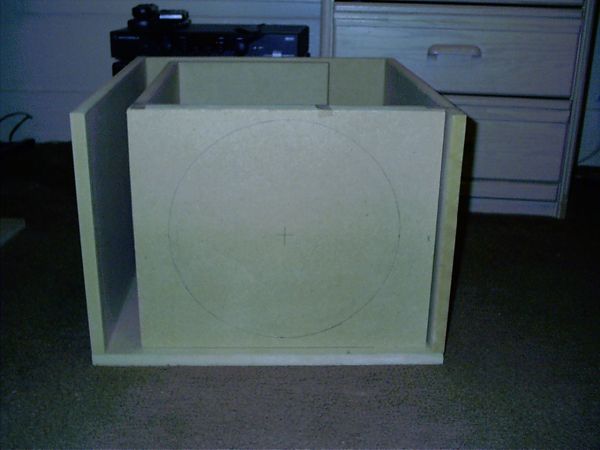

Next I will be adding the port and 2 baffles.

Upload
Upload
Upload


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 7424
Registered: Jul-05
Very Decent ! - alot better than that other crappy chip board box with a million screws ......


Silver Member
Username: Dankum

Post Number: 127
Registered: Sep-05
What is the rule of thumb on screw spacing. I put them every three inches


Gold Member
Username: B101

Queen City, NC USA

Post Number: 2497
Registered: Sep-05
:-) I like the double baffle... I need that for my subs... flexin like a mugg.

How much was all those materials???


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 7426
Registered: Jul-05
i dont think there is a "set rule of thumb" but im thinking 3" might be too close & cause the wood 2 split - i use 5" & 6" apart with LIQUID NAILS ADHESIVE which works gr8 .......


Gold Member
Username: Sploosh56

Ohio

Post Number: 1249
Registered: May-04
nice looking box


Silver Member
Username: Dankum

Post Number: 128
Registered: Sep-05
About $30-35 in materials. The second baffle is not only for extra strenght but also to recess the sub. Thanx Rovin I will remember that next time in build one.


Silver Member
Username: Dankum

Post Number: 130
Registered: Sep-05
Upload
Upload
Upload


Silver Member
Username: Nypdlapd

Post Number: 279
Registered: Feb-06
NICE!!


Gold Member
Username: Insearchofbass

Post Number: 4778
Registered: Jun-04
Here's a good example of what educating yourself and having patience can do for you. Excellent work!


Silver Member
Username: Dankum

Post Number: 131
Registered: Sep-05
Thanx
Upload
Upload
Upload
Upload


Silver Member
Username: Dankum

Post Number: 136
Registered: Sep-05
Has anyone here ever bumbed one of the Infinity 12 vq subs?


Silver Member
Username: Nypdlapd

Post Number: 283
Registered: Feb-06
wat are the meassurements???


Silver Member
Username: Nypdlapd

Post Number: 284
Registered: Feb-06
of box and port?? I WANNA MAKE THE SAME ONE

Plz tell me!!


Gold Member
Username: Basshead86

Slowcala, FL The one that...

Post Number: 2867
Registered: Aug-05
that is a very nice box.:-O


Gold Member
Username: Redliner

Wilmington, Ma

Post Number: 1413
Registered: Jun-05
im with ^^^^^^


Silver Member
Username: Dankum

Post Number: 137
Registered: Sep-05
http://www.accelerator-pedal.com/ported-box.asp?Ew=20&Eh=15.125&Dia=6&Xmax=16.5& Vd=.108&NumW=1&Vb=2.0&Fb=32&Qts=0&Vas=0&Fs=0&CE=1.5


Silver Member
Username: Dankum

Post Number: 138
Registered: Sep-05
Thats the basics, I just changed it a little to recess the sub and double baffle it.


Silver Member
Username: Dankum

Post Number: 139
Registered: Sep-05
Post pic if u build one. Its goin in the trunk of an 88' lincoln towncar. Im gonna try and make a vid clip when its bumpin.


Silver Member
Username: Nypdlapd

Post Number: 287
Registered: Feb-06
ok

post it on www.realmofexcursion.com


Silver Member
Username: Dustin3

Tigard, Or U.S.

Post Number: 870
Registered: Oct-05
is double baffling it just mean that ur addin 2 sheets of mdf to the front of the box to keep it sturdier and from not flexing?

on the front of ur box, does the front part of the square have to be in line (straight across) from the port? (if that makes sense)


Silver Member
Username: Dankum

Post Number: 140
Registered: Sep-05
u mean in the link i sent


Silver Member
Username: Dustin3

Tigard, Or U.S.

Post Number: 873
Registered: Oct-05
was that directed towards me? if so, i am looking at ur first picture where the front of the box looks to be behind the left most port. is it supposed to be even? or can the front of the box be behind the port a lil?


Silver Member
Username: Dankum

Post Number: 143
Registered: Sep-05
I extended the front of the box an 1.5" to make it like that. U cant just move it to make it even without affecting the internal vol.


Silver Member
Username: Dankum

Post Number: 144
Registered: Sep-05
On the link I posted. Add and 1.5" to the green and yellow. Add an extra .75" to the yellow and subtract .75 from the red, subtract .75 from violet and add 1.5" to top and bottom. I dont know how elese to explain it.


Silver Member
Username: Dankum

Post Number: 145
Registered: Sep-05
I used that link to find out what I wanted my basic dimensions to be. I could have just built it like that, but I did what I explained for strenght and to recess the sub.


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 7437
Registered: Jul-05
billy bob - u really used ur brains when studying how 2 build ur box & patience unlike some ppl i seen posting pix of their sh!tty made box - again good job.

But DON'T cover it with a sh!tty colored fabric like i seen others do which makes it looks SO G@Y - if u want 2 try something dif from the usually box carpet , try LAMINATE available in any hardware with TONS of colors ,textures & patterns .......


Silver Member
Username: Dankum

Post Number: 146
Registered: Sep-05
Thanx Rovin. I was gonna just carpet it grey and paint the outer baffle black.


Gold Member
Username: Young_james

Canada

Post Number: 1232
Registered: Sep-05
you should get into box building sales......great job man! :-)


Silver Member
Username: Dankum

Post Number: 148
Registered: Sep-05
I dont understand why ne one would ever buy a sub enclosure. It only cost me $35 to make this and about 6 hours total. Using very limited tools. There will be many more in the future.


Silver Member
Username: Dankum

Post Number: 149
Registered: Sep-05
my next enclosure is gonna be for an inverted sub


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 7445
Registered: Jul-05
well - a few reasons :
here r lazy azz ppl out there
some ppl have no time/patience
some have no skills/not good with their hands
others dont even own a powersaw
& others rather pay some1 2 get it done .

I NEVER have & NEVER will pay any1 2 build my boxes ....


when the Bragging section is back up - u should go put ur pics on it.....


Silver Member
Username: Dankum

Post Number: 151
Registered: Sep-05
I just got done bumpin the new box. Definitely bangs harder than a sealed enclosure. Cant wait to get that 12vq bumpin.


Silver Member
Username: Dankum

Post Number: 152
Registered: Sep-05
Upload
Upload
Upload


Bronze Member
Username: Swisher

Marianna, FL

Post Number: 53
Registered: Apr-06
looks nice except the front peice throwin it all off


Silver Member
Username: Dankum

Post Number: 154
Registered: Sep-05
not finished


Silver Member
Username: Dankum

Post Number: 155
Registered: Sep-05
Upload

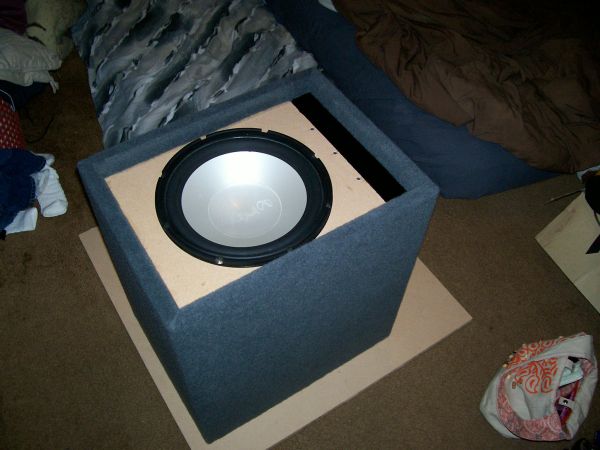

I decided to just carpet the baffle for now. Havin a little trouble gettin the second baffle lined up. Figure I should wait until I have the 12vq in the box before I finish the second baffle. Its gonna be painted black when its finished.


Silver Member
Username: Dankum

Post Number: 156
Registered: Sep-05
around what db does nose tingle start?


Silver Member
Username: Nypdlapd

Post Number: 305
Registered: Feb-06
Bump!!


Silver Member
Username: Dankum

Post Number: 157
Registered: Sep-05
bump!!


Silver Member
Username: Dankum

Post Number: 159
Registered: Sep-05

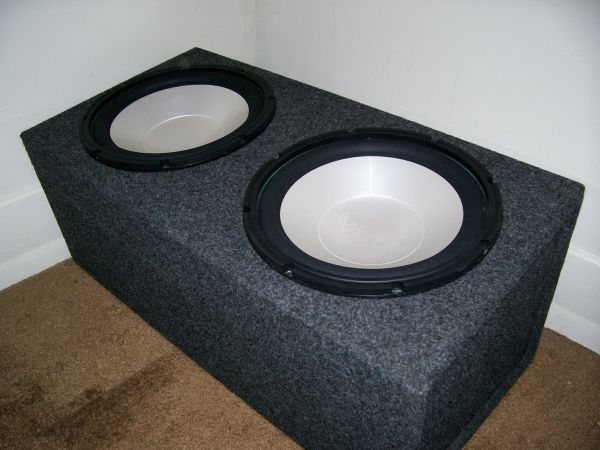

I have two Infinity 1230's in a sealed bow if ne one is interested let me know. Box is brand new, never been bumped.


Silver Member
Username: Dankum

Post Number: 161
Registered: Sep-05
Upload


Silver Member
Username: Dankum

California

Post Number: 164
Registered: Sep-05
bump


Bronze Member
Username: Kungpow

Post Number: 17
Registered: Mar-06
Nice, alot better than my first box. Can you say nails.


Silver Member
Username: Racer501

USA

Post Number: 317
Registered: Jun-05
this is a really newbe question but... what is the point of the 2 pieces of mdf?


Silver Member
Username: Dankum

California

Post Number: 167
Registered: Sep-05
I explained it already in this post. The 2 baffles r for strenght and to recess the sub.


Silver Member
Username: Racer501

USA

Post Number: 320
Registered: Jun-05
my bad billy bob i must have missed that post when i read it earlier srry about that


Silver Member
Username: Dankum

California

Post Number: 170
Registered: Sep-05
I wasnt tyrin to be rude, sorry if I came across that way.


Silver Member
Username: Racer501

USA

Post Number: 321
Registered: Jun-05
none takin man
