New box (pics)



Silver Member
Username: Fiber

Post Number: 135
Registered: Mar-06

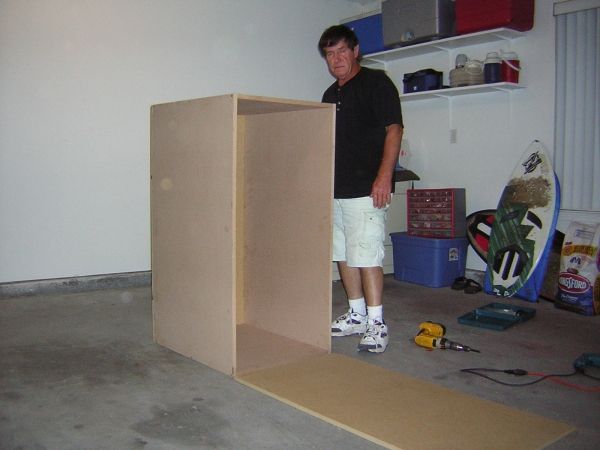

I got tired of everyone tellin me my box is to small and how much better it would be to have a bigger box I have 2 pbx 15's my new box makes them look like 10's lol here are some pics I have not finished yet my dad is helpin me out.
Upload
Upload
Upload


Silver Member
Username: Fiber

Post Number: 136
Registered: Mar-06
oh btw it's 20 cf :-)


Bronze Member
Username: Sweatyogre

PA USA

Post Number: 52
Registered: Mar-06
How old are you dude?


Silver Member
Username: Fiber

Post Number: 138
Registered: Mar-06
That's my dad im 16 he's better with cutting out the holes I did all the other cutting , and screwing in and sealing. Why do you ask?


Silver Member
Username: Joebruce

KY U.S.A.

Post Number: 338
Registered: May-04
Damn i hope your puttin that in some kind of SUV cuz theres no way it would fit in any trunk!!


Bronze Member
Username: Sweatyogre

PA USA

Post Number: 53
Registered: Mar-06
A truck, maybe?


Silver Member
Username: Fiber

Post Number: 140
Registered: Mar-06
its going in my truck taking the place of my back seat


Silver Member
Username: John_wash

Nashville, Tennessee

Post Number: 208
Registered: Dec-05
nice. thats a big a$s box u got there josh


Silver Member
Username: Fiber

Post Number: 143
Registered: Mar-06
yeah Im hoping it gets low ..... real low oh yeah. . ... ;-)


Silver Member
Username: Lbeckner

Tulsa, Ok Usa

Post Number: 978
Registered: Oct-04
did you add bracing?


Gold Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 3602
Registered: Oct-05
you gonna port that box? that box is huge. you can add a large port and your subs will pound.


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 7310
Registered: Jul-05
im ya - i too am wondering about waht kinda box design is that !?

20 cuft !? wtf

from the pix it looks like a single chamber sealed box ?........


Bronze Member
Username: Swisher

Marianna, FL

Post Number: 29
Registered: Apr-06
it does make them look like 10s


Gold Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 3606
Registered: Oct-05
looks like a small wardrobe. i can't wait til you tell us how it sounds man. looks like its going to sound deep and low.


Gold Member
Username: B101

Queen City, NC USA

Post Number: 2309
Registered: Sep-05
I too like how it looks, just port that thing, and brace good... :-)


Silver Member
Username: Baseball1187

Columbia, SC

Post Number: 660
Registered: Dec-04
yea, isnt 10cubes a little big for a 15 sealed? lol, even ported? hmm


Silver Member
Username: Jakeyplaysbass

St. Louis, MO

Post Number: 879
Registered: Jul-05
the more i look at it the bigger it seems to get. nice work


Silver Member
Username: Fiber

Post Number: 144
Registered: Mar-06

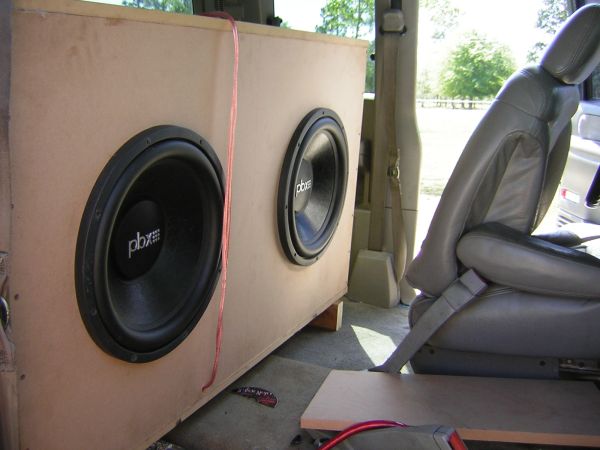

it's just a giant rectangle sealed box I am thinking about porting it but I have no skill in porting right now im checking the wiring because it seems like when it hits a high note at high volumes it distorts but when it comes to low freq notes its wild! here is a pic
Upload


Gold Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 3619
Registered: Oct-05
holy sh!t. i can't believe you got that box in there. your truck must have a huge space in the back. those subs look like babies in that box. damn. good job man.

also why don't you just turn your lpf to a lower frequency so it won't hit the high notes.


Silver Member
Username: Fiber

Post Number: 145
Registered: Mar-06
I did turn it down. the subs are MOVING alot but it is not that loud I think building this box was a waste of my time because im not impressed something went wrong maybe it's to big? or needs 2 seperate chambers I dont know anyone know anything about porting or how to make it louder please help!!!


Gold Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 3621
Registered: Oct-05
you mean you didn't separate the chamber? you should. a box that big should have 2 chambers. also if you make a large square port or make it into a slot port then that will take up some cuft in that box.

make a separated chamber. then get the cuft of each chamber. decide which frequency you want to port your box and enter it here in this site.


http://www.carstereo.com/help2/Articles.cfm?id=31


Silver Member
Username: Theweasel

Post Number: 117
Registered: Mar-06
what you should have done is got 2 more subs and put them each in a ported chamber. but whatever dude, that box is f-ing sweet!!!!!!!!


Silver Member
Username: Fiber

Post Number: 146
Registered: Mar-06
i took one sub out and turned it on with one in it and there was so much air coming out the hole and it was extremely loud


Silver Member
Username: Theweasel

Post Number: 119
Registered: Mar-06
i bet it sounded like sh-it tho. that "port" was probably tuned to like 100hz.


Gold Member
Username: Jmloughrey

Farmington, CT

Post Number: 1481
Registered: Jul-04
i still think 10cuft per sub is just too big...


Silver Member
Username: Fiber

Post Number: 147
Registered: Mar-06
these subs require a minimum of 7 cf per sub so I think it is fine they dont get that loud but they are clear as can be and when I put 2 chambers instead of one and port it I think it will be just fine but to tell you the truth I dont care about it being that loud it sounds good like it is.


Silver Member
Username: John_wash

Nashville, Tennessee

Post Number: 209
Registered: Dec-05
how many sheets of mdf did that take to build.


Silver Member
Username: Astrosafari

Delhi, Ontario Canada

Post Number: 318
Registered: Aug-05
does a bogger box make a sub louder? i have a van and 1 15, louder would ne awesome if a bigger box will help, the box im useing now isnt huge, but it sounds good. im the same as josh... no skill with poerting, so sealed is the way i go. that box is huge man


Silver Member
Username: Baseball1187

Columbia, SC

Post Number: 661
Registered: Dec-04
the box is entirely too big. 1.5-2.5 cubic feet per sub is more in line for a 15" sub, sealed. 10 cubic feet per sub is really too big even for a ported box. You can't just build a box and expect it to work... it's slightly more complicated than that. The bigger the box does not always mean better, louder, etc...


Gold Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 3639
Registered: Oct-05

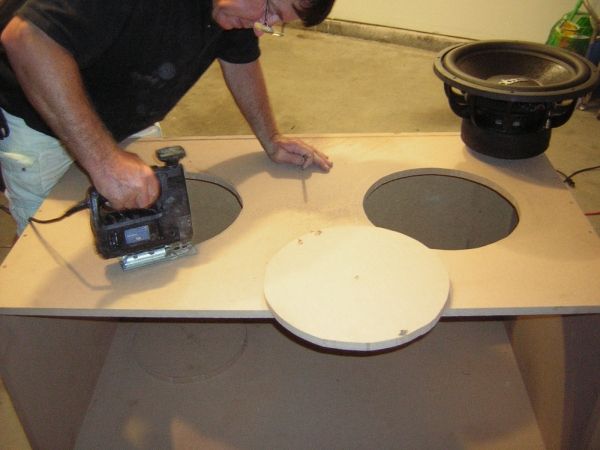

i noticed on the picture where your dad is cutting the hole out that the sub is barely on the tip of that box. you should be careful next time. that thing could of fell off.


Silver Member
Username: Fiber

Post Number: 148
Registered: Mar-06
lol I noticed that too, but I put it there just for the picture


Silver Member
Username: Fiber

Post Number: 149
Registered: Mar-06
and what is the difference in someone having a wall and a big box?


Gold Member
Username: Blainew

Post Number: 1120
Registered: Nov-05
are you 100% positive that it is sealed all the way? like airtight?

i just recently built a box for mine and there was one part that wasnt sealed so it sounded like crap. but once i sealed it it sounded good. you have to go over all the parts where the wood come together with some sort of glue. liquid nails works very well


Silver Member
Username: Alex_f

Lawrenceburg, Ky Us

Post Number: 716
Registered: Nov-05
well, i see a whole for the wires. Your are supposed to use a terminal. There is probobly an air leak because of that. BTW what kind of amp do you have?


Silver Member
Username: Alex_f

Lawrenceburg, Ky Us

Post Number: 717
Registered: Nov-05
I saw a ported box in the background. 1st pic. Is it for 15's?


Silver Member
Username: Infinity_addict

Santa Rosa, California USA

Post Number: 259
Registered: Jul-05
you might've just as well mounted them infinite baffle.

noobs: no, having a bigger box won't make your subs louder.


Silver Member
Username: Fiber

Post Number: 151
Registered: Mar-06
Yes that is a vented box for 2 15's in the background?.... I have 2 BX2005D hifonic,
Correct me if im wrong but does it take a little time for the air in the box to compress before it sounds good in a sealed box?
