How to wire a Directed 1100D amp for 1ohm???



New member
Username: Quick_94gt

Post Number: 1
Registered: Mar-06
i have two alpine type R DVC 4ohm subs wich i will be running at 1ohm, my question is: is there a specific way to bridge the directed amp? or is it like all the rest of the brigable amps? i thought this amp was a 1 channel but it has wiring imputs like a two channel, sorry im new to this and dont want to burn something...how do i get 1ohm out of the amp? a picture would greatly help. sorry i just dont know how to bridge this amp?


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2352
Registered: Mar-04
it is a 1-ch amp. it just has 2+ and 2- terminals for ease of wiring.

just wire those 2 DVC 4ohm subs in parrallel. that will give you a ohm load. (all + to + on amp...all - to - on amp)


New member
Username: Quick_94gt

Post Number: 2
Registered: Mar-06
but which + and - on the amp do i use? the far left and far right like when you normally bridge an amp?


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 6307
Registered: Jul-05

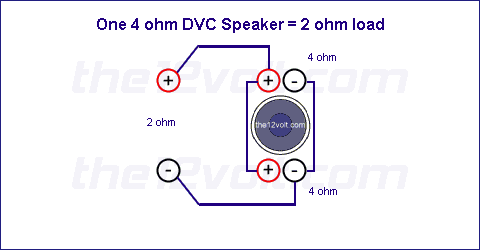

wire each sub like this & run each sub to each terminal
Upload


Silver Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 724
Registered: Nov-05
wich ever one u want mario
