Like

Is it possible to make a L shaped square port?



Silver Member
Username: Jprix82

Post Number: 144
Registered: Jan-06
Is it possible to make a L shaped square port?


Gold Member
Username: Tdeaton1021

Near Tampa, Florida USA

Post Number: 1942
Registered: Sep-04
yes


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2199
Registered: Mar-04
ya mean like this:

http://www.sounddomain.com/ride/650399/5


???


Silver Member
Username: Jprix82

Post Number: 145
Registered: Jan-06
^^Aint that a slot port Marshall?.....But i was talking about the box you had in your interchangeable port guild how the port was in the middle of the box,can you make a L shaped port like that?


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2202
Registered: Mar-04
yep...you can, infact my daily port is L-shaped.

http://www.sounddomain.com/ride/650399/1

just remember to factor in port displacment when you tune the box.


Silver Member
Username: Jprix82

Post Number: 146
Registered: Jan-06

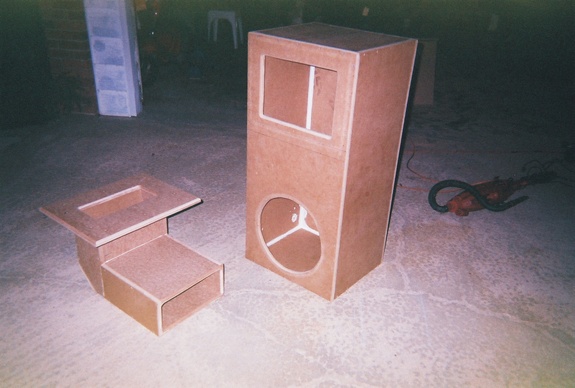

Never mind i answered my own question this is what i was talking about i found it on you page marshall.How come its not a fully shaped L?

Upload


Silver Member
Username: Jprix82

Post Number: 148
Registered: Jan-06
Never mind i answered my own question this is what i was talking about i found it on you page marshall.How come its not a fully shaped L?



Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2204
Registered: Mar-04
you talking about how its angles in the back?

i originally built the port in a true L-shape, but if wouldnt fit in the box. (lmao, dee-dee-dee)

so i just cut it and made it angled. it actually helps air flow cause it makes the port not have a 90degree turn.


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2205
Registered: Mar-04
you talking about how its angles in the back?

i originally built the port in a true L-shape, but if wouldnt fit in the box. (lmao, dee-dee-dee)

so i just cut it and made it angled. it actually helps air flow cause it makes the port not have a 90degree turn.


Silver Member
Username: Jprix82

Post Number: 149
Registered: Jan-06
What if the box had more than 1 sub would a L shaped port still work?


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2206
Registered: Mar-04
yep...just make sure you have enough airspace for both subs.

ex: 2 12's...3.75-4.5cuft net


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2207
Registered: Mar-04
and enough port area for both subs.


Unregistered guest
wats the point in a l shaped port??? does it help?


Unregistered guest
wats the point in a L shaped port??? does it help?


Silver Member
Username: Jprix82

Post Number: 150
Registered: Jan-06
2 more questions for you marshall, If i had 2 subs and put the port in the middle of the box it wouldnt matter which sub the L part faces right?...And what could i use(that i can buy online)to hold the port in that is easy to remove so i can change ports?


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2208
Registered: Mar-04
1) i wouldnt put an L-shaped port between 2 subs...put the subs on one side and the port on the other. [OO {}]

2) use t-nuts and bolts.
http://www.partsexpress.com/pe/showdetl.cfm?&DID=7&Partnumber=081-1088

look at my how-to guide on building interchangable ports.

http://www.sounddomain.com/ride/650399/6


Unregistered guest
wats the point in a L shaped port??? does it help


Gold Member
Username: Tdeaton1021

Near Tampa, Florida USA

Post Number: 1946
Registered: Sep-04
it alows the port to curve for longer port lengths


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2209
Registered: Mar-04
when the port length needed to tune a box to a certain freq. is longer than the box is deep...you can make a bend in your port to get the needed length.


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2210
Registered: Mar-04
darn you trevor :-)


Gold Member
Username: Tdeaton1021

Near Tampa, Florida USA

Post Number: 1947
Registered: Sep-04
haha! i win, yours was more in depth like usual though lol


Silver Member
Username: Jprix82

Post Number: 151
Registered: Jan-06
only reason i asked because i was thinking of building a wall of 4 12's and i wanted the port to be between the 2 front seats example-

O[]O
O[]O


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2213
Registered: Mar-04
OO[]
OO[]

:-)


Gold Member
Username: Tdeaton1021

Near Tampa, Florida USA

Post Number: 1950
Registered: Sep-04
marshal is that what you prefer or is it really bad to do that?


Silver Member
Username: Jprix82

Post Number: 152
Registered: Jan-06
thanks marshall


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 2214
Registered: Mar-04
if you have the L pointing to one sub and not to another, you may get some odd turbulance in the box.


but you could have an L port w/ the port angling up or down. (not toward either sub)

O[^]O

O[v]O


Gold Member
Username: Tdeaton1021

Near Tampa, Florida USA

Post Number: 1951
Registered: Sep-04
oh okay thanks


Bronze Member
Username: Lewass

Bloomfield Hills, MI USA

Post Number: 86
Registered: Jan-06
Or two ports that meet in the middle like this one: http://mobile.jlaudio.com/products_enclosures_pages.php?page_id=12
