Silver Member Username: Lexuscoop
Post Number: 524
Registered: Dec-05
|
Posted on when wiring dvc, do you use both slots for the + and -? like there is a total of 4 + and 4 - do you put wires in all 4 or just 2? |
Silver Member Username: Lexuscoop
Post Number: 525
Registered: Dec-05
|
Posted on anyone... i need the answer quick, i have my stuff sittin on the drivway... im doin this all now... all for or just one on each side??
|
Silver Member Username: Lexuscoop
Post Number: 526
Registered: Dec-05
|
Posted on wiring to a mono channel amp, and a 1 ohm loud, 2 subs 4 ohm dvc |
Gold Member Username: Rovin
Trinidad & T...
Post Number: 4493
Registered: Jul-05
|
Posted on ur mono amp should have 2 pairs terminals on it
2+ & 2-
take 1 of ur sub & connect both + wires into a + on 1 terminal & both - wires from that same sub into the - terminal
repeat procedure on other terminal for ur other sub ...... |
Gold Member Username: Rovin
Trinidad & T...
Post Number: 4494
Registered: Jul-05
|

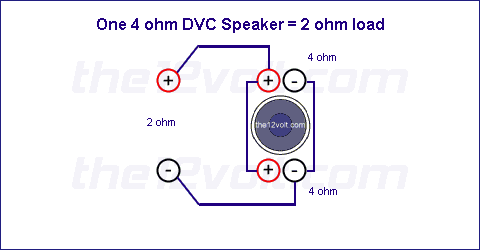

Posted on in other words both ur subs should be like this going into the 2 terminals of ur amp
when both subs connected like this go into the amp , it'll create a 1ohm load ..... |
