Two Mono Amps and a Stereo signal



Silver Member
Username: Invictuz

Seattle, Wa Usa

Post Number: 160
Registered: Jan-05
Through various tweaks and upgrades in my jeeps stereo i have a stack of RF 301m amps.

What are the drawbacks of splitting a stereo signal into two mono amps?

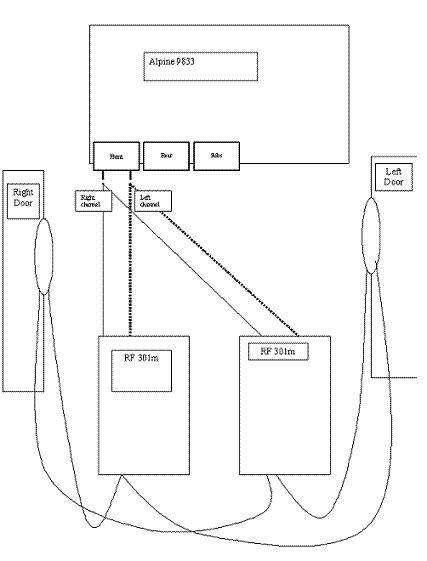

Two scenarios:
Splitting each side; right and left and sending one right and one left to each amp
Upload

or
Sending the right channel to one amp and the left channel to the other amp.
Upload




Type RF Freak
Unregistered guest
Dual mono is awesome....offers the best possible seperation....but wire it so that the signal for the right goes to one amp and the right amp delivers it's signal to the right speaker...same for left...dont cross them wires.


Silver Member
Username: Invictuz

Seattle, Wa Usa

Post Number: 166
Registered: Jan-05
thanks...after drawing up the pictures i didnt think the split signal to both amps would work...


I think that having each amp imbedded in each door so the red glow of Rockford Fosgate would be cool...just have to remove some sheet metal...and mount...and run long wires...


Gold Member
Username: Carguy

Post Number: 4753
Registered: Nov-04
You're planning to install the amp on the door panel??
Did you know that when it rains, it gets wet in there? You will cause a short and burn out the amp. Not a good move.
Why are the output wires crossed from each amp to the speakers?


Silver Member
Username: Invictuz

Seattle, Wa Usa

Post Number: 168
Registered: Jan-05
Door is sealed (found out your concern the hard way when i burned out a crossover...)

One amp is wired for left channel amplifying and one amp is wired for right channel amplifying.

So one wire runs from each amp to each speaker set.
