Hardwiring a headunit..



Dave0123123
Unregistered guest
Hi,
Could some please tell me what the wiring on the back of a AIWA CDC-X126YZ is??

Power:

- Red = Positive?
- Black = Negative?
- Yellow = ???
- Blue = Antenna power?

Speaker: (I know they run in pairs but does any one know which pair for front left,right etc)

- Green = ???
- Green with black stripe = ???
- Grey = ???
- Grey with black stripe = ???
- Purple = ???
- Purple with black stripe = ???
- White = ???
- White with black stripe = ???

Many thanks for you time!!


Bronze Member
Username: Illuminator

Post Number: 87
Registered: Apr-05

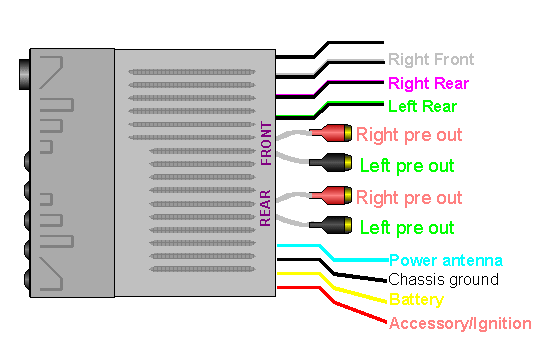

Use this:

Upload

The black stripes are negative.


Dave0123123
Unregistered guest
Just what i was after! Thank you!
